Section 728 (Starting System)
›
Removal And Installation
›
Starter Motor
›
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

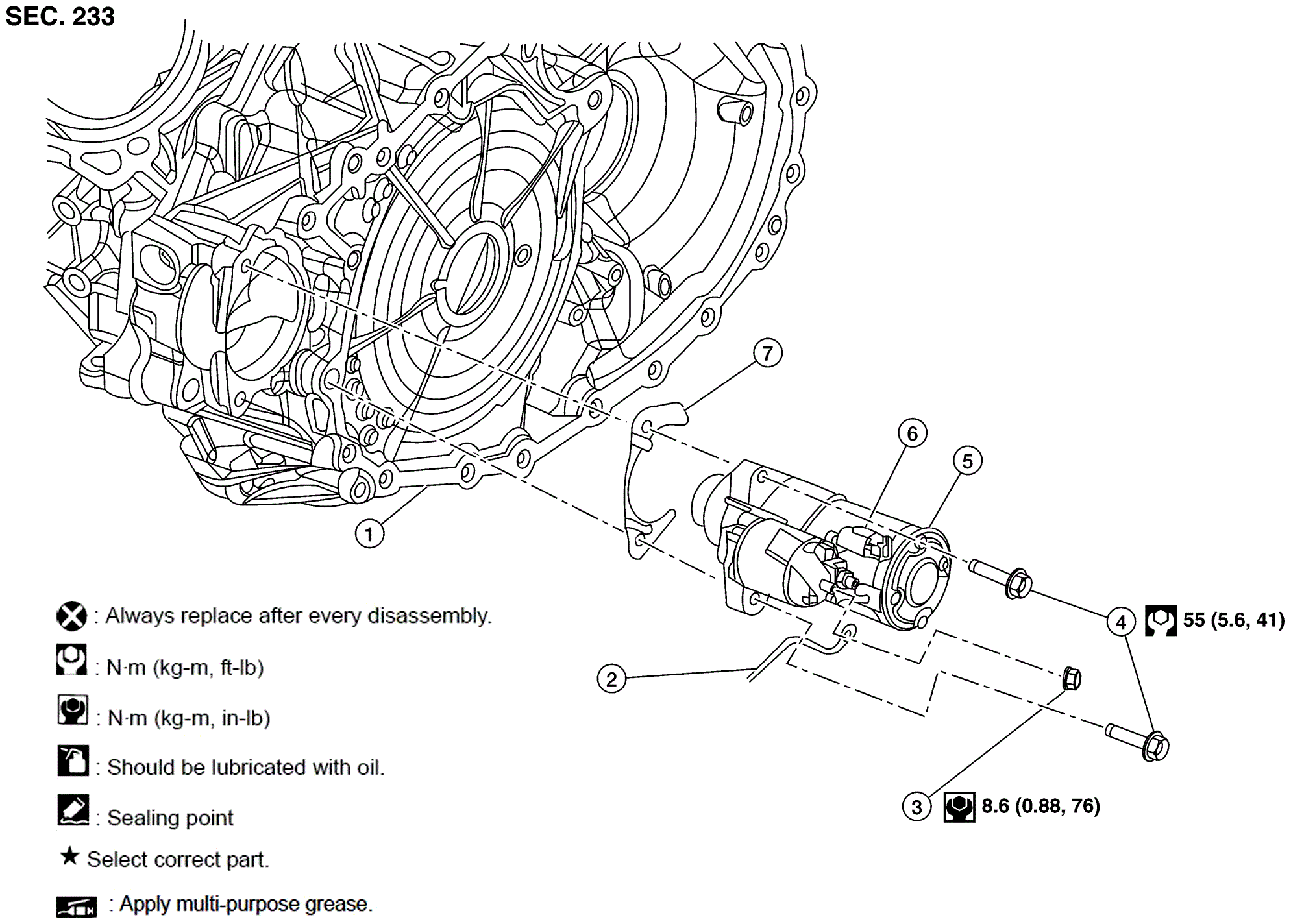

Fig 1: Starter Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Converter housing
2.
"B" terminal harness
3.
"B" terminal nut
4.
Starter motor bolt
5.
Starter motor
6.
"S" connector
7.
Shim
