Altima Base
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
SRS Airbag Control System
›
System Description
›
System
›
SRS Air Bag System
›
System Diagram
System Diagram

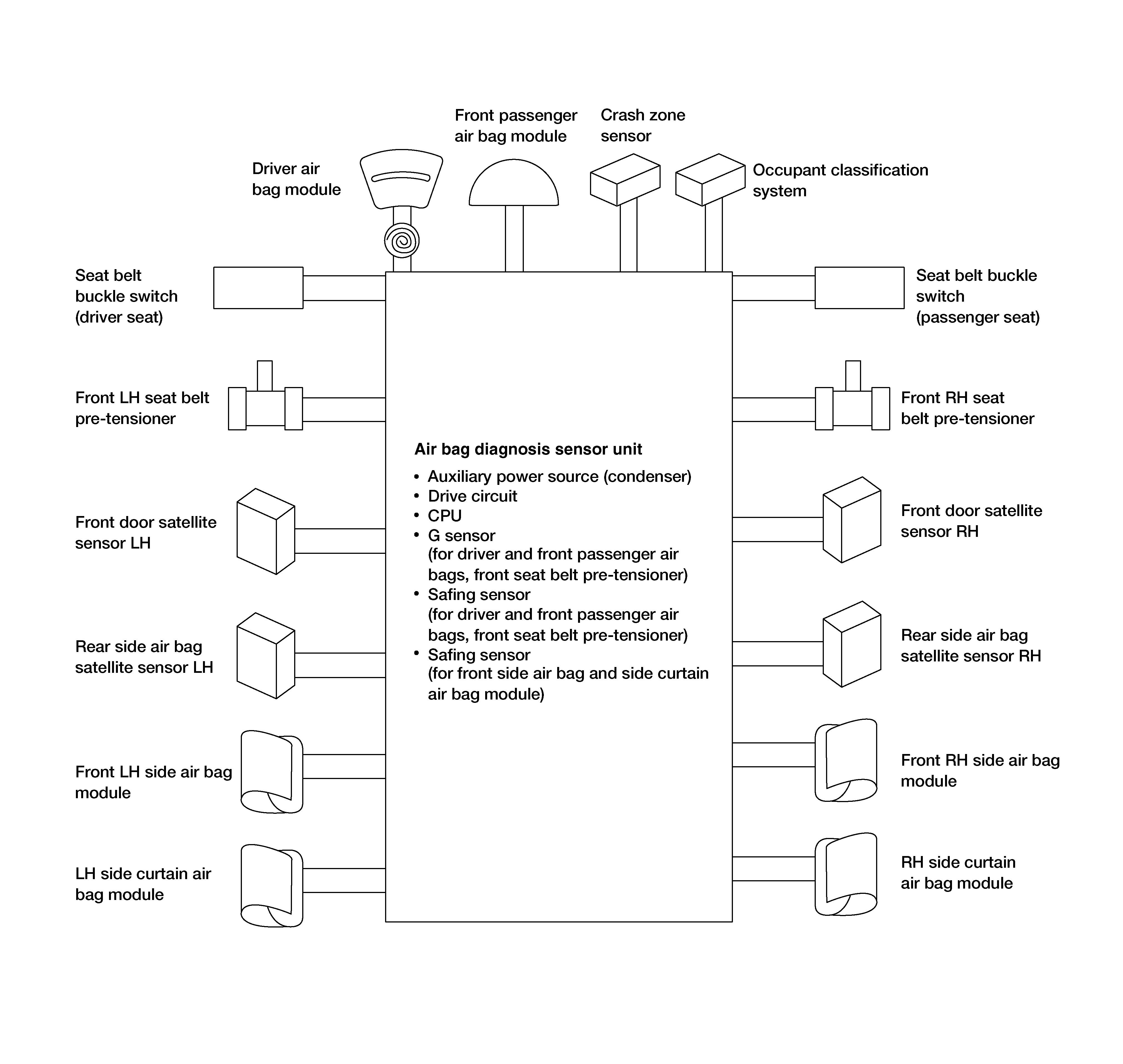

Fig 1: SRS Airbag Control System Diagram
