Component Parts Location

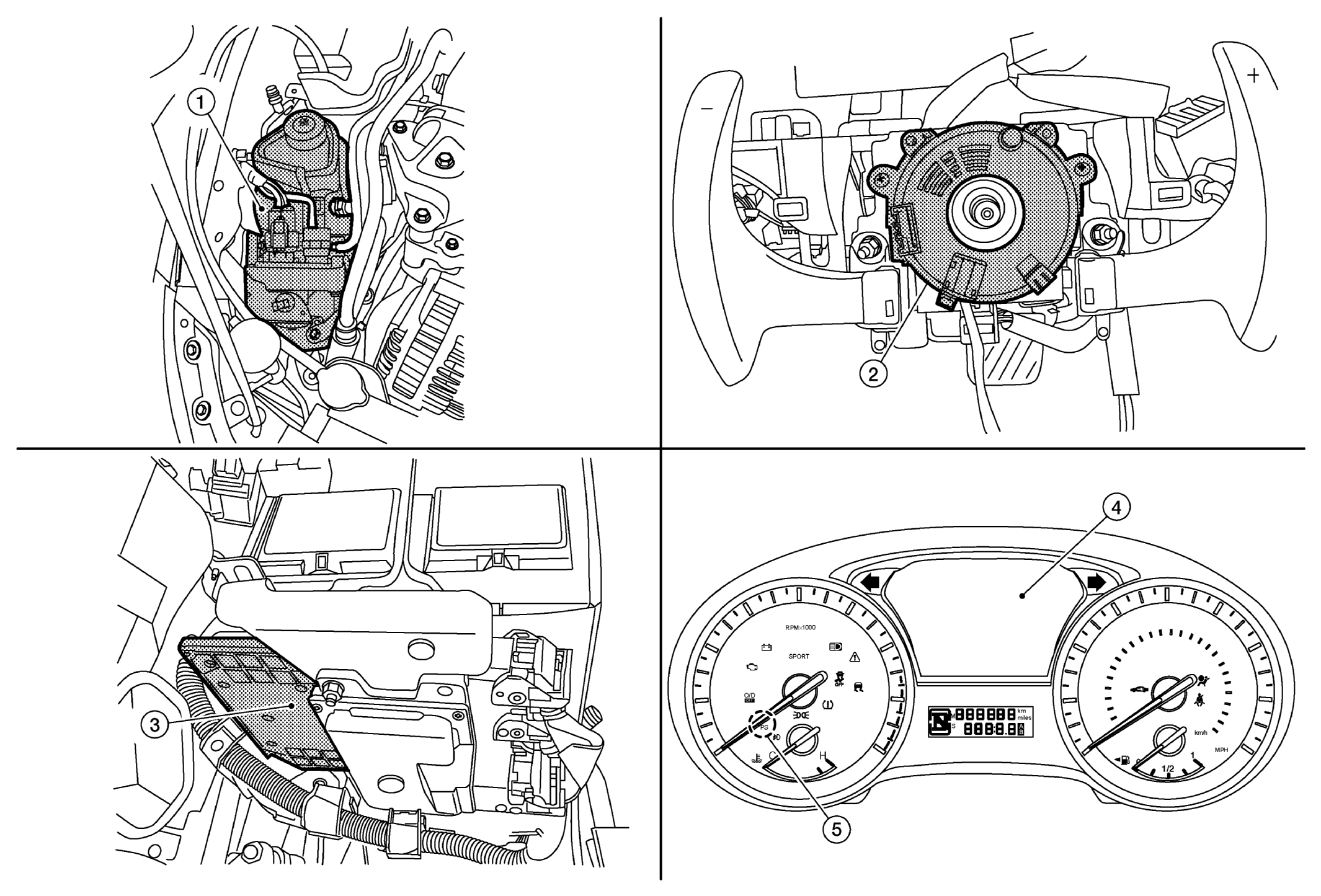

Fig 1: Steering Control System Component Parts Location
GNSAWGIA0395ZZ-395Courtesy of NISSAN NORTH AMERICA, INC.
1. Power steering oil pump assembly 2. Steering angle sensor
(view with the steering wheel removed)		 3. ECM
4. Combination meter 5. EPS warning light
