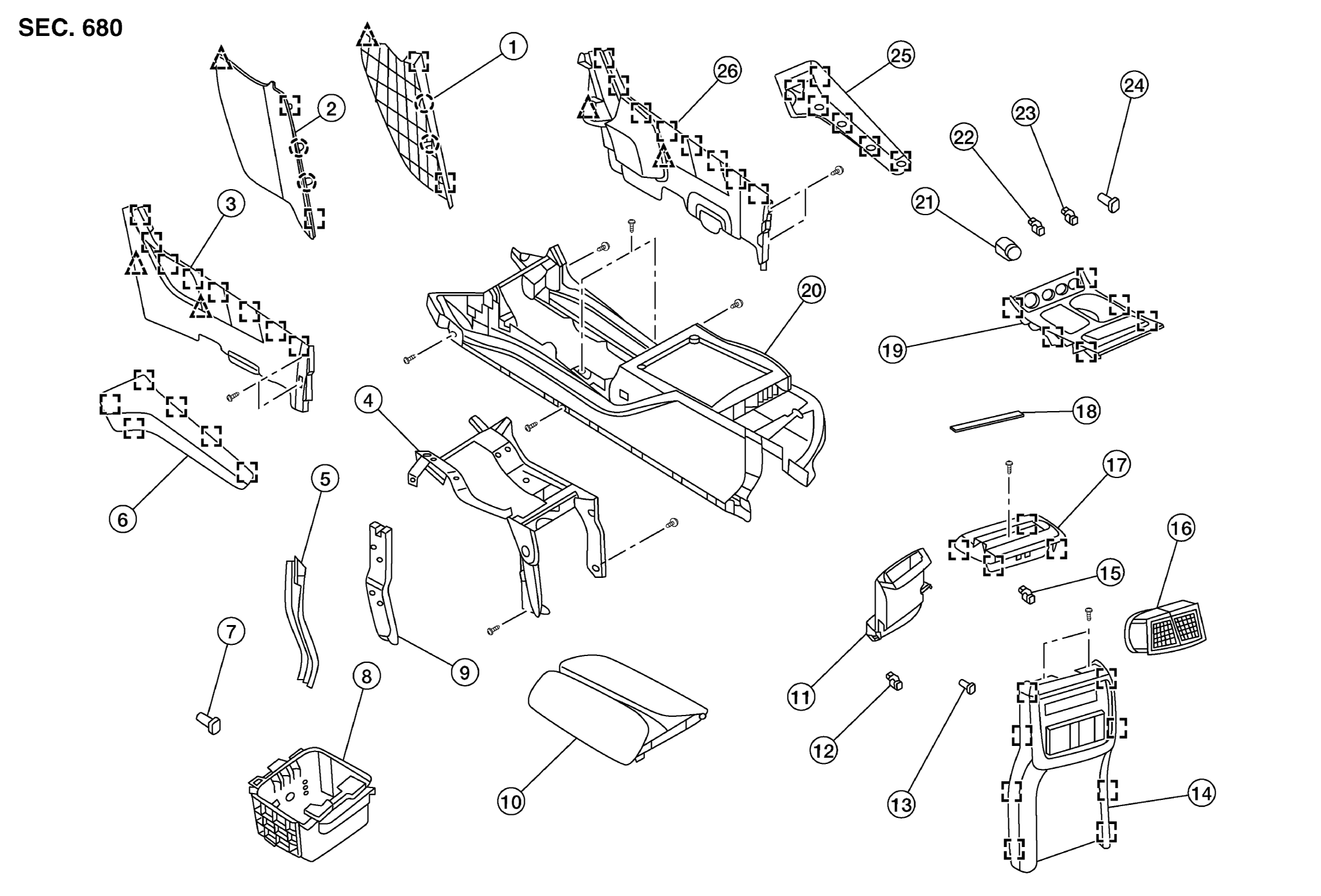

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Center Console Side Finisher (RH) | 2. | Center Console Side Finisher (LH) | 3. | Center Console Lower Side Finisher (LH) |
| 4. | Center Console Rear Brace | 5. | Instrument Stay (LH) | 6. | Center Console Upper Side Finisher (LH) |
| 7. | Console Power Socket | 8. | Center Console Bin | 9. | Instrument Stay (RH) |
| 10. | Center Console Lid | 11. | Rear Center Ventilator Duct | 12. | 2nd Row Heated Seat Switch (LH) (If Equipped) |
| 13. | Rear USB Interface | 14. | Center Console Rear Finisher | 15. | 2nd Row Heated Seat Switch (RH) (If Equipped) |
| 16. | Rear Ventilator Grille Assembly | 17. | Center Console Tray | 18. | Center Console Tray Mat |
| 19. | Shift Selector Finisher | 20. | Center Console Assembly | 21. | Push-Button Ignition Switch |
| 22. | Front Heated Seat Switch (LH) | 23. | Front Heated Seat Switch (RH) | 24. | Front Power Socket |
| 25. | Center Console Upper Side Finisher (RH) | 26. | Center Console Lower Side Finisher (RH) | Pawl | |
| Metal Clip | Clip |
