Operation Flow: Notes

WARNING: This page is about a different car, the 2016 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

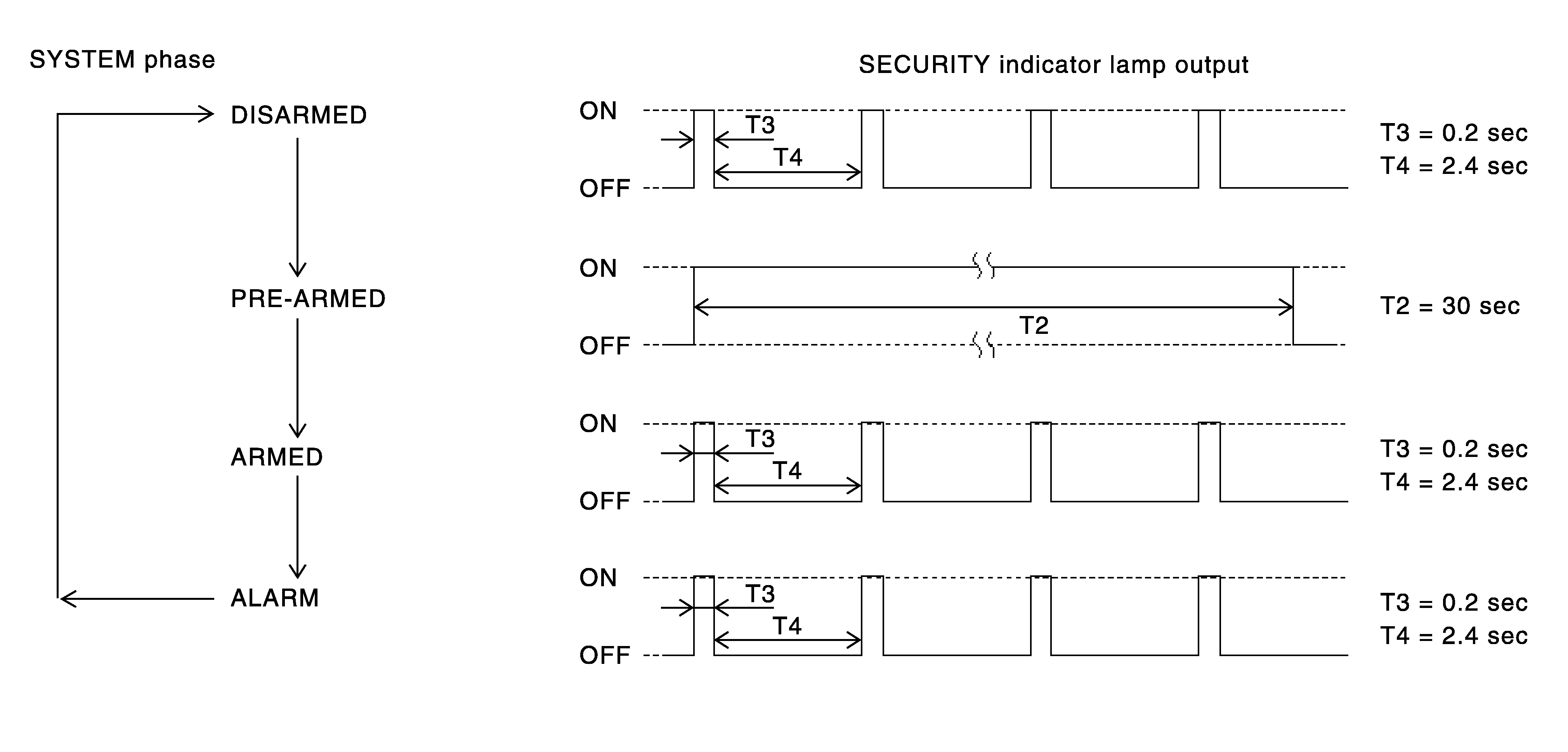

Fig 1: Identifying Security Indicator Lamp Blinking Pattern

Courtesy of NISSAN NORTH AMERICA, INC.
