Exploded View With Torque Specifications

Power Driver Seat

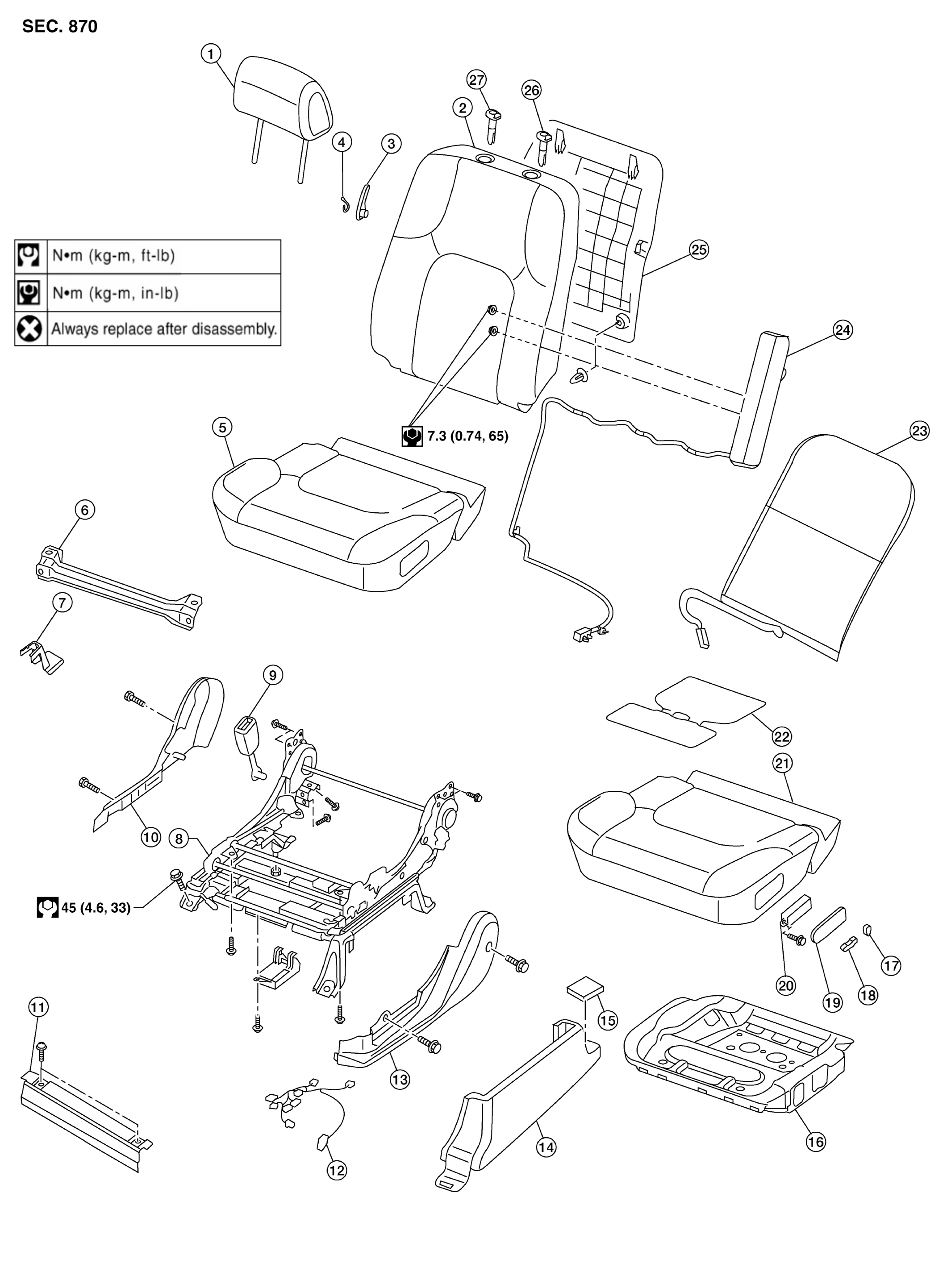

Fig 1: Exploded View Of Power Driver Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seatback assembly	3.	Lumbar support lever knob
4.	Snap ring	5.	Seat cushion trim	6.	Power seat cushion rear finisher
7.	Leg Cover	8.	Seat frame assembly	9.	Seat belt buckle assembly
10.	Seat cushion inner finisher	11.	Seat cushion front finisher	12.	Driver seat wiring harness
13.	Seat cushion outer finisher	14.	Leg cover	15.	Bolt cover
16.	Seat cushion frame	17.	Recliner switch knob	18.	Slide switch knob
19.	Power seat switch escutcheon	20.	Switch assembly	21.	Seat cushion pad
22	Seat cushion heating element	23	Seatback heating element	24.	Side air bag
25.	Seatback board (if equipped)	26.	Headrest holder with multi position lock	27.	Headrest holder

Manual Driver Seat

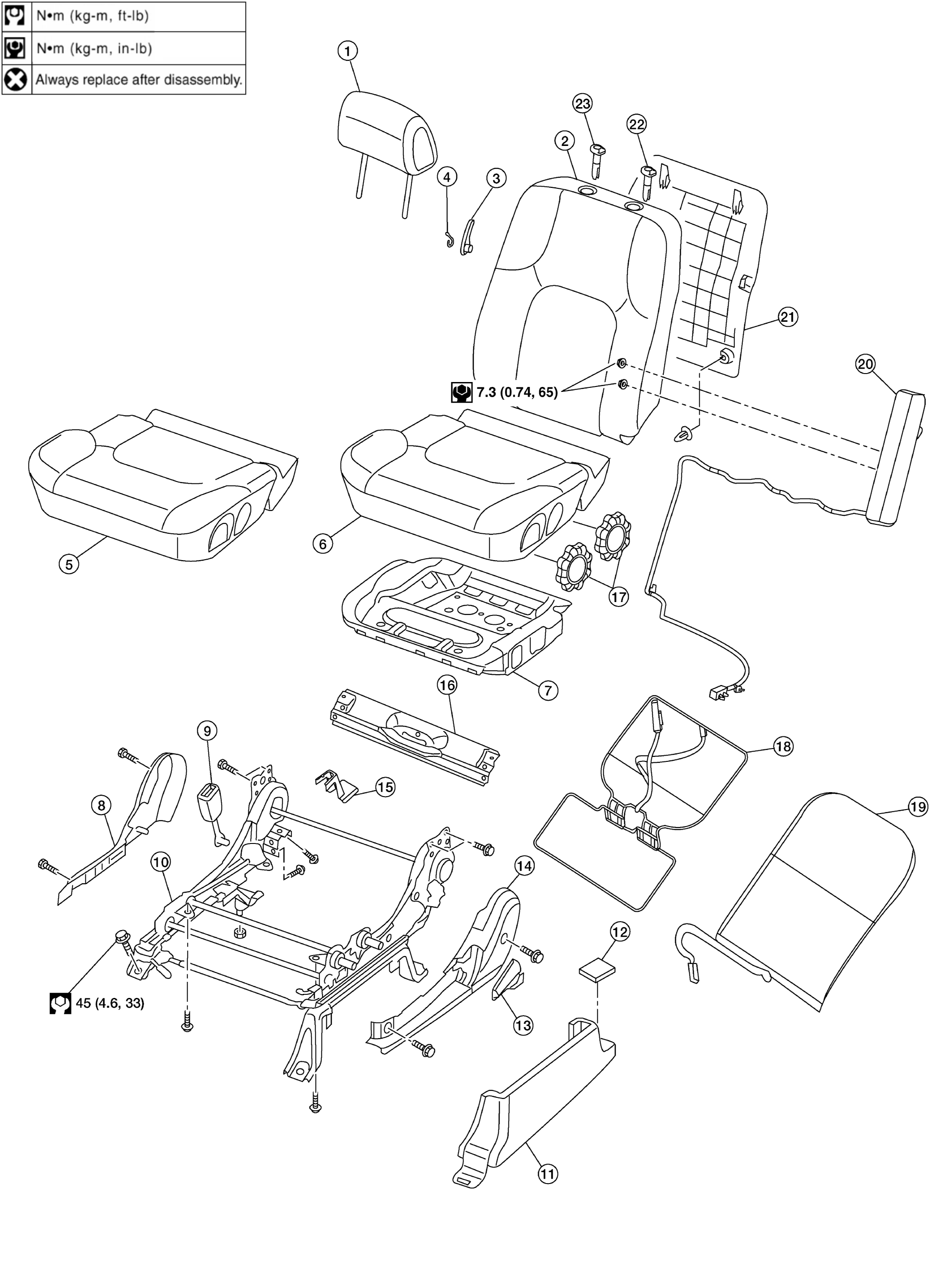

Fig 2: Exploded View Of Manual Driver Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seatback assembly	3.	Lumbar support lever knob
4.	Snap ring	5.	Seat cushion trim cover	6.	Seat cushion pad
7.	Seat cushion frame	8.	Seat cushion inner finisher	9.	Seat belt buckle assembly
10.	Seat frame assembly	11.	Leg cover	12.	Bolt cover
13.	Recline lever	14.	Seat cushion outer finisher	15.	Leg cover
16.	Seat cushion rear finisher	17.	Seat cushion lift knobs	18.	Seat cushion heating element
19.	Seatback heating element	20.	Side air bag	21.	Seatback board
22.	Headrest holder with multi position lock	23.	Headrest holder with multi position lock

Power Passenger Seat

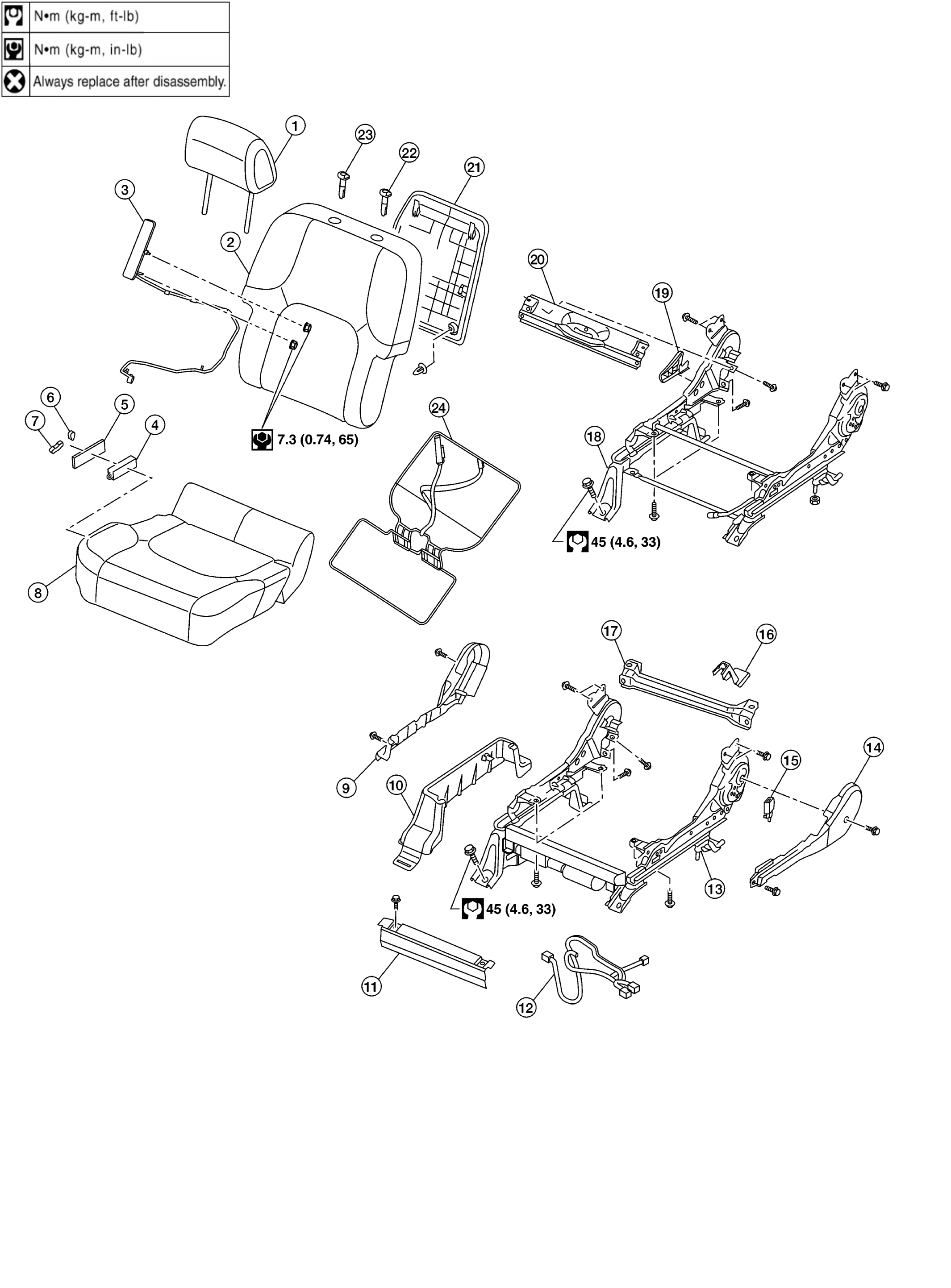

Fig 3: Exploded View Of Power Passenger Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seatback assembly	3.	Side air bag
4.	Switch assembly	5.	Power seat switch escutcheon	6.	Recliner switch knob
7.	Slide switch knob	8.	Seat cushion assembly	9.	Seat cushion outer cover
10.	Leg cover	11.	Seat cushion front finisher	12.	Passenger seat wiring harness
13.	Power seat frame assembly	14.	Seat cushion inner finisher	15.	Seat belt buckle assembly
16.	Leg cover	17.	Seat cushion rear finisher	18.	Manual seat frame assembly
19.	Recline lever	20.	Seat cushion rear finisher	21.	Seatback board
22.	Headrest holder with multi position lock	23.	Headrest holder	24.	Seat cushion heating element

Manual Passenger Seat

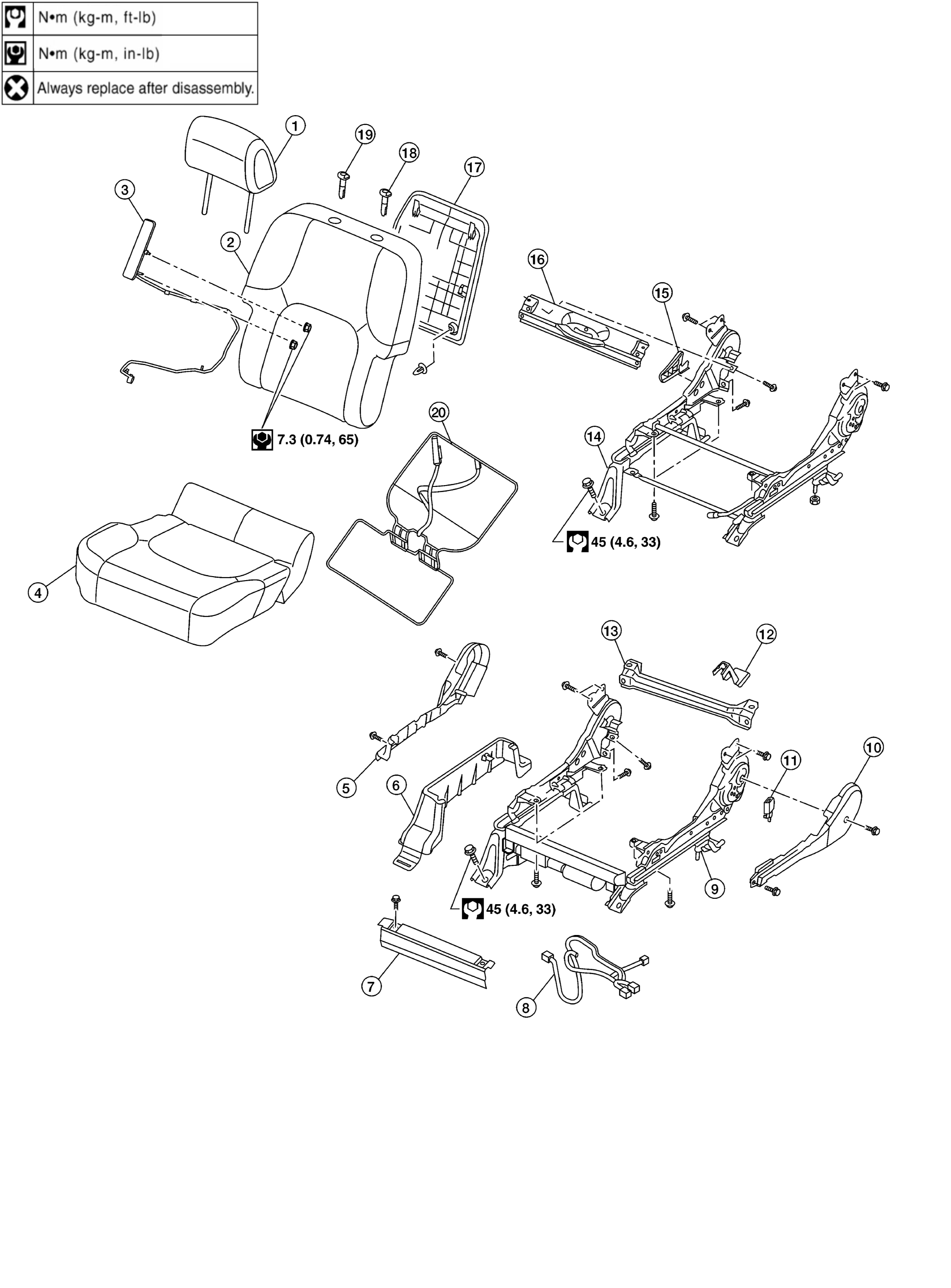

Fig 4: Exploded View Of Manual Passenger Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seatback assembly	3.	Side air bag
4.	Seat cushion assembly	5.	Seat cushion outer cover	6.	Leg cover
7.	Seat cushion front finisher	8.	Passenger seat wiring harness	9.	Seat frame assembly
10.	Seat cushion inner finisher	11.	Seat belt buckle assembly	12.	Leg cover
13.	Seat cushion rear finisher	14.	Manual seat frame assembly	15.	Recline lever
16.	Seat cushion rear finisher	17.	Seatback board	18.	Headrest holder with multi position lock
19.	Headrest holder	20.	Seat cushion heating element
