Component Parts Location - King Cab

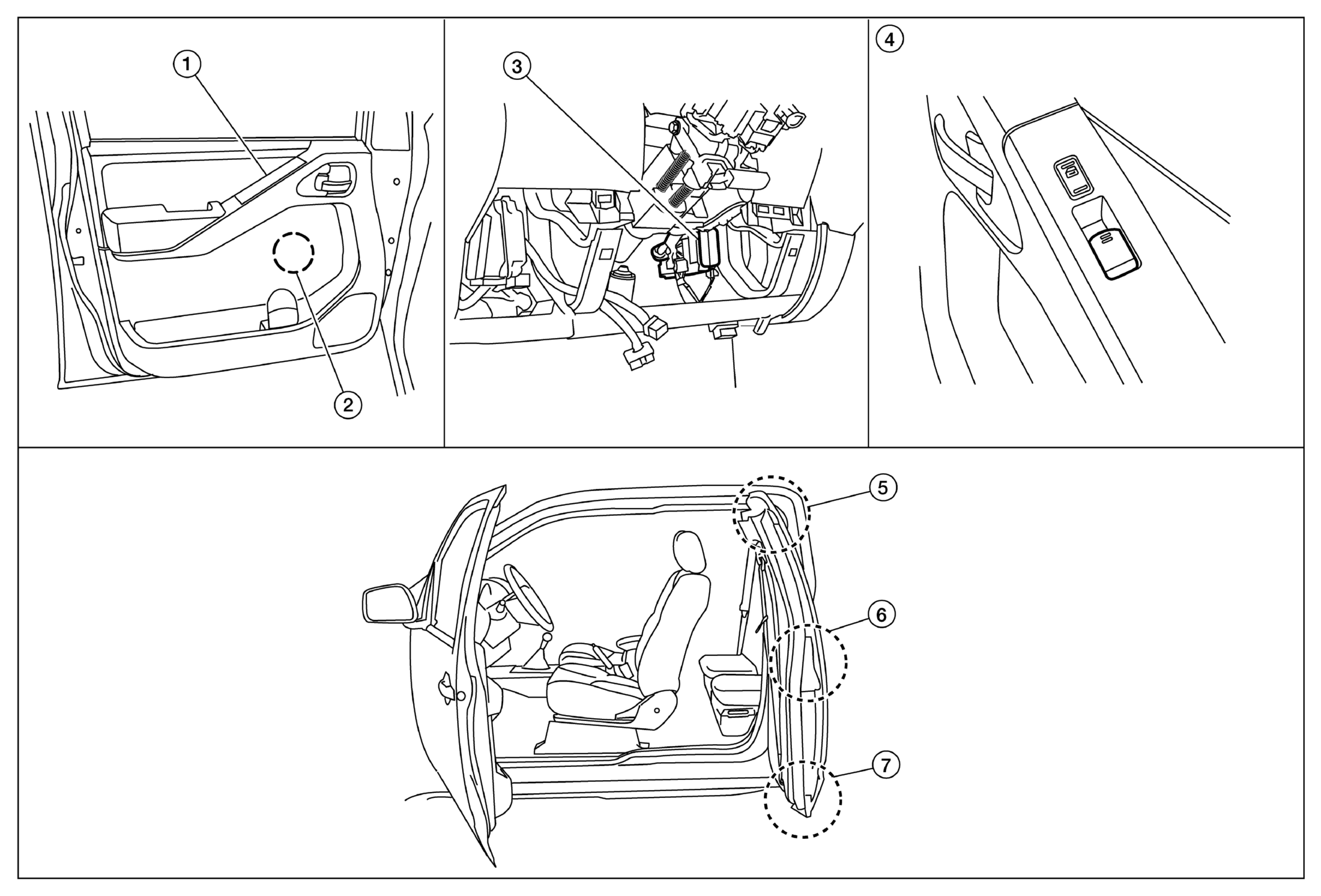

Fig 1: Power Window Control System Component Parts Location (King Cab)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Main power window and door lock/unlock switch D7	2.	Front power window motor LH D9, RH D104	3.	BCM M18, M19, M20 (view with lower instrument panel LH removed)
4.	Power window and door lock/unlock switch RH D105	5.	Rear door switch upper LH D211, RH D312	6.	Front door switch LH D213, RH D314
7.	Rear door switch lower D212, RH D313
