Exploded View With Torque Specifications

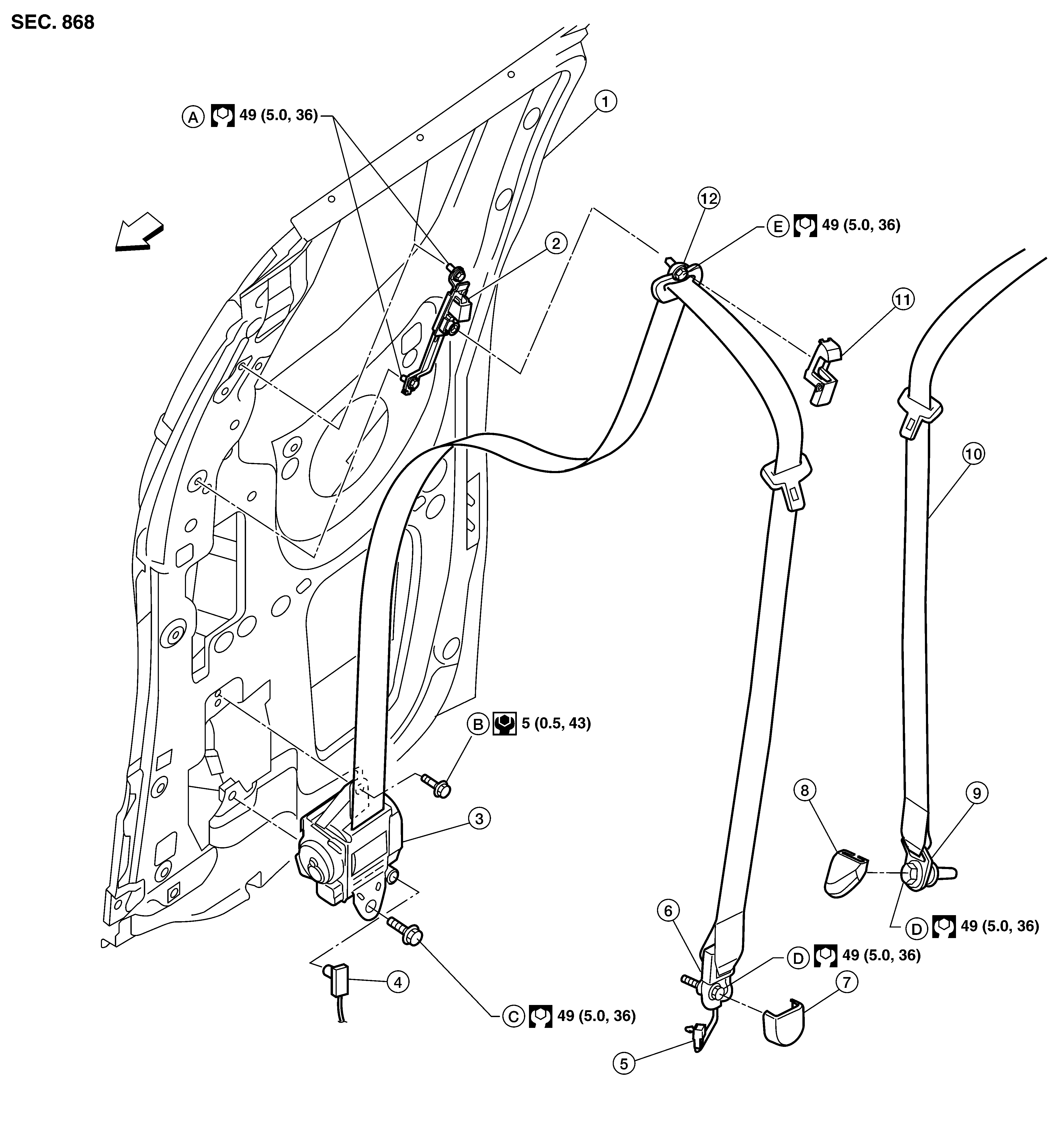

King Cab Models
| 1. | Center pillar | 2. | Seat belt height adjuster | 3. | Seat belt retractor and belt assembly (RH) |
| 4. | Seat belt pre-tensioner connector | 5. | Seat belt tension sensor connector | 6. | Seat belt lower anchor (RH) (seat belt tension sensor) |
| 7. | Anchor cover (RH) | 8. | Anchor cover (LH) | 9. | Seat belt lower anchor (LH) |
| 10. | Seat belt retractor and belt assembly (LH) | 11. | D-ring anchor bolt cover | 12. | D-ring anchor |
| A. | Height adjuster anchor bolt | B. | Retractor bolt upper | C. | Retractor anchor bolt |
| D. | Seat belt lower anchor bolt | E. | D-ring anchor bolt | Front |

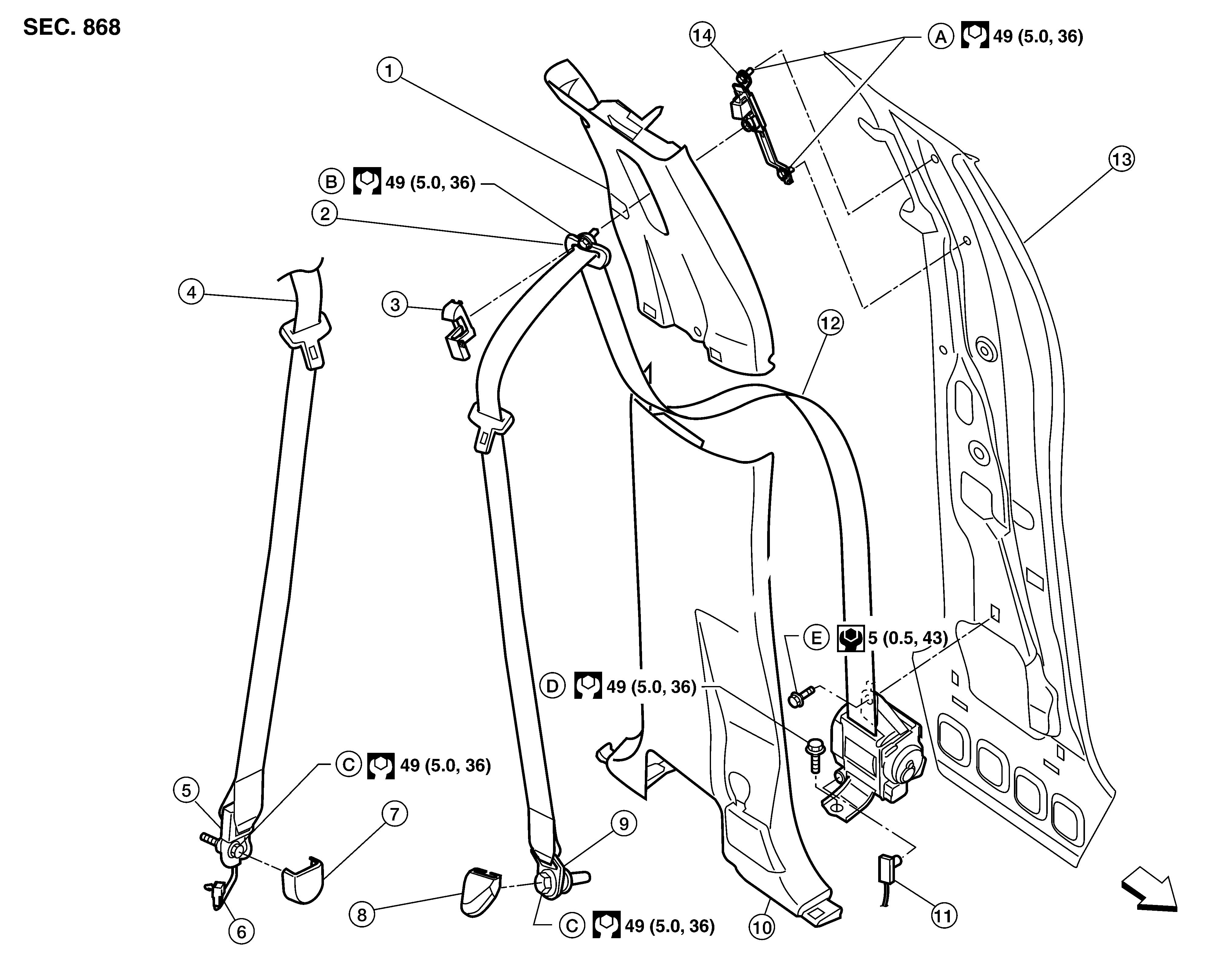

Crew Cab Models
| 1. | Center pillar upper finisher | 2. | D-ring anchor | 3. | D-ring anchor bolt cover |
| 4. | Seat belt retractor and belt assembly (RH) | 5. | Seat belt lower anchor (RH) (seat belt tension sensor) | 6. | Seat belt tension sensor connector |
| 7. | Anchor cover (RH) | 8. | Anchor cover (LH) | 9. | Seat belt lower anchor (LH) |
| 10. | Center pillar lower finisher | 11. | Seat belt pre-tensioner connector | 12. | Seat belt retractor and belt assembly (LH) |
| 13. | Center pillar | 14. | Seat belt height adjuster | A. | Height adjuster anchor bolt |
| B. | D-ring anchor bolt | C. | Seat belt lower anchor bolt | D. | Retractor anchor bolt |
| E. | Retractor bolt upper | Front |
