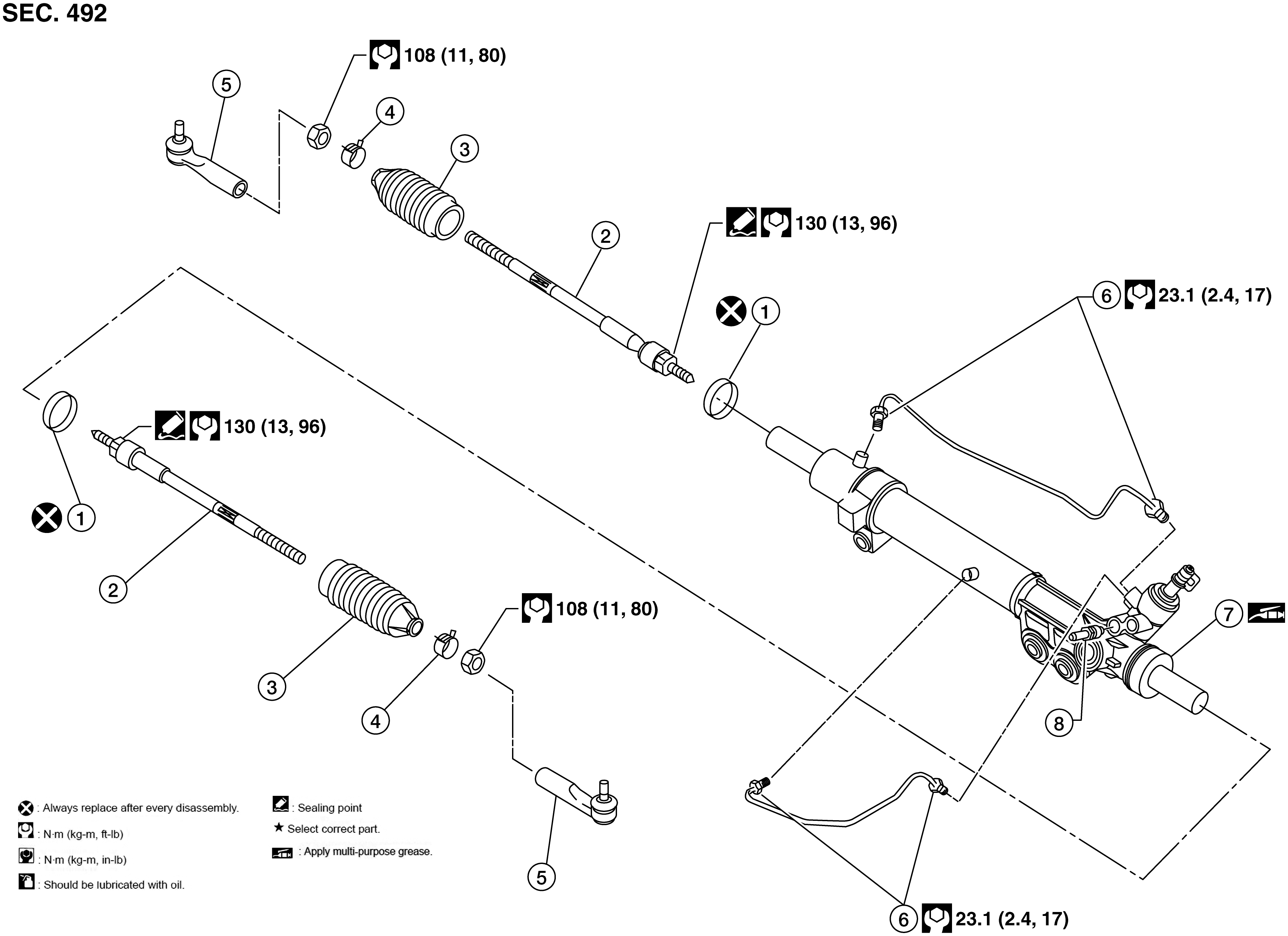

Disassembly And Assembly: Notes
| 1. | Boot clamp | 2. | Inner socket | 3. | Boot |
| 4. | Boot clamp | 5. | Outer socket | 6. | Cylinder tubes |
| 7. | Gear housing assembly | 8. | Connector |
CAUTION:
- Secure the gear housing assembly with a vise. Use copper plates or equivalent to prevent it from being damaged. Do not grip the cylinder with a vise.
- Before performing disassembly, clean the gear housing assembly. Be careful not to allow any cleaner to contact the discharge and return port connectors.
