Exploded View With Torque Specifications

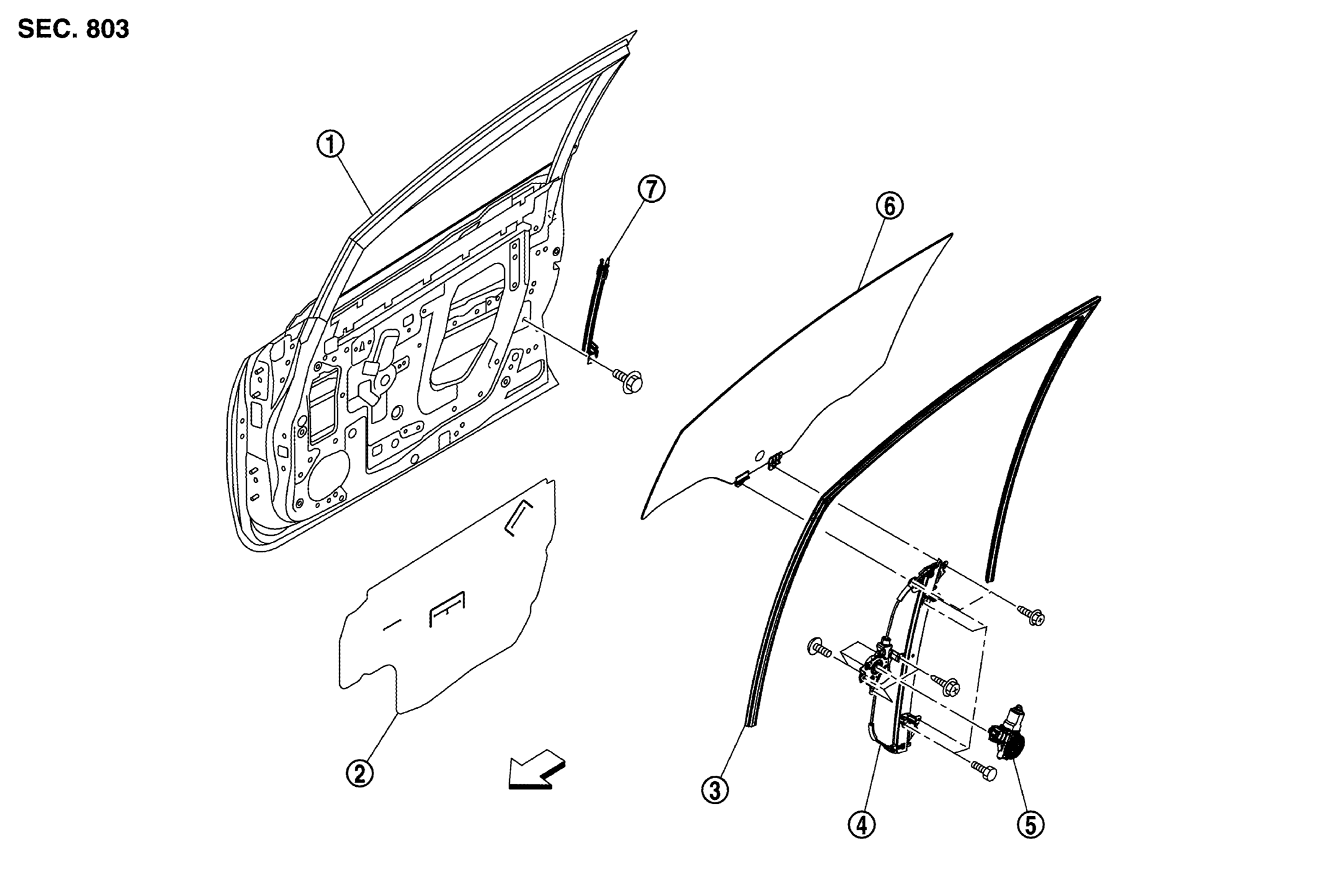

Fig 1: Exploded View Of Front Door Glass And Regulator

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front door panel	2.	Sealing screen	3.	Front door glass run
4.	Front door regulator	5.	Power window motor	6.	Front door glass
7.	Lower sash		Front
