Exploded View With Torque Specifications

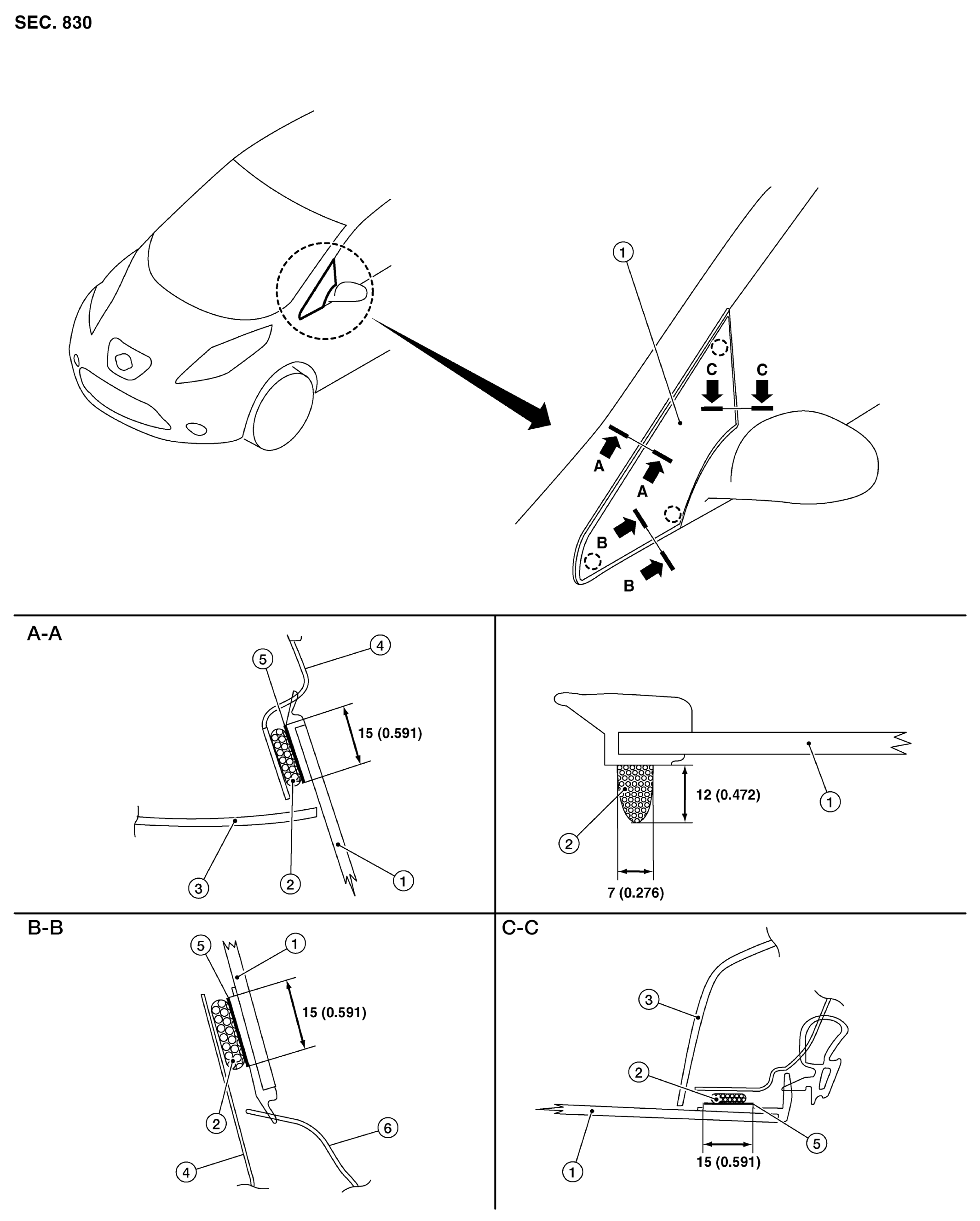

Fig 1: Exploded View Of Opera Window

Courtesy of NISSAN NORTH AMERICA, INC.

Unit mm (in)

1.	Opera window glass	2.	Adhesive	3.	Front pillar finisher
4.	Body side outer	5.	Glass primer	6.	Front fender panel
	Pawl
