Exploded View With Torque Specifications

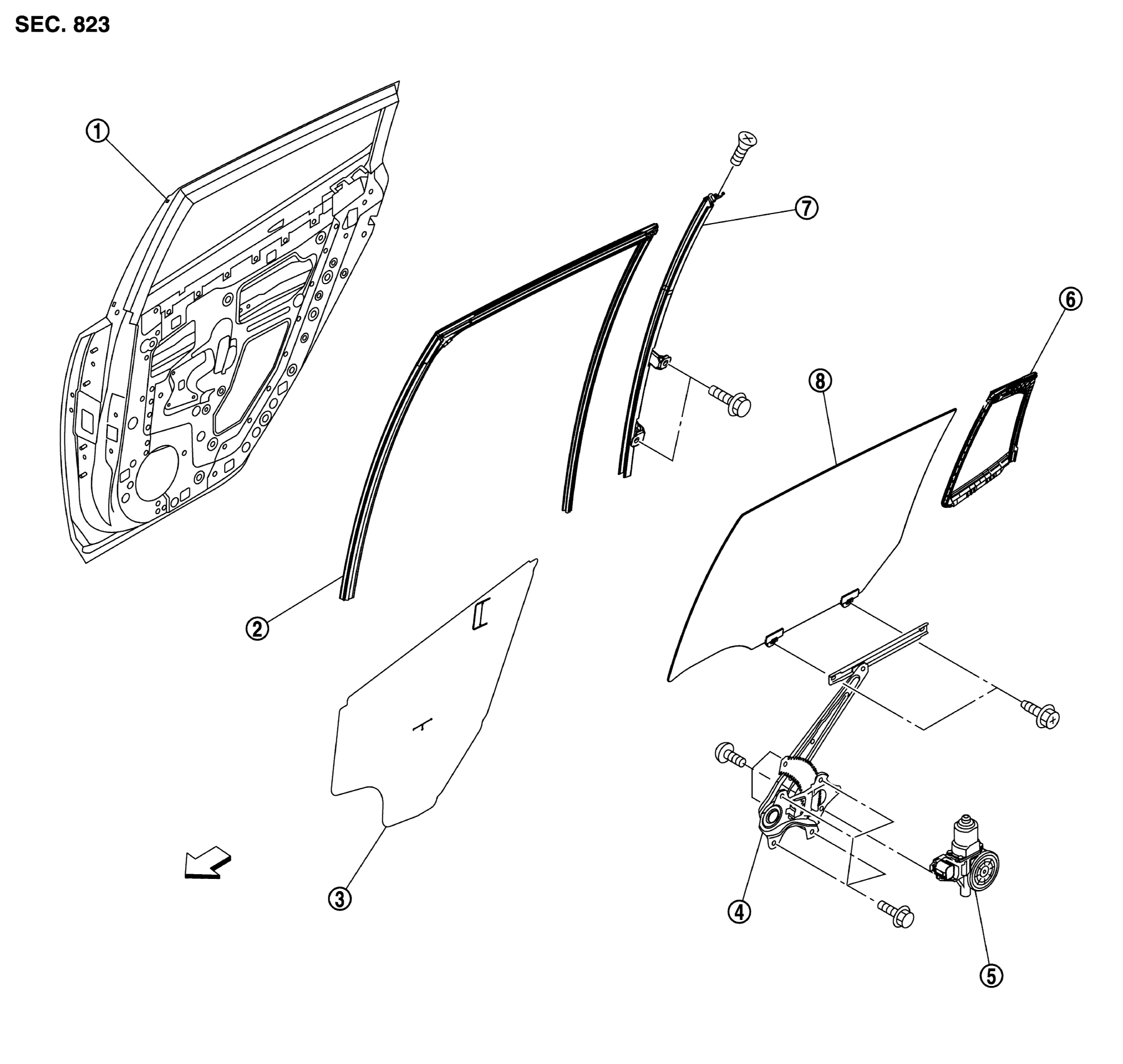

Fig 1: Exploded View Of Rear Door Glass And Regulator

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door panel	2.	Rear door glass run	3.	Sealing screen
4.	Rear door regulator	5.	Power window motor	6.	Partition glass
7.	Partition sash	8.	Rear door glass		Front
