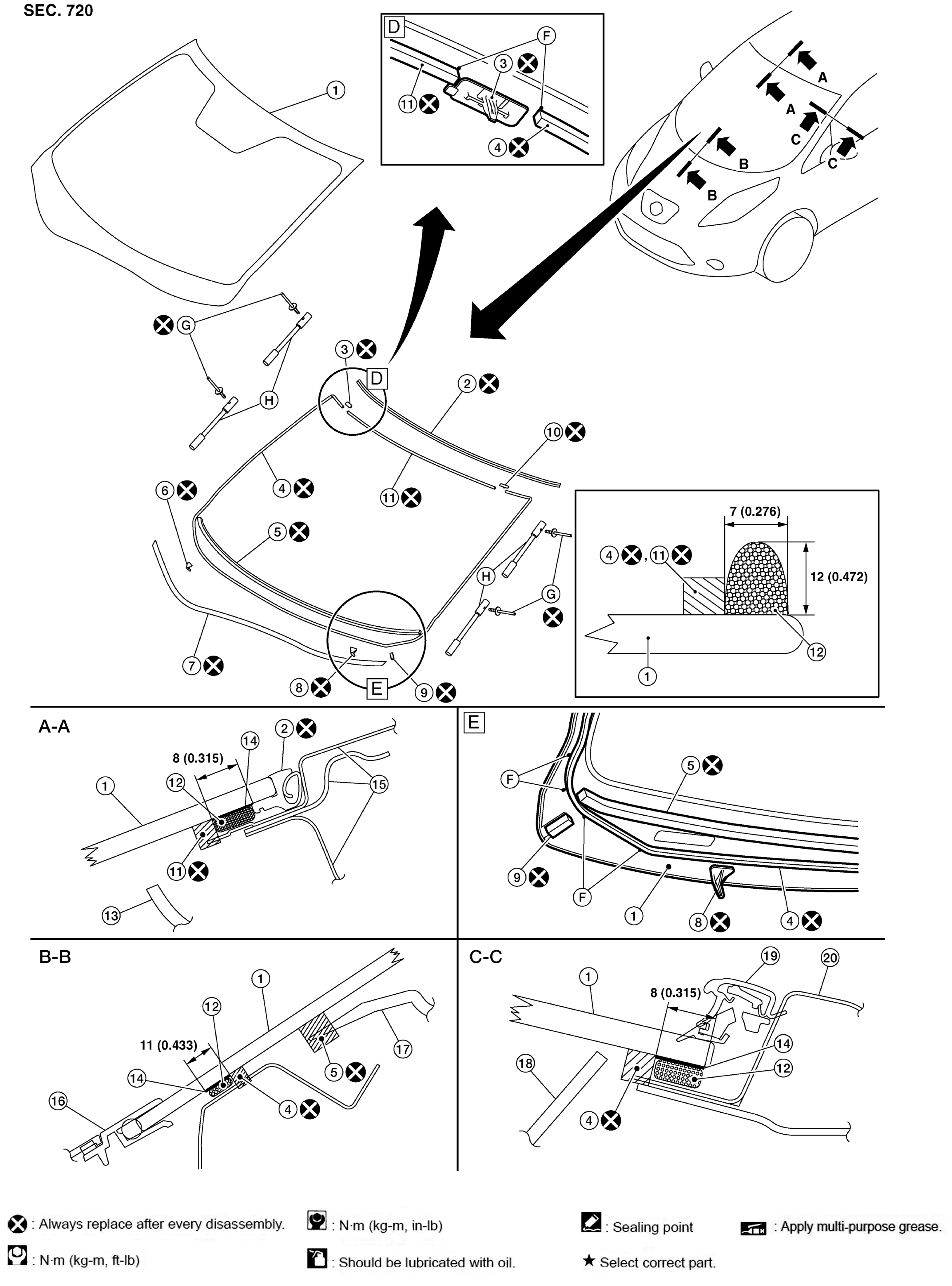

Exploded View With Torque Specifications
Unit: mm (in)
| 1. | Windshield glass | 2. | Windshield glass molding | 3. | Upper clip (RH) |
| 4. | Dam sealant rubber (lower) | 5. | Glass insulator | 6. | Lower clip (RH) |
| 7. | Adhesive tape | 8. | Lower clip (LH) | 9. | Windshield lower spacer (Driver side only) |
| 10. | Upper clip (LH) | 11. | Dam sealant rubber (upper) | 12. | Adhesive |
| 13. | Headlining assembly | 14. | Glass primer | 15. | Roof assembly |
| 16. | Cowl top cover | 17. | Instrument panel assembly | 18. | Front pillar finisher |
| 19. | Roof side molding assembly | 20. | Body side outer panel | F. | Black print mark |
| G. | Rivet | H. | Fastener molding |
