Exploded View With Torque Specifications
Exploded View With Torque Specifications

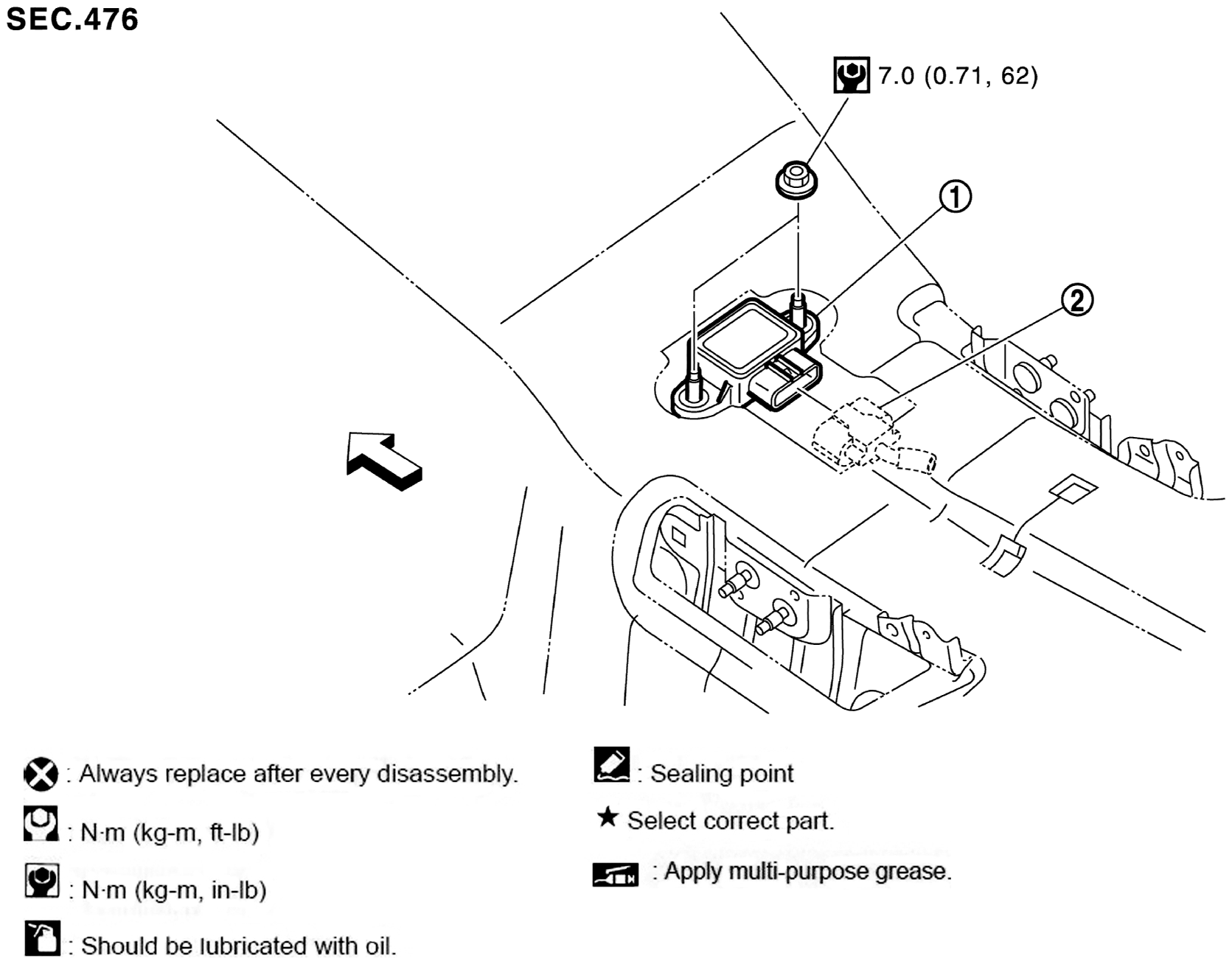

Fig 1: Exploded View Of Yaw Rate/Side/Decel G Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Yaw rate/side/decel G sensor
2.
Yaw rate/side/decel G sensor harness connector
Front
