Component Parts Location

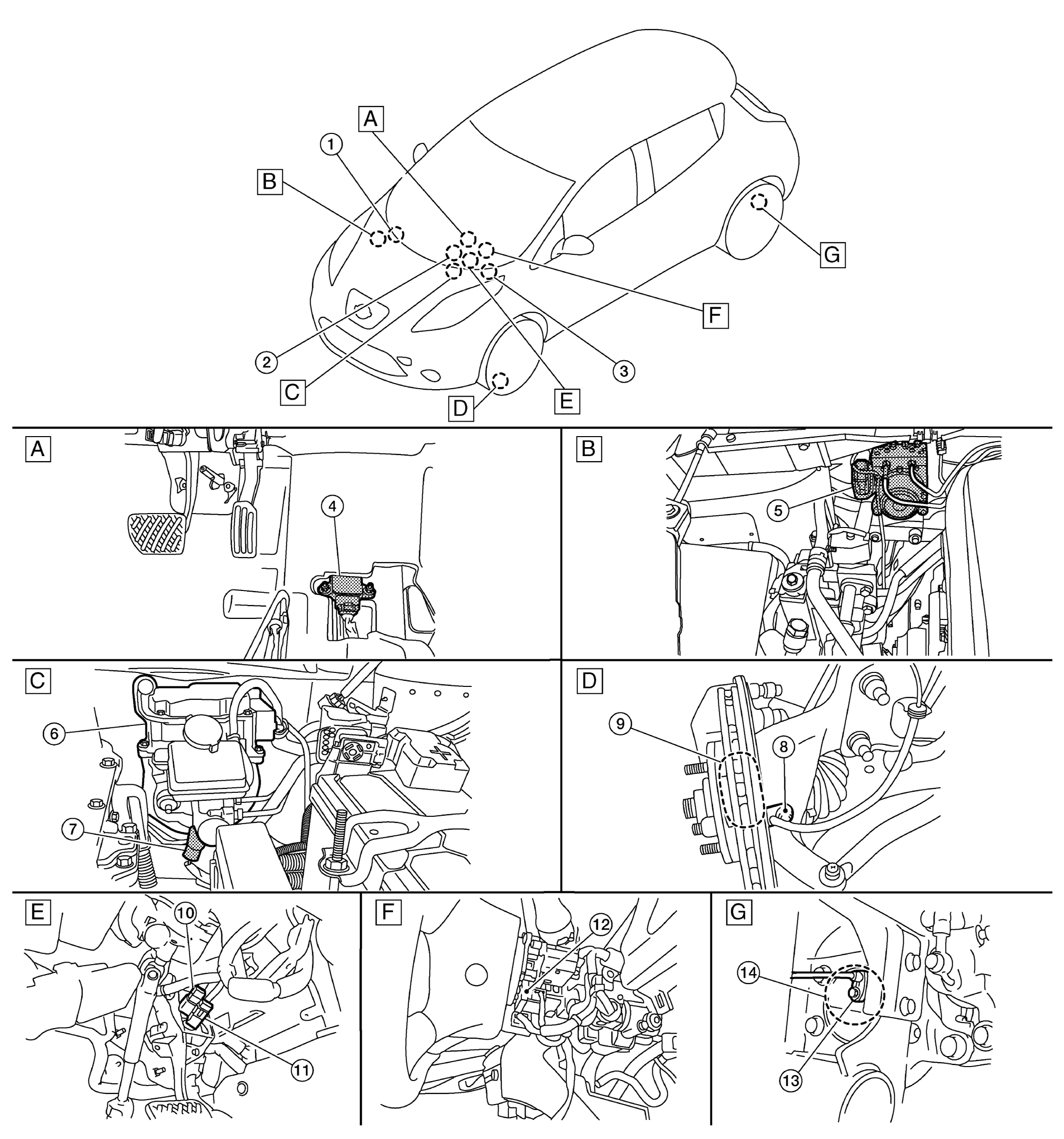

Fig 1: Brake Control System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

	Console body assembly		Inside motor room (right)		Inside motor room (left)
	Steering knuckle		Brake pedal		Back of spiral cable assembly
	Rear wheel hub assembly

No.	Component parts	Function
	VCM	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Accelerator pedal position signal VCM control signal Shift position signal Refer to COMPONENT PARTS LOCATION for detailed installation location.
	Combination meter	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication: Brake fluid level switch signal Parking brake switch signal Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN communication: ABS warning lamp signal VDC warning lamp signal Brake warning lamp signal Brake system warning lamp signal VDC OFF indicator lamp signal Refer to COMPONENT PARTS LOCATION for detailed installation location.
	VDC OFF switch	VDC OFF SWITCH
	Yaw rate/side/decel G sensor	YAW RATE/SIDE/DECEL G SENSOR
	ABS actuator and electric unit (control unit)	ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
	Electrically-driven intelligent brake	Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN communication and brake communication line * : Electrically-driven intelligent brake control signal Brake warning lamp request signal Brake system warning lamp request signal
	Master cylinder pressure sensor	MASTER CYLINDER PRESSURE SENSOR
	Front wheel sensor	WHEEL SENSOR AND SENSOR ROTOR
	Front sensor rotor
	Stop lamp switch	STOP LAMP SWITCH
	Brake pedal position switch	BRAKE PEDAL POSITION SWITCH
	Steering angle sensor	STEERING ANGLE SENSOR
	Rear wheel sensor	WHEEL SENSOR AND SENSOR ROTOR
	Rear sensor rotor

* : CAN communication line between electrically-driven intelligent brake unit and ABS actuator and electric unit (control unit)
