Terminal Layout

WARNING: This page is about a different car, the 2016 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

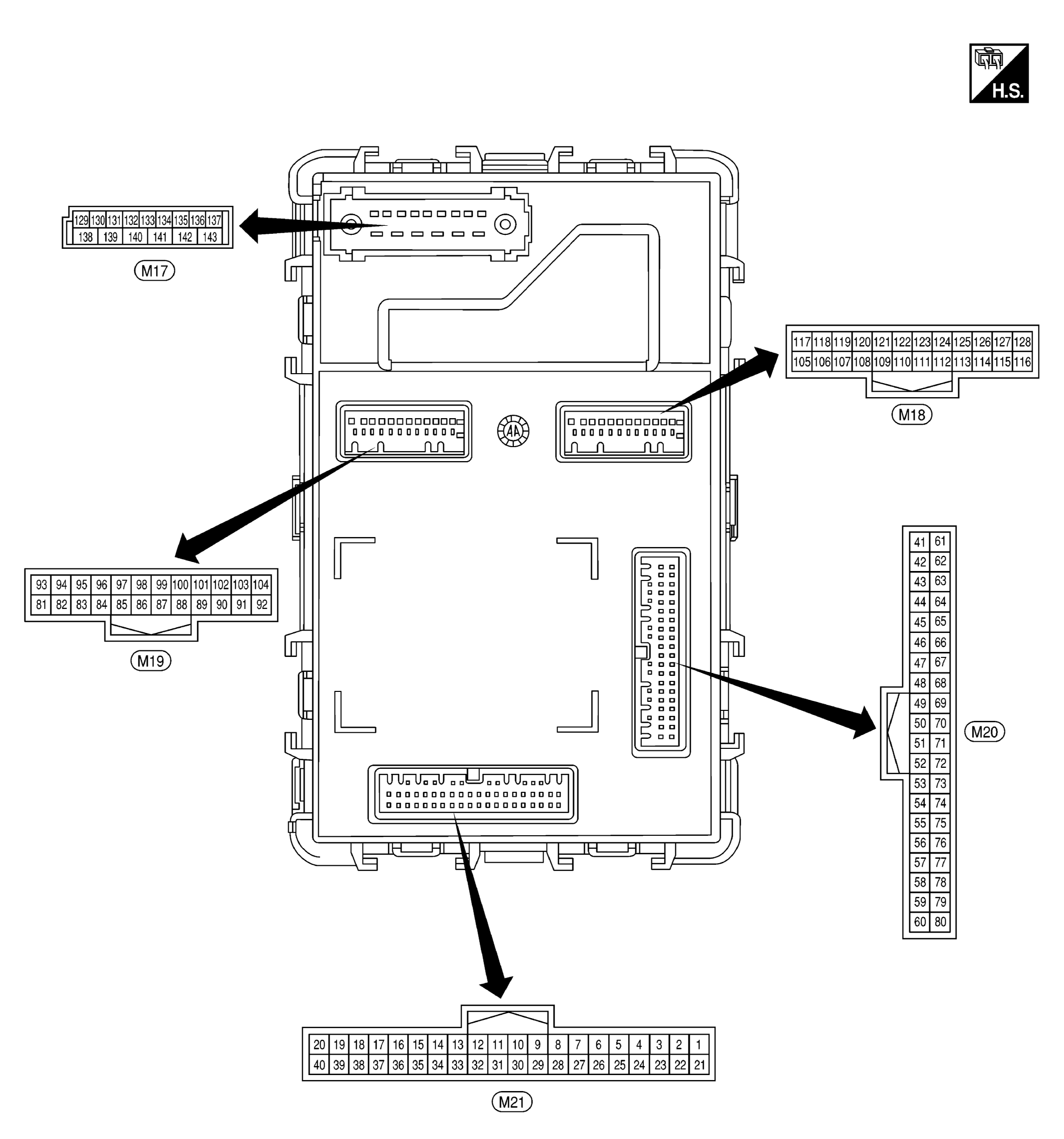

Fig 1: Body Control Module Connectors

Courtesy of NISSAN NORTH AMERICA, INC.
