Exploded View With Torque Specifications

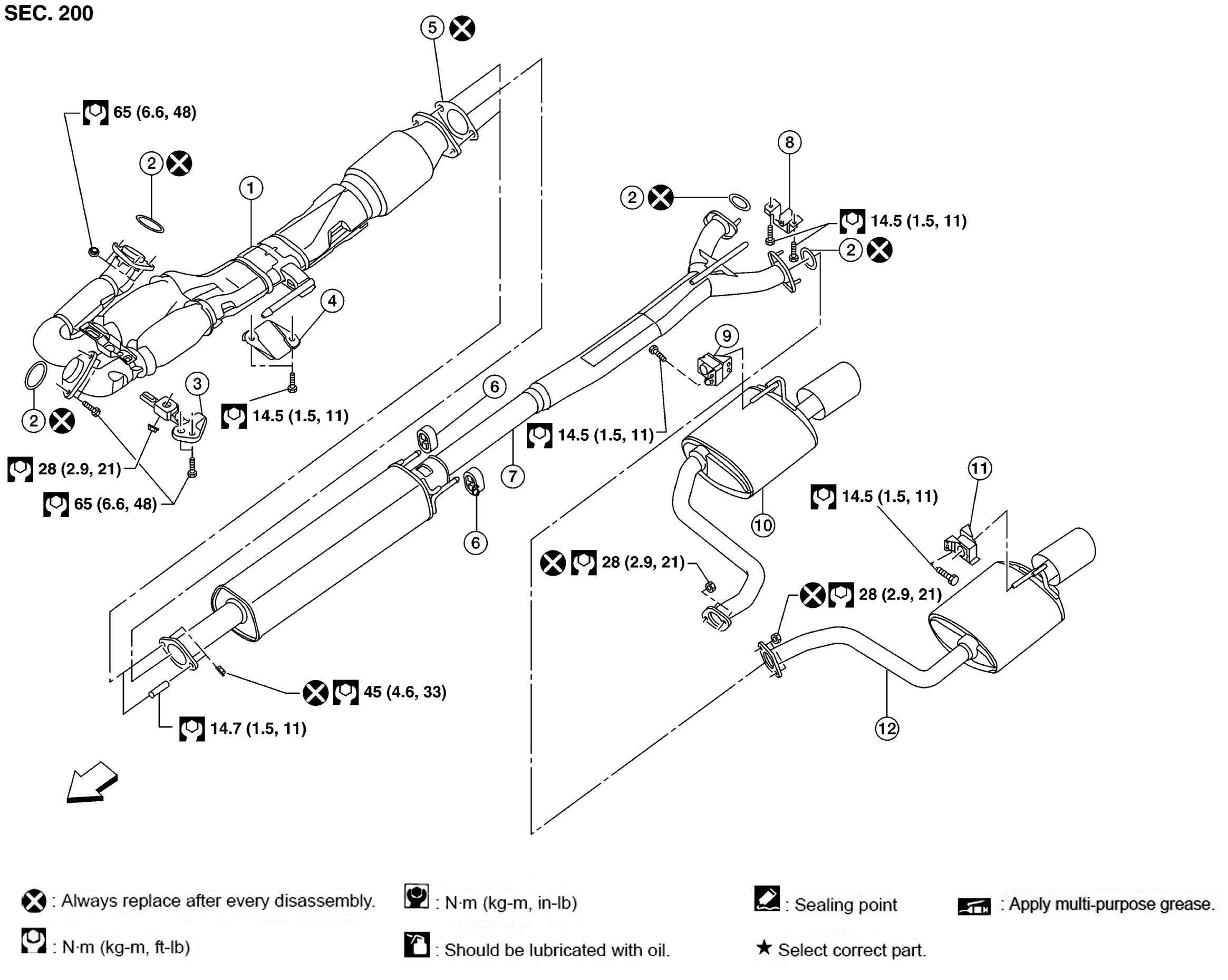

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front exhaust tube	2.	Ring gasket	3.	Front exhaust tube stay
4.	Front exhaust tube bracket	5.	Gasket	6.	Center exhaust tube rubber hanger
7.	Center exhaust tube	8.	Center exhaust tube hanger	9.	Rear muffler bracket (RH)
10.	Rear muffler (RH)	11.	Rear muffler bracket (LH)	12.	Rear muffler (LH)
	Front
