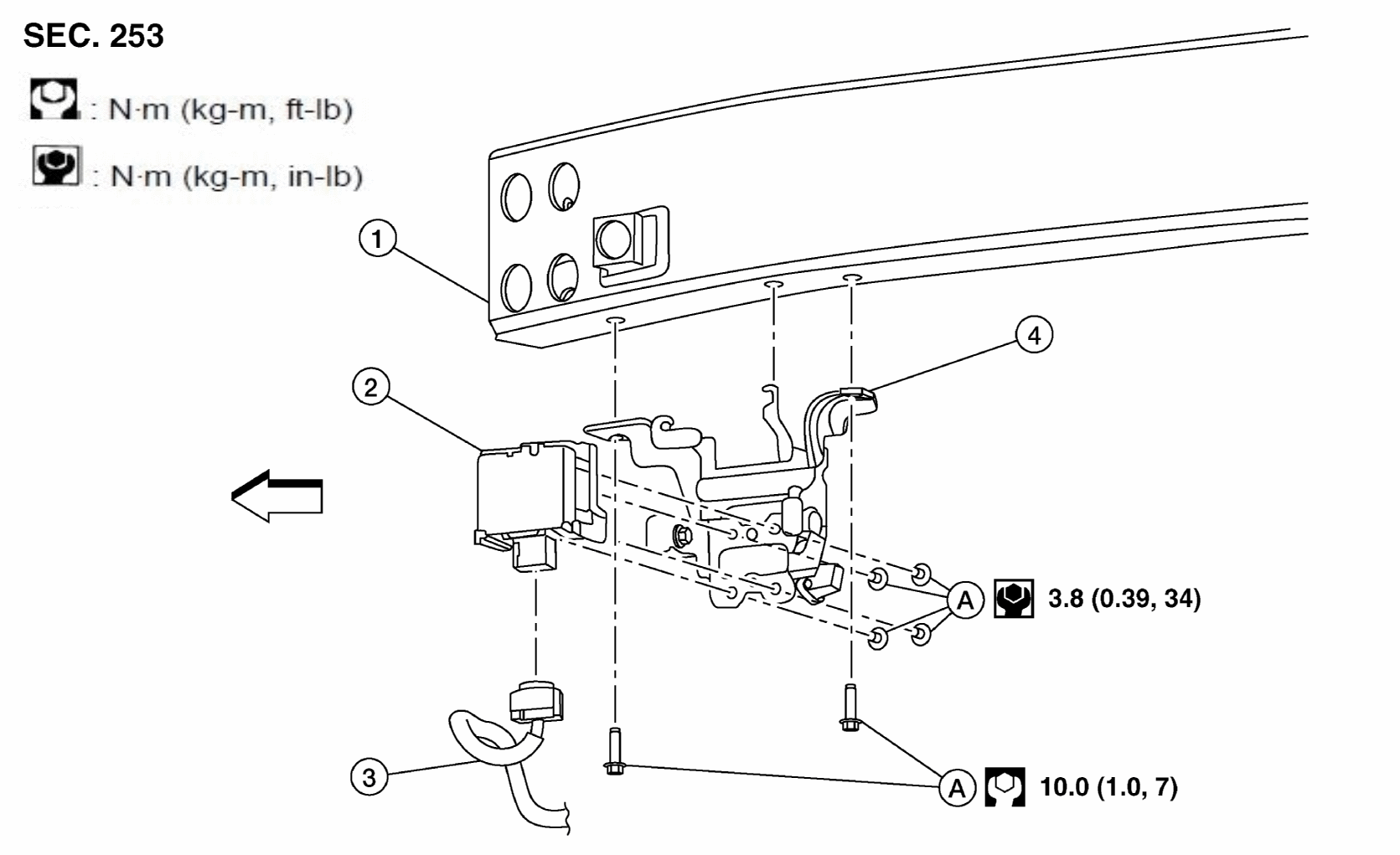

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front Bumper Reinforcement | 2. | ICC Sensor | 3. | ICC Sensor Harness Connector |
| 4. | ICC Sensor Bracket | A. | Refer to INSTALLATION | Arrow | Front |
