Exploded View With Torque Specifications
Exploded View With Torque Specifications
WARNING:
This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

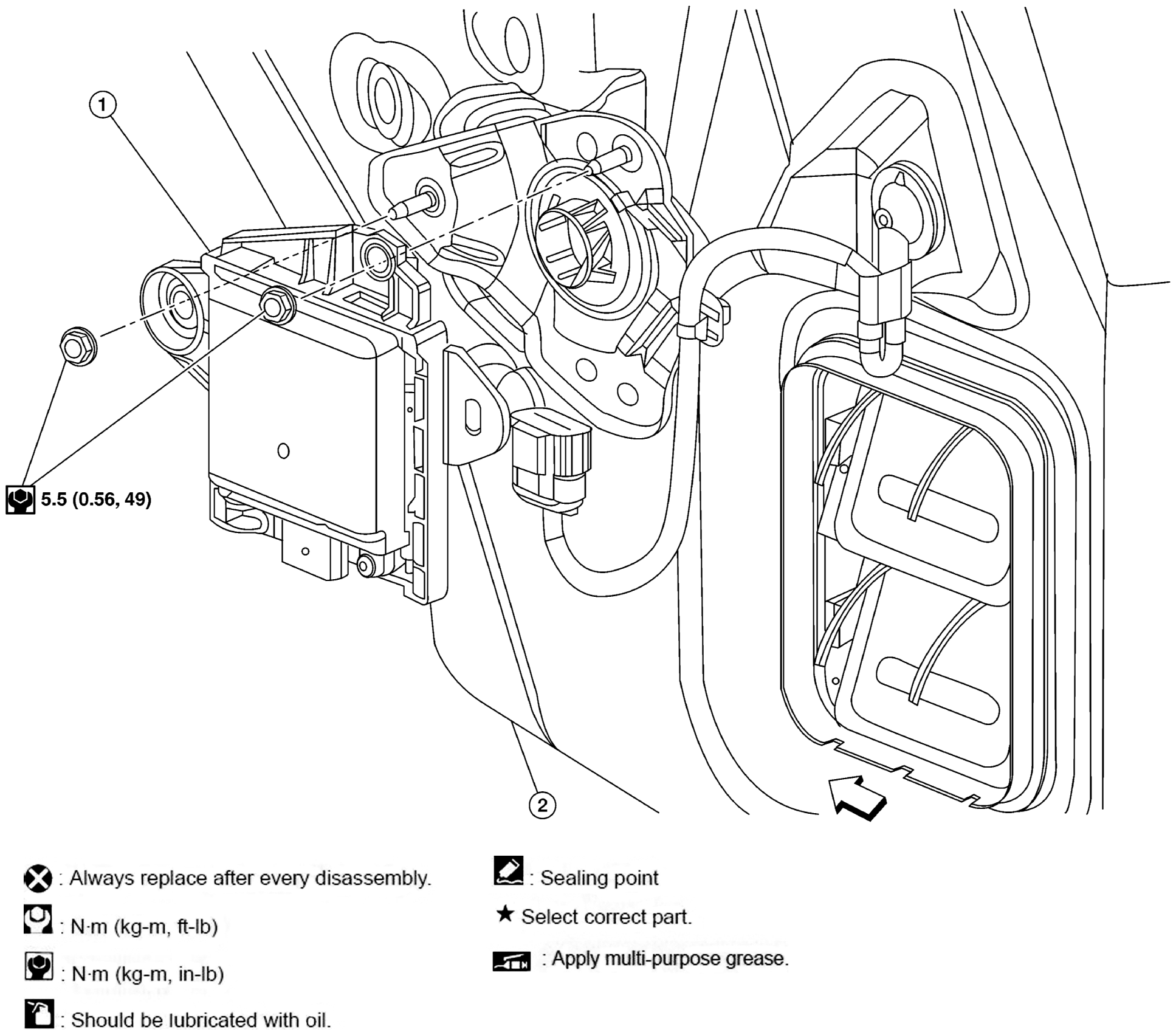

Fig 1: Exploded View Of Side Radar With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Side Radar
2.
Rear Fender
Arrow
Front
NOTE:
LH shown, RH similar.
