Exploded View With Torque Specifications

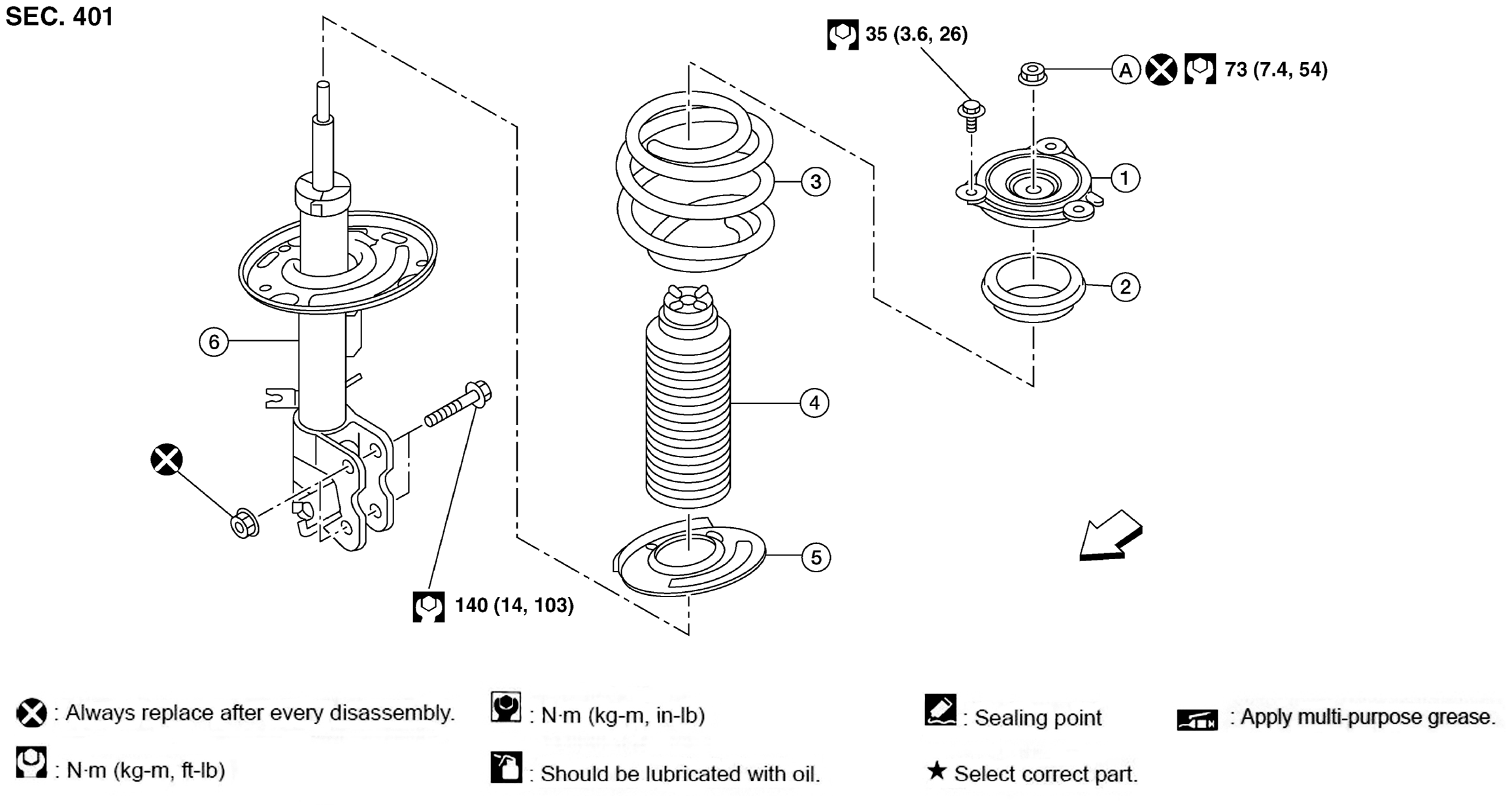

Fig 1: Exploded View Of Front Coil Spring And Strut With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Strut mount insulator	2.	Upper rubber seat	3.	Front coil spring
4.	Bound bumper	5.	Lower rubber seat	6.	Strut
A.	Piston rod lock nut		Front
