Exploded View With Torque Specifications

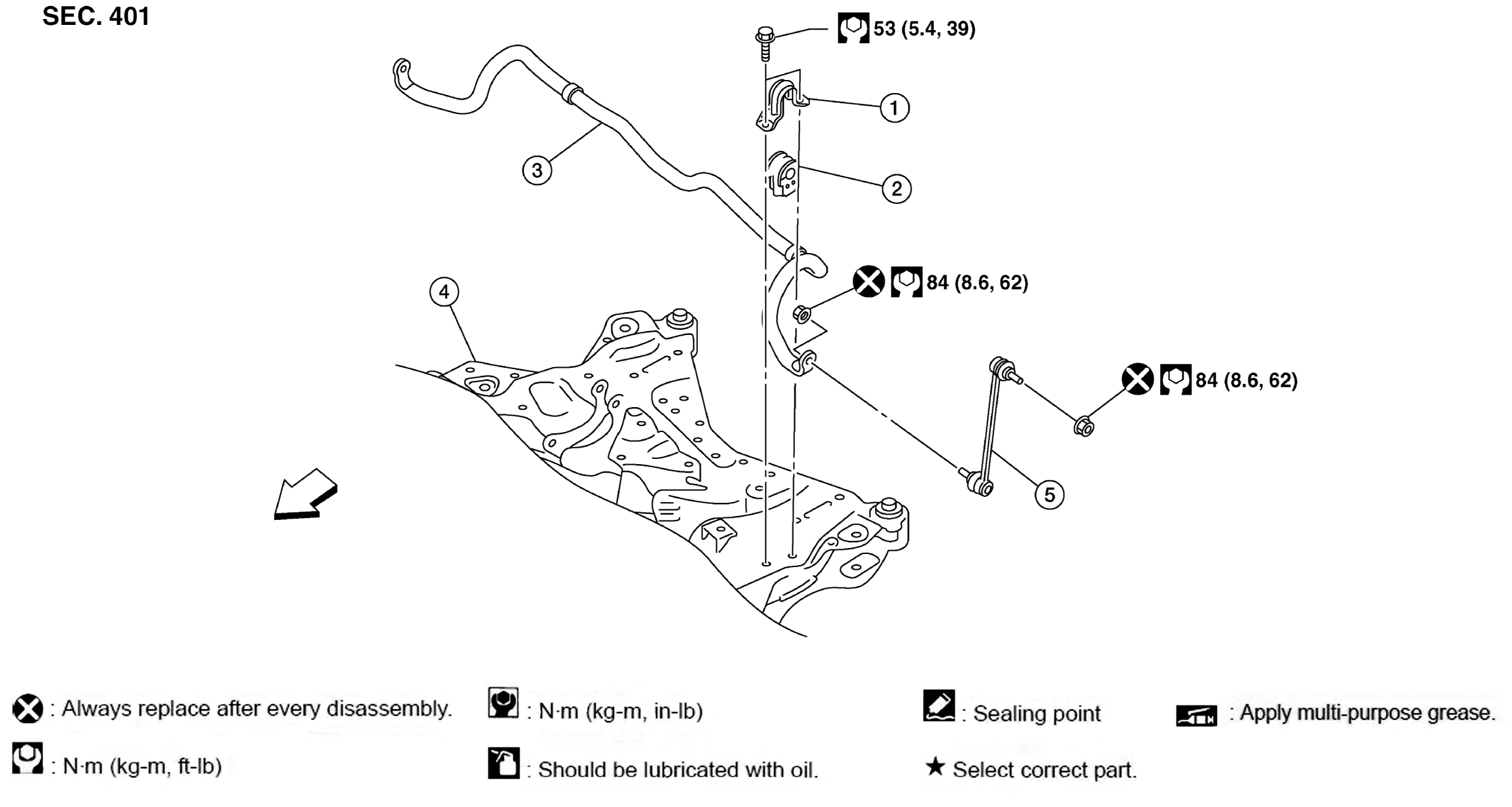

Fig 1: Exploded View Of Front Stabilizer With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Stabilizer clamp	2.	Stabilizer bushing	3.	Stabilizer
4.	Front suspension member	5.	Stabilizer connecting rod		Front
