Removal And Installation: Removal

Release pawls using a suitable tool and then remove the rear power window switch finisher (1).

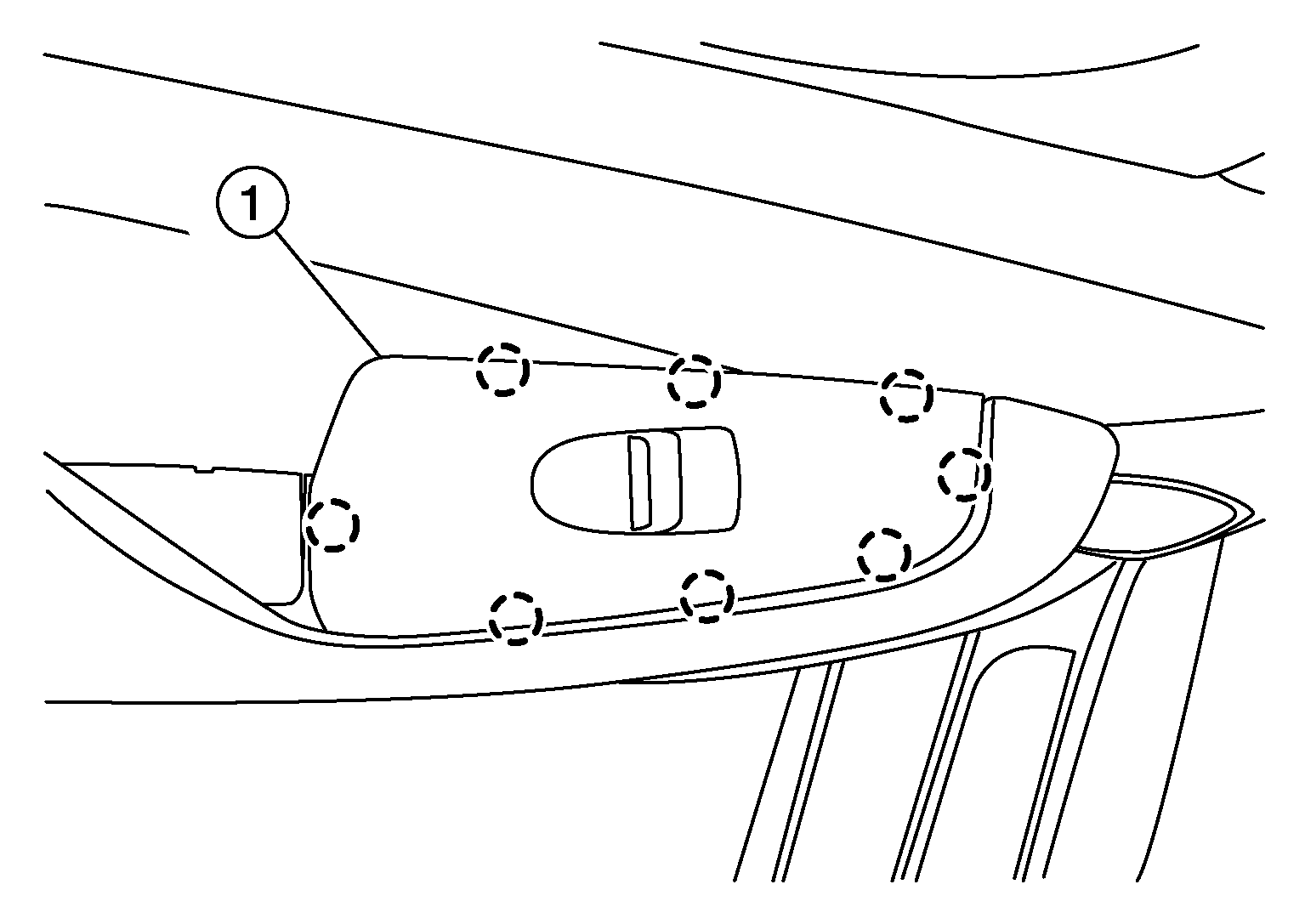

Fig 1: Identifying Pawls And Finisher
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

NOTE:
LH shown; RH similar
Disconnect power window switch harness connector (A) from rear power window switch (1).

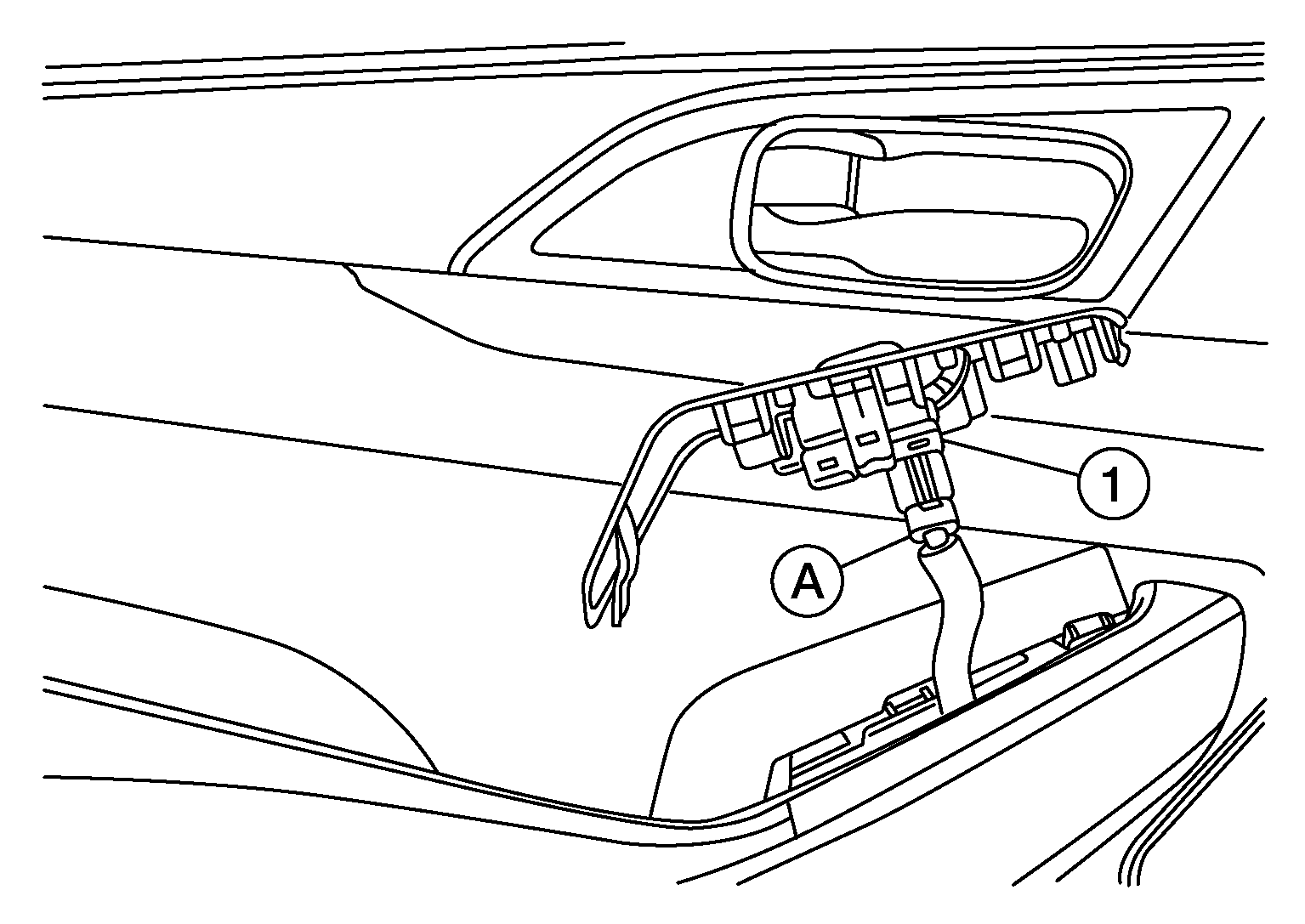

Fig 2: Identifying Switch And Connector
Courtesy of NISSAN NORTH AMERICA, INC.
Release pawls, then remove rear power window switch (1) from rear power window switch finisher (2).

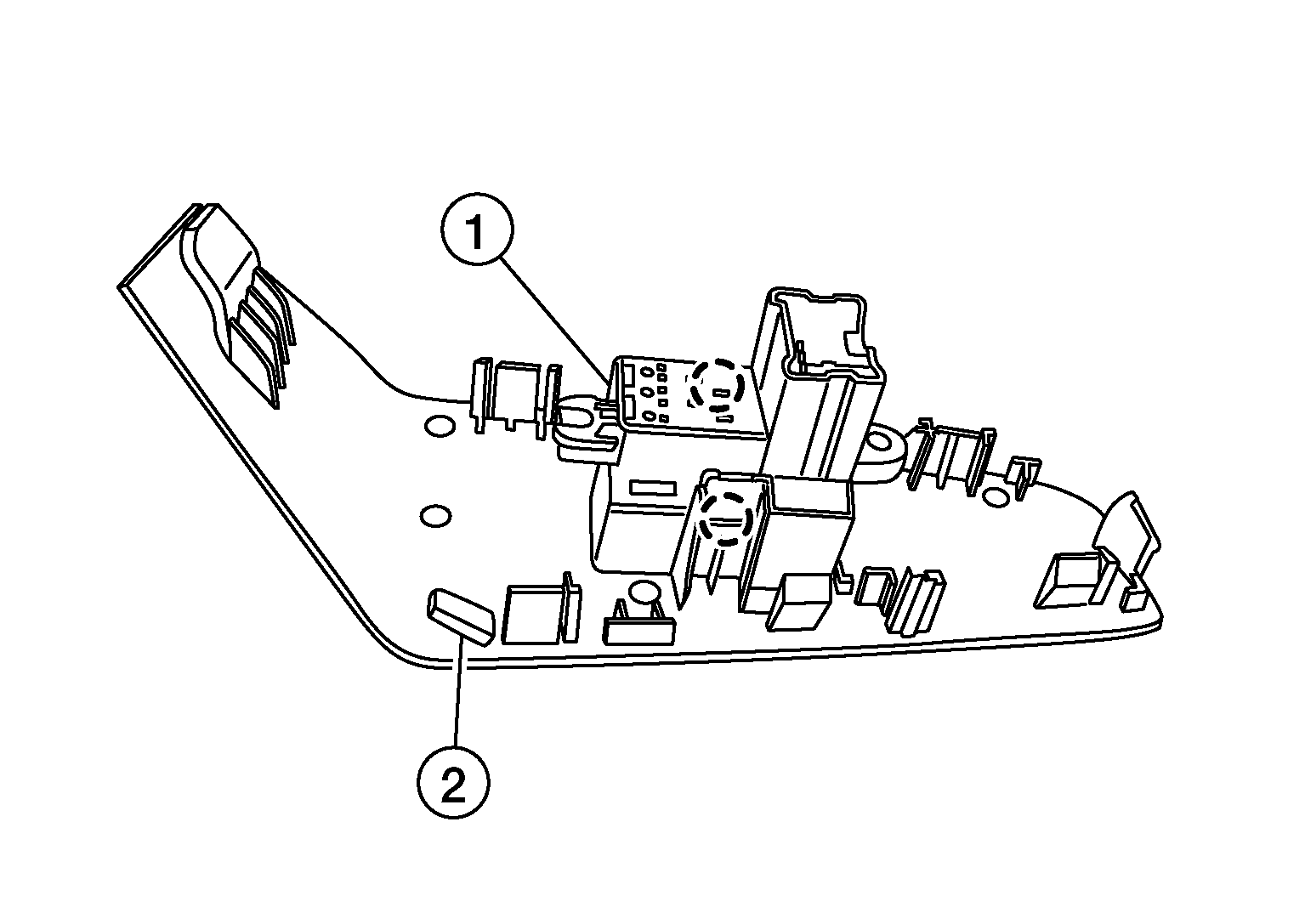

Fig 3: Identifying Switch, Pawls And Connector
Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
