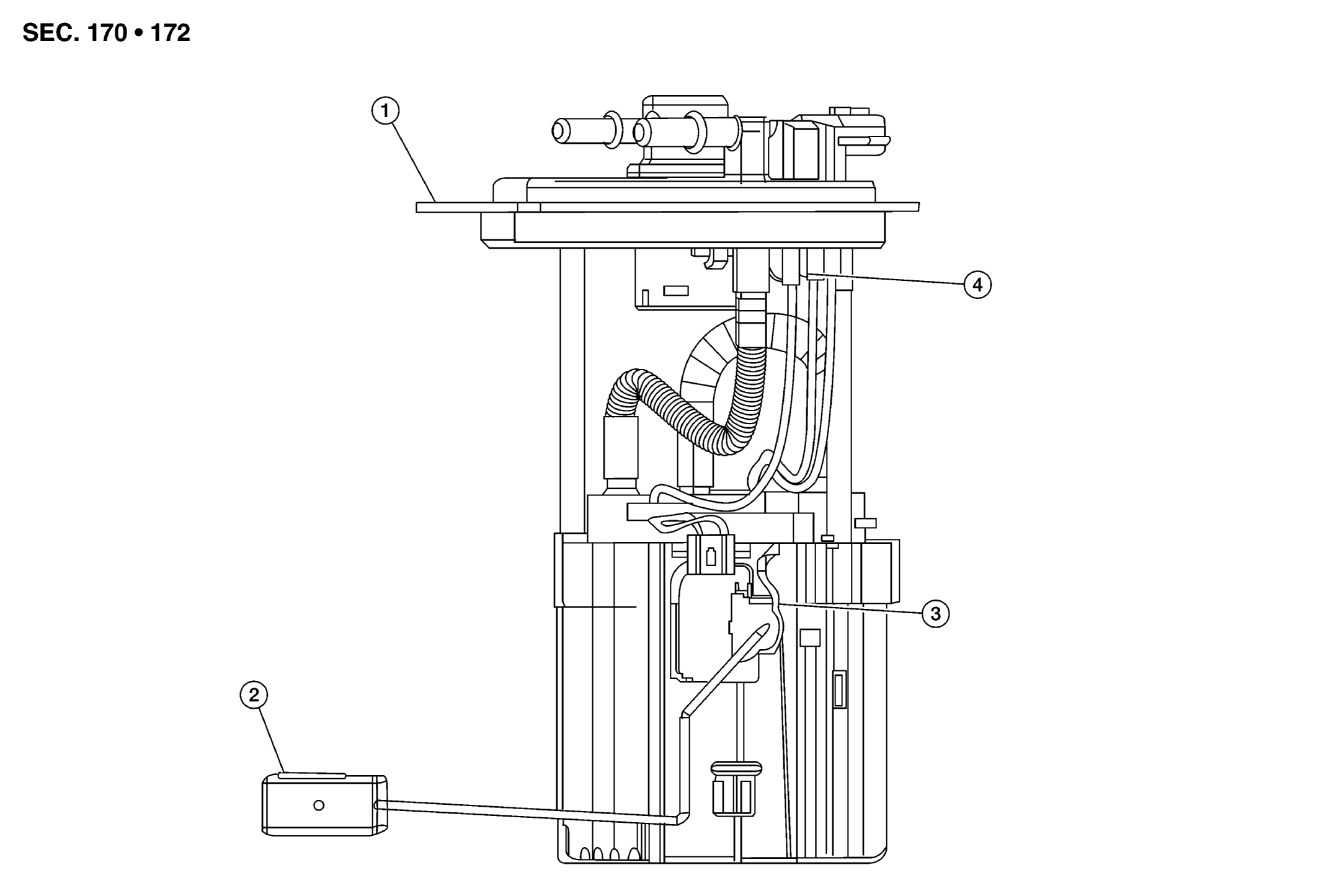

Exploded View With Torque Specifications

Fuel Level Sensor Unit

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel filter and pump assembly	2.	Float arm assembly	3.	Fuel level sensor unit
4.	Fuel level unit sensor harness connector
