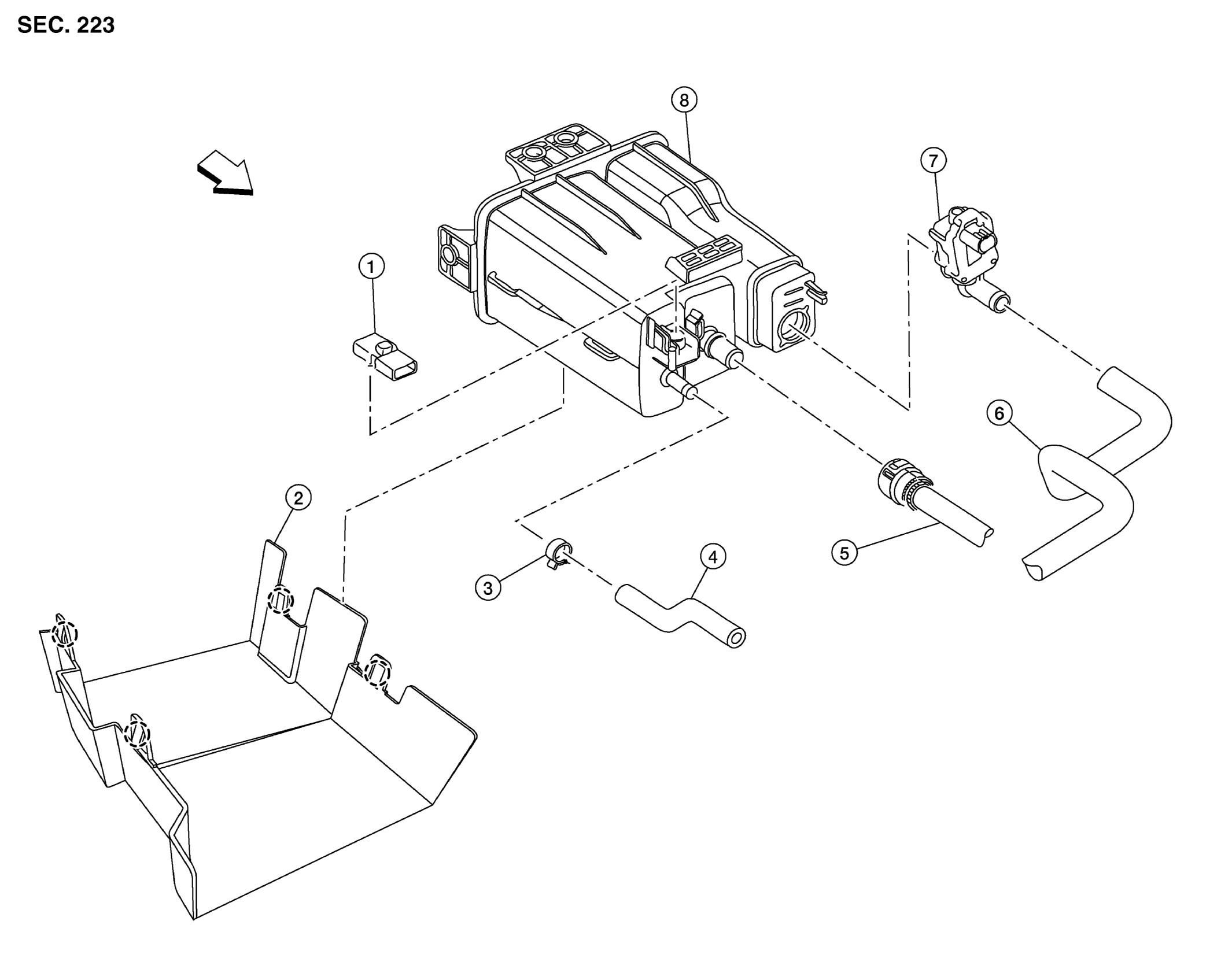

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister control pressure sensor	2.	EVAP canister protector	3.	Hose clamp
4.	EVAP canister purge hose	5.	EVAP canister vent line	6.	EVAP canister vent control valve hose
7.	EVAP canister vent control valve	8.	EVAP canister		Pawl
	Front
