Home › Nissan-Datsun › 2016 › NV200 S › Repair and Diagnosis › Brakes › Traction Control › Brake Control System › Removal And Installation › Yaw Rate/Side/DECEL G Sensor › Exploded View

Exploded View

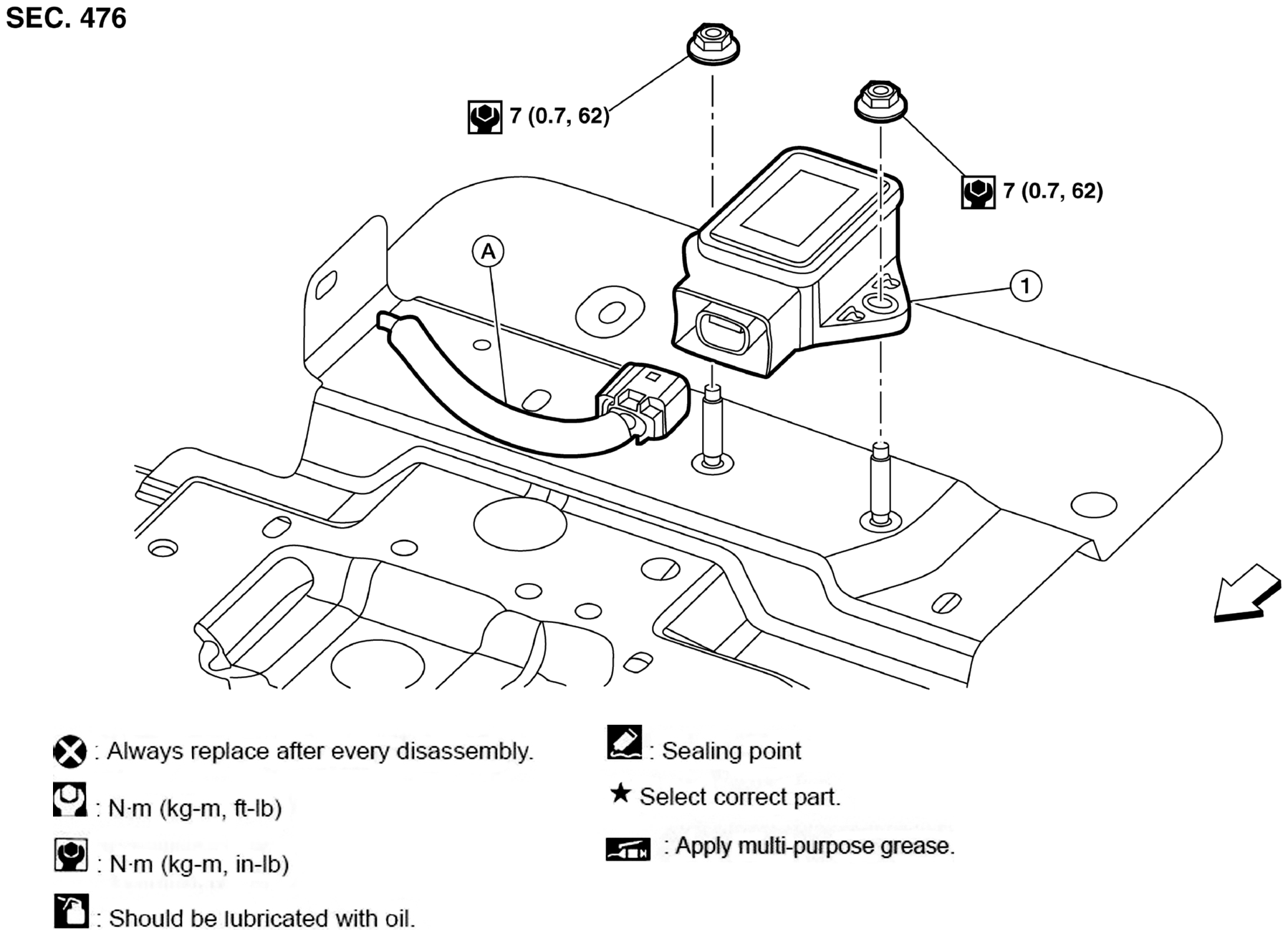

Fig 1: Exploded View Of Yaw Rate/Side Decel G Sensor With Torque Specifications
GNSALFIA0346ZZ-346ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Yaw rate/side/ decel G sensor A. Harness connector ARROW Front
