IPDM E/R (Intelligent Power Distribution Module Engine Room)
›
Exploded View
Exploded View

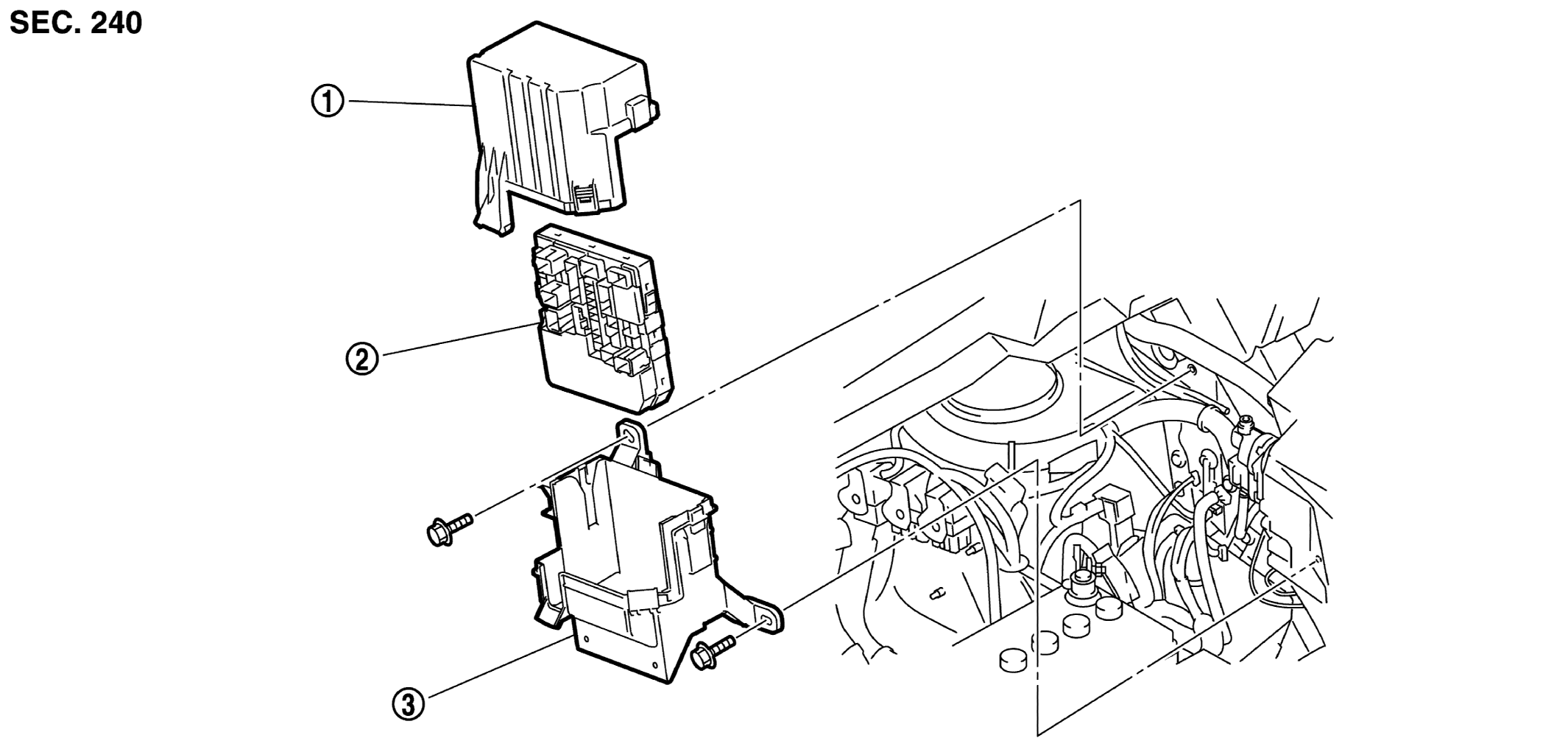

Fig 1: Exploded View Of IPDM E/R (Intelligent Power Distribution Module Engine Room)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
IPDM E/R Cover
2.
IPDM E/R
3.
IPDM E/R case
