Switches And Indicators

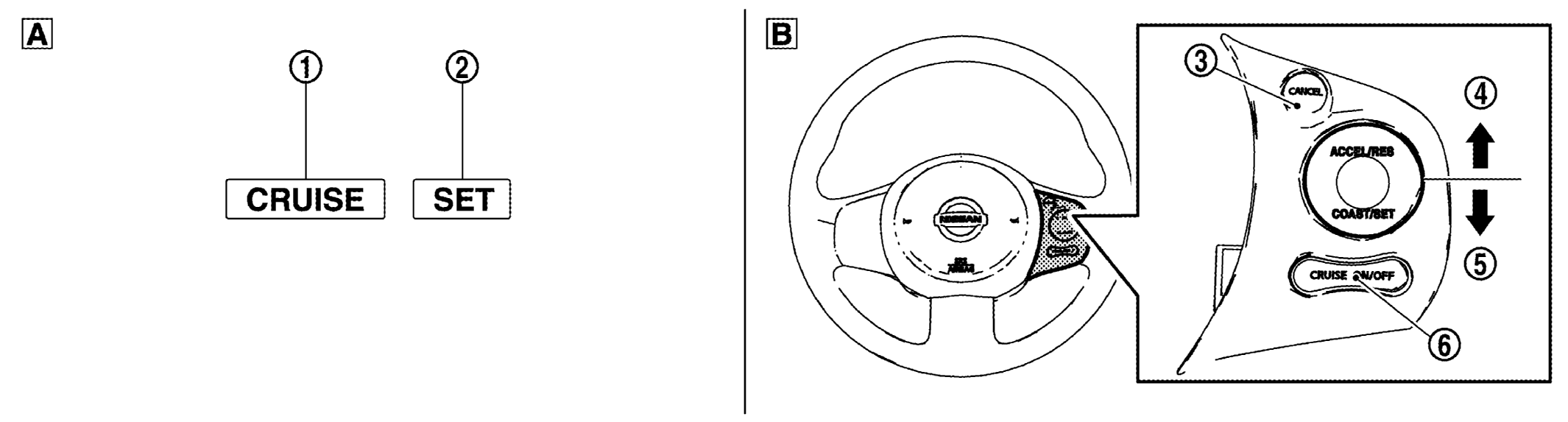

Fig 1: Locating CRUISE And SET Indicators And ASCD Control Switches
GNSJSBIA3472ZZ-472Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 CRUISE indicator WHITE-2 SET indicator WHITE-3 CANCEL switch
WHITE-4 ACCEL/RES switch WHITE-5 COAST/SET switch WHITE-6 ASCD MAIN switch
WZ-A On the combination meter WZ-B On the steering wheel
