Removal And Installation: Notes

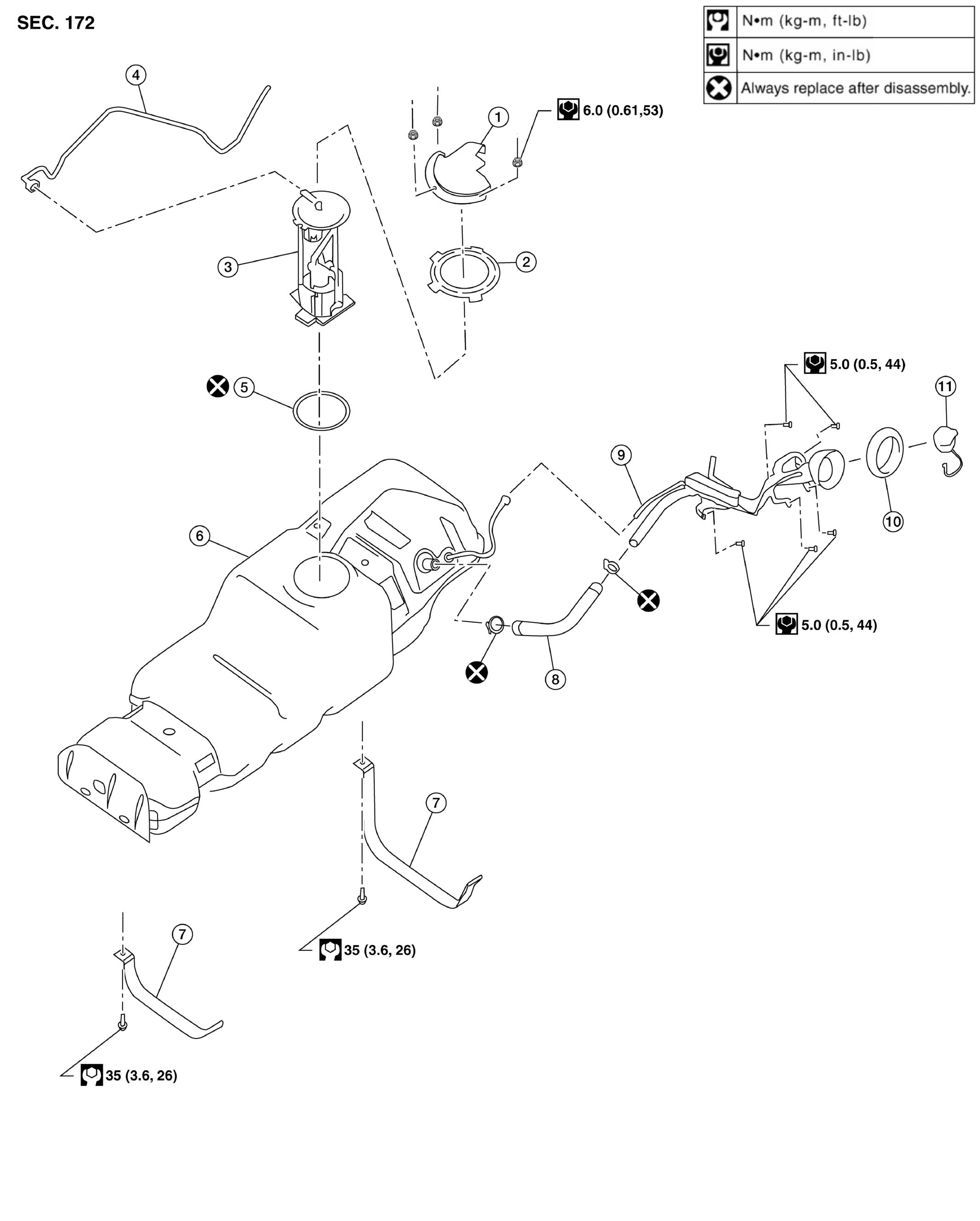

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel line pump protector	2.	Lock ring	3.	Fuel level sensor, fuel filter, and fuel pump assembly
4.	EVAP vent hose	5.	O-ring	6.	Fuel tank
7.	Fuel tank strap	8.	Fuel filler hose	9.	Fuel filler pipe
10.	Fuel filler hose grommet	11.	Fuel filler cap
