Notes
Disassembly And Assembly: Notes
VQ40DE ENGINE

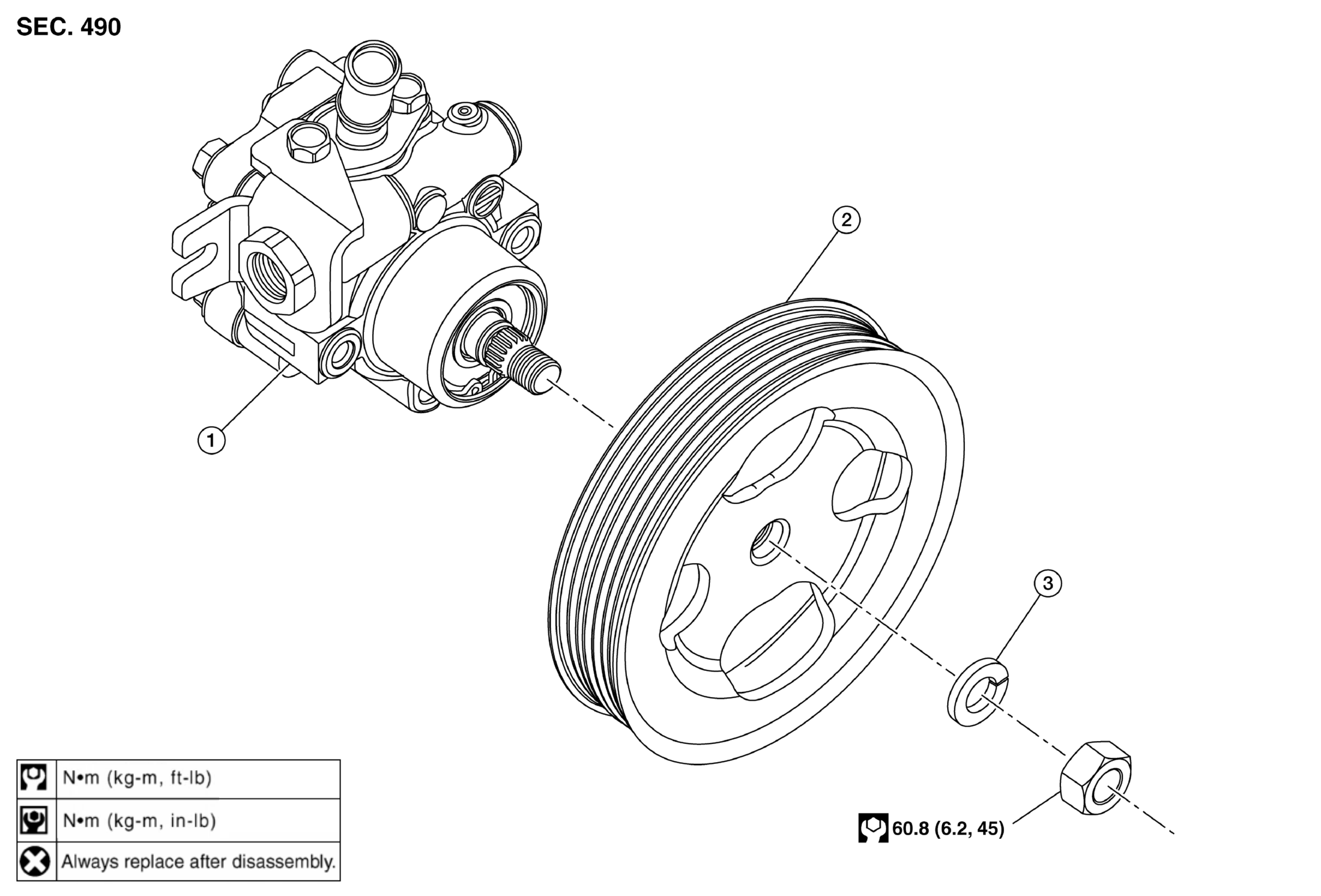

Fig 1: Power Steering Pump Component View With Torque Specifications (VQ40DE)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Power steering pump
2.
Pulley
3.
Lock washer
VK56DE ENGINE
Fig 2: Power Steering Pump Component View With Torque Specifications (VK56DE)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Power steering pump
2.
Pulley
3.
Lock washer
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
