Exploded View With Torque Specifications

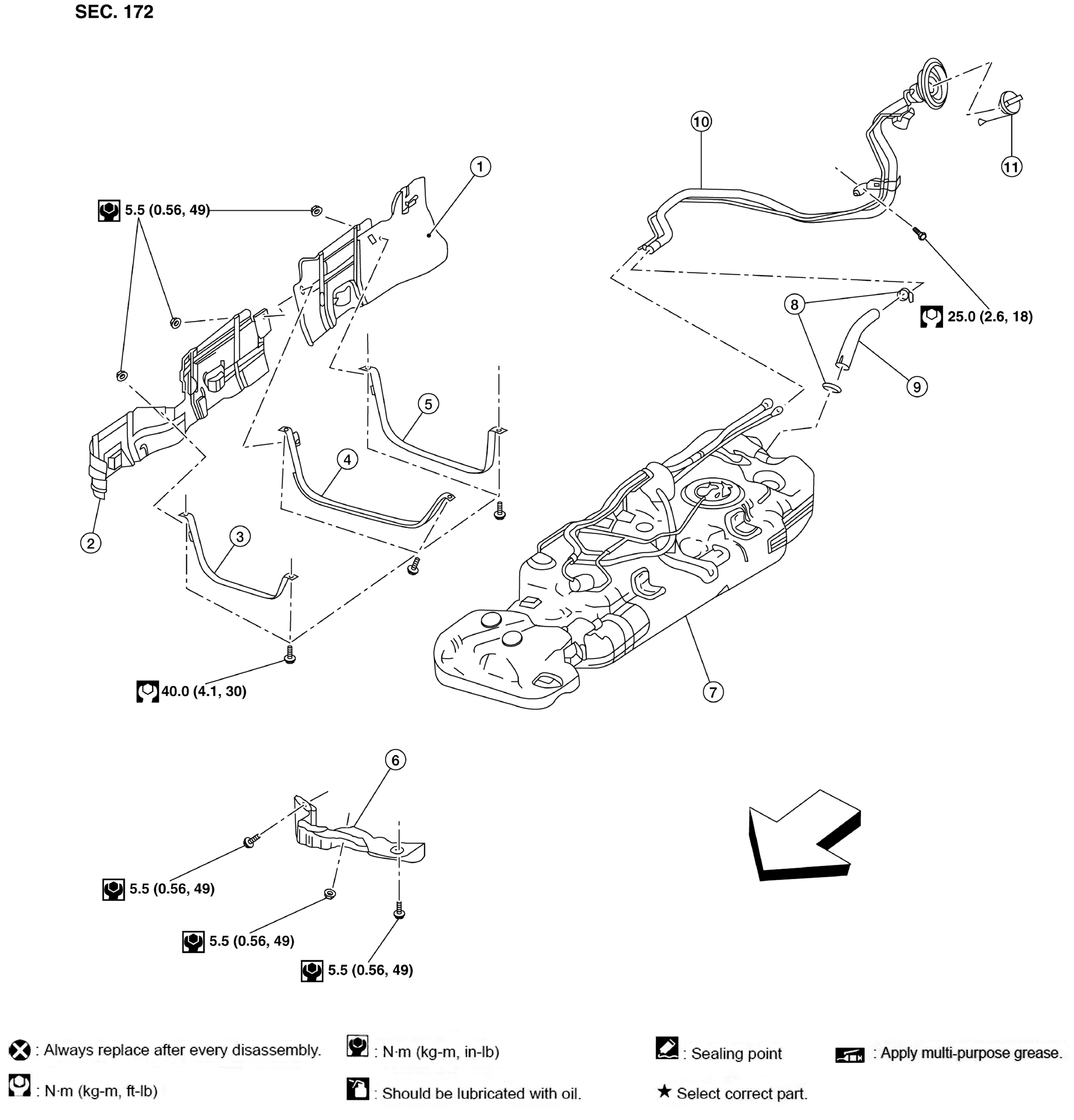

Fig 1: Fuel Tank With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel tank protector 3	2.	Fuel tank protector 2	3.	Fuel tank mounting strap 1
4.	Fuel tank mounting strap 2	5.	Fuel tank mounting strap 3	6.	Fuel tank protector 1
7.	Fuel tank	8.	Clamp	9.	Fuel filler hose
10.	Fuel filler tube	11.	Fuel filler cap		Front
