Exploded View: Removal

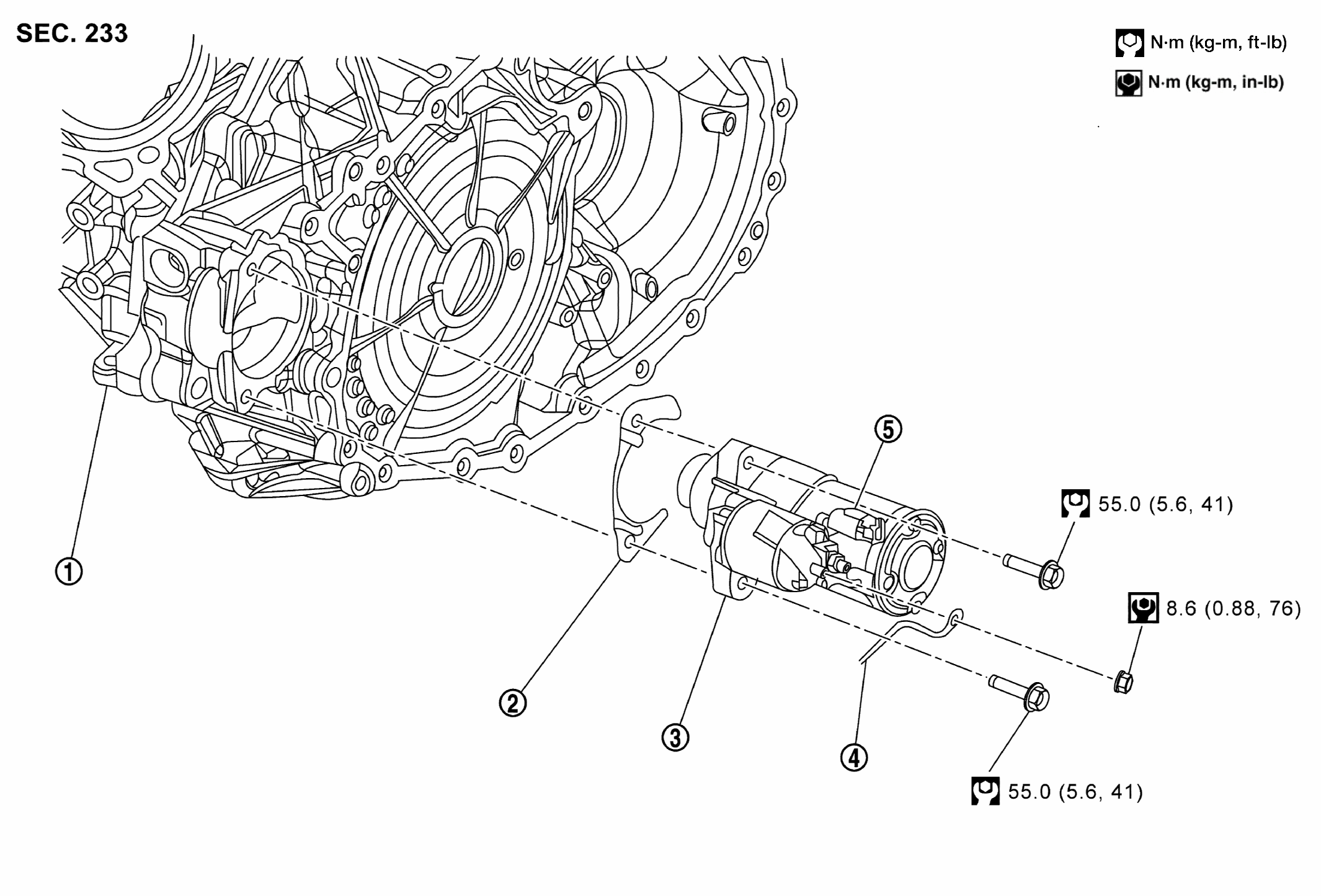

Fig 1: Starter Motor With Torque Specifications
GNSJSBIA5794GB-794Courtesy of NISSAN NORTH AMERICA, INC.
1. Cylinder block 2. Shim 3. Starter motor
4. "B" terminal harness 5. "S" connector
BOLTIN : N•m (kg-m, in-lb)
BOLT : N•m (kg-m, ft-lb)
