Engine Control System (Introduction)
›
System Description
›
System
›
Engine Control System
›
Circuit Diagram
Circuit Diagram

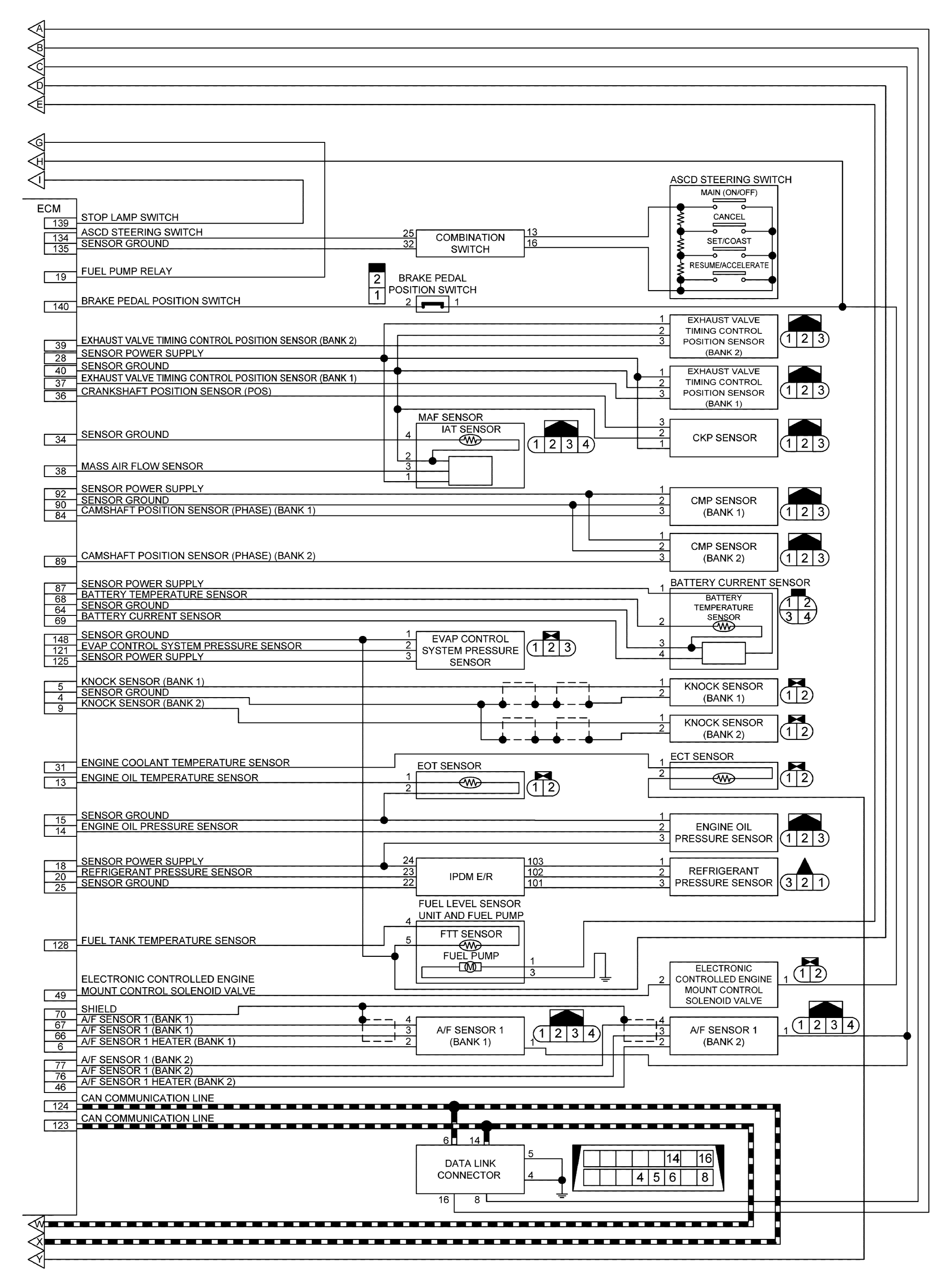

Fig 1: Engine Control System Circuit Diagram With Connector Terminal Identification (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

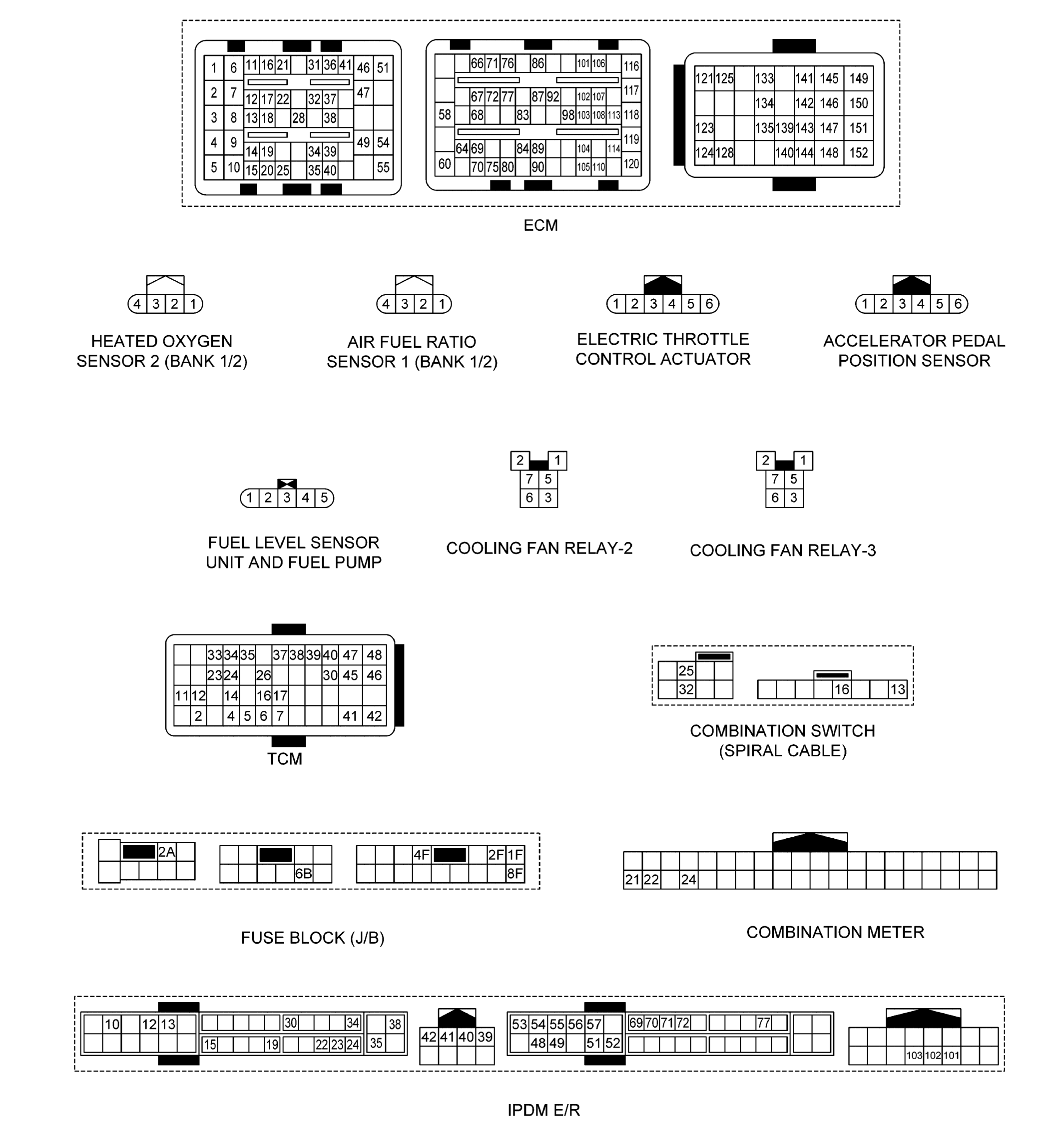

Fig 2: Engine Control System Circuit Diagram With Connector Terminal Identification (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

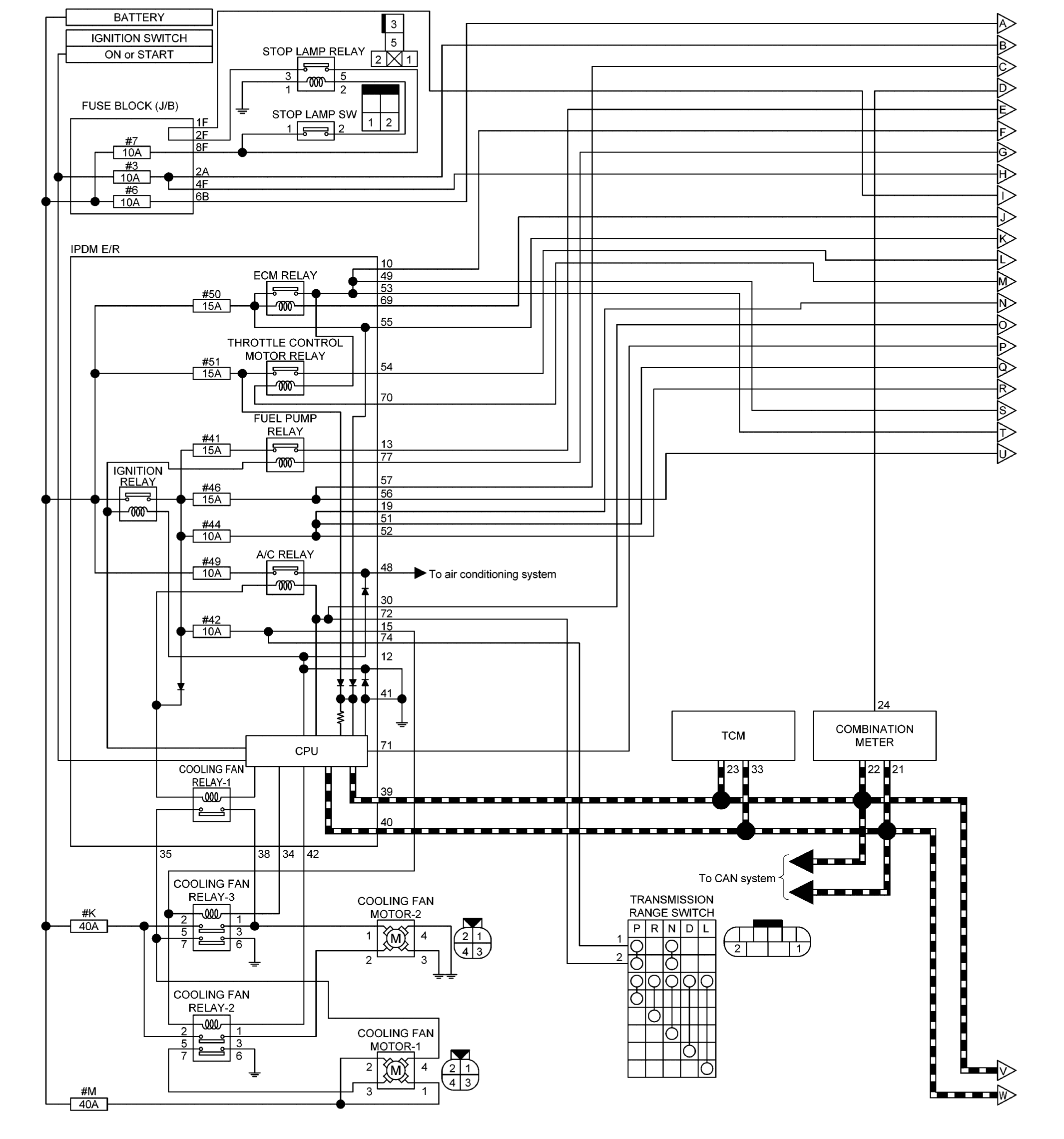

Fig 3: Engine Control System Circuit Diagram With Connector Terminal Identification (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

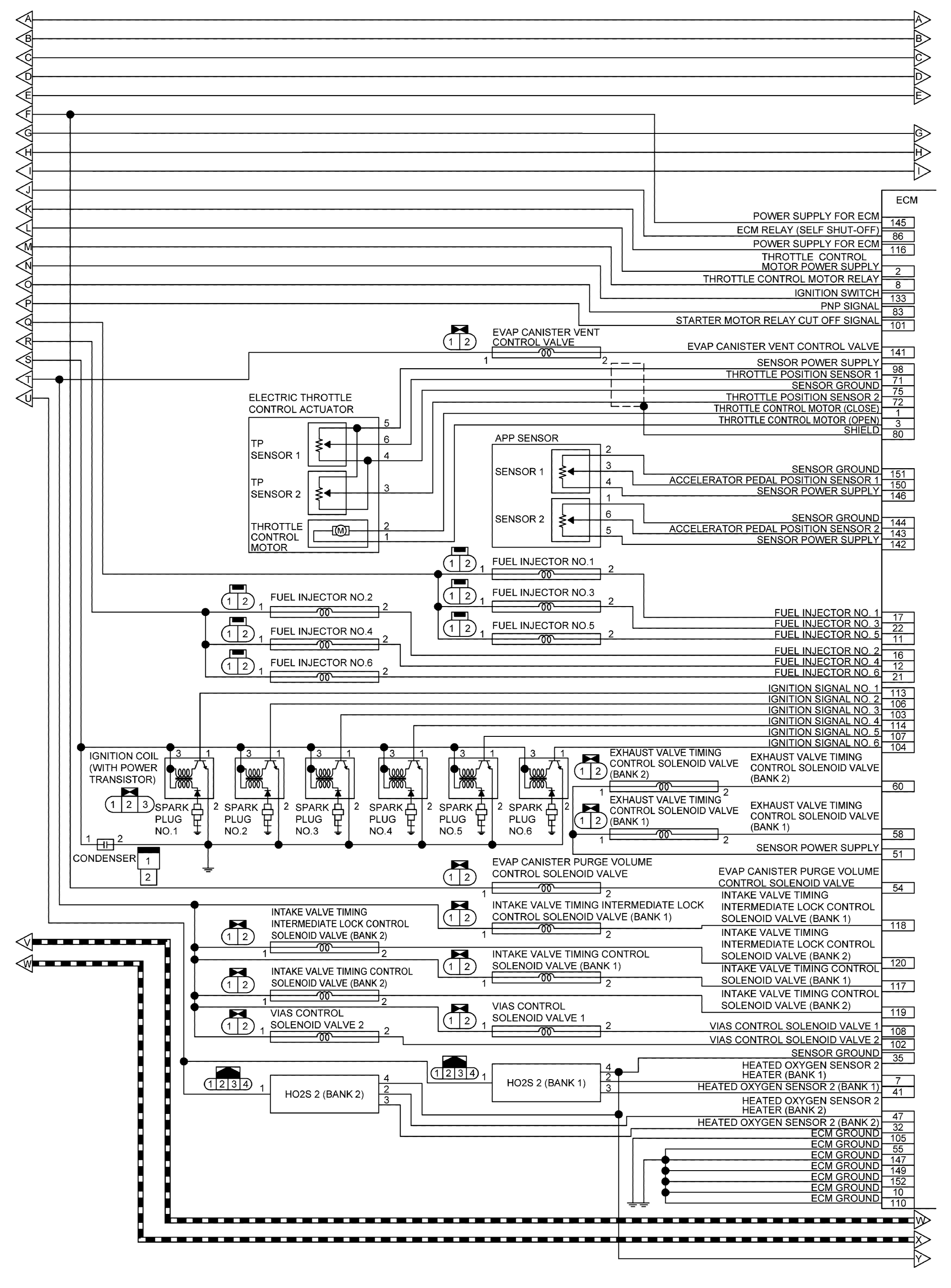

Fig 4: Engine Control System Circuit Diagram With Connector Terminal Identification (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
