Exploded View With Torque Specifications

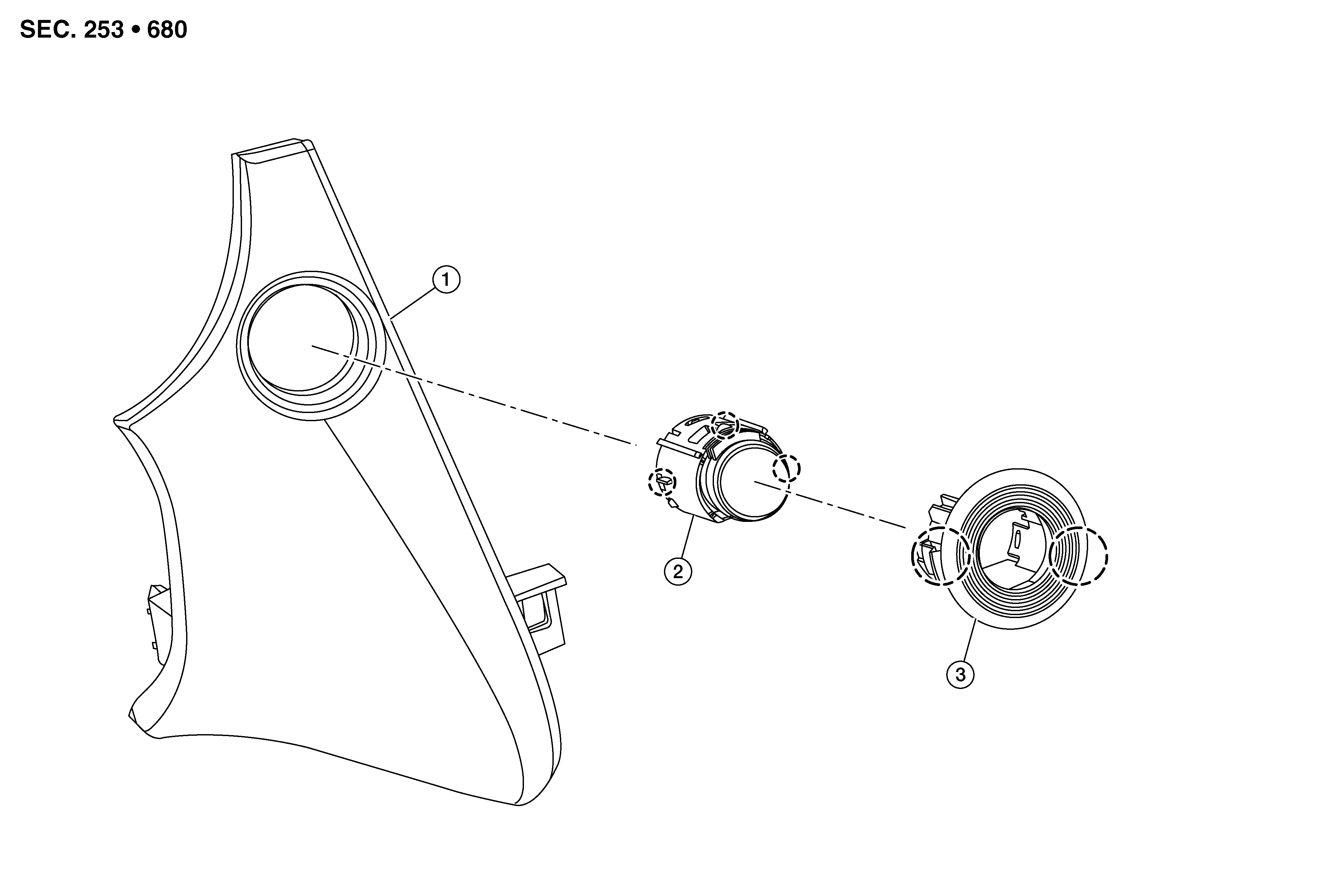

Fig 1: Exploded View Of Push-Button Ignition Switch
GNSAWKIA2910ZZ-910Courtesy of NISSAN NORTH AMERICA, INC.
1. Instrument finisher B 2. Push button ignition switch 3. NATS antenna amp.
MARU-H Pawl
