Exploded View With Torque Specifications

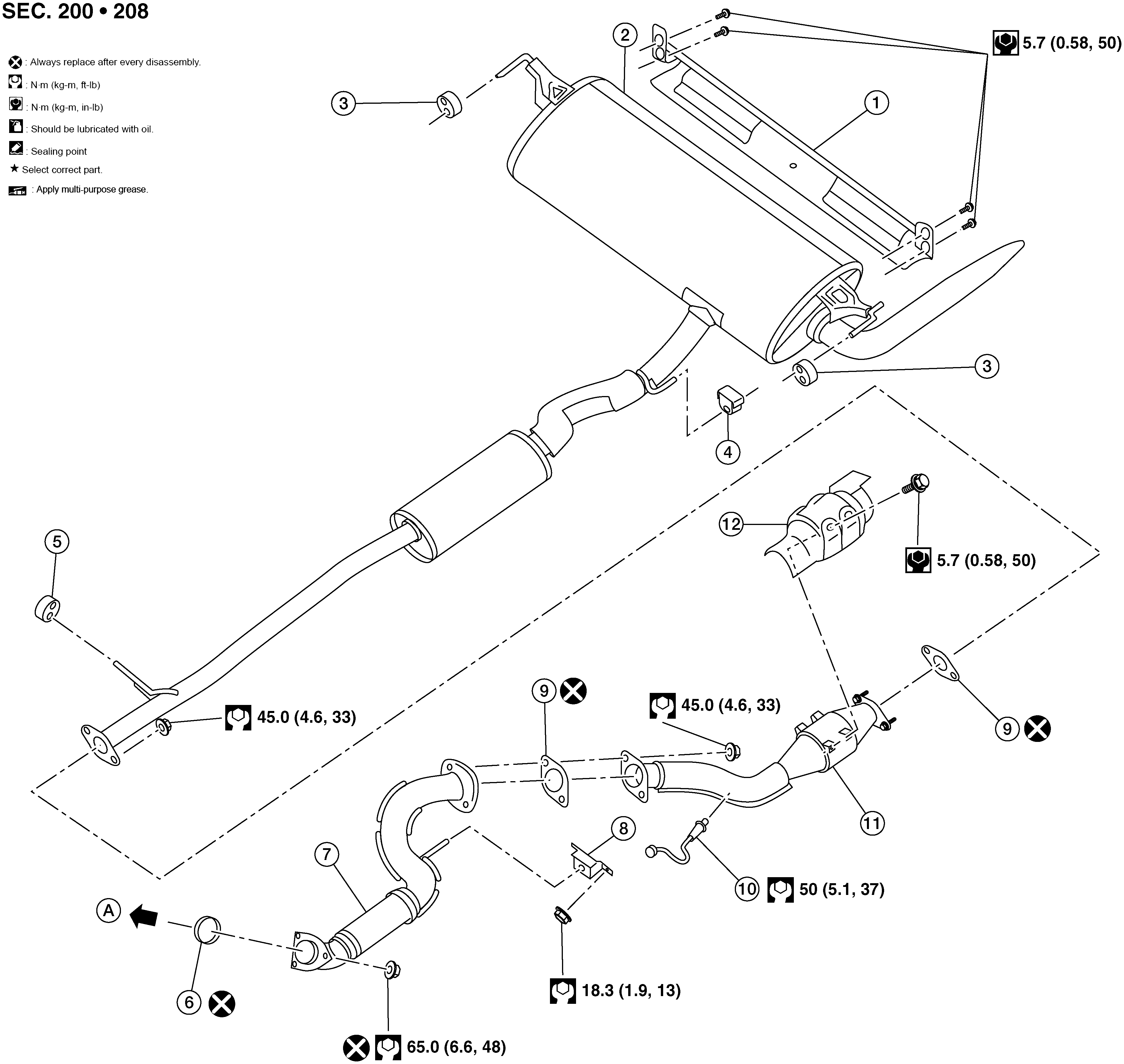

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Exhaust diffuser	2.	Muffler assembly	3.	Mounting rubber
4.	Mounting rubber	5.	Mounting rubber	6.	Ring gasket
7.	Front exhaust tube	8.	Mounting rubber	9.	Exhaust gasket
10.	Heated oxygen sensor rear	11.	Center exhaust tube	12.	Catalyst shroud
A.	To exhaust manifold and three way catalyst
