Required Tools

• Distance sensor alignment kit 1-20-2851-1 in addition to one of the following:

  a) Hunter self-centering wheel adapter (Hunter wheel alignment tool)

  b) Special Service Tool kit 1-20-2722-1 (kit SCA W/Tire Clamp-ICC Aiming)

The following Distance sensor alignment kit (1-20-2851-1) is necessary to perform the Distance sensor alignment:

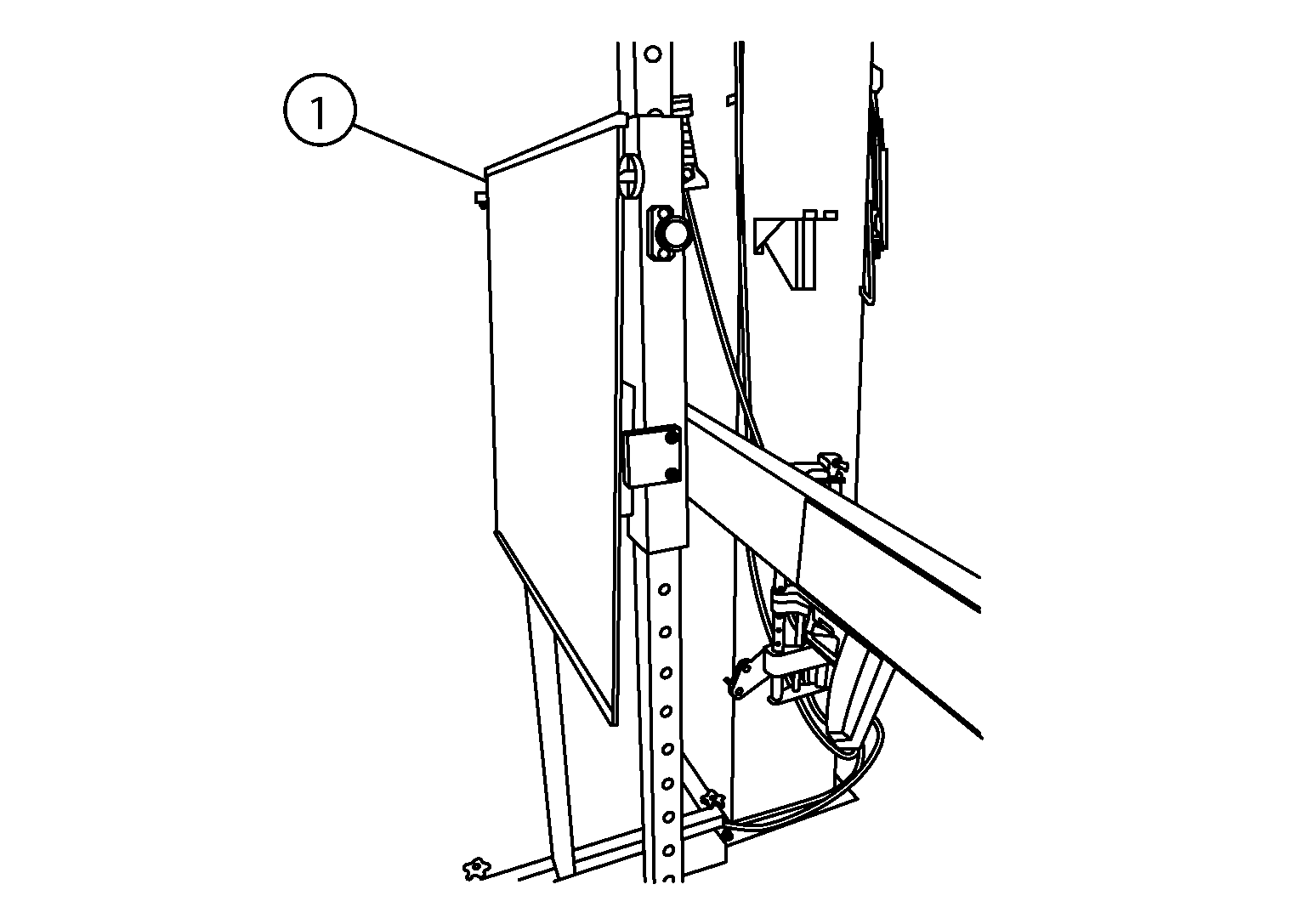

• Distance sensor target board (1).
  Fig 1: Distance Sensor Target Board

  Courtesy of NISSAN NORTH AMERICA, INC.

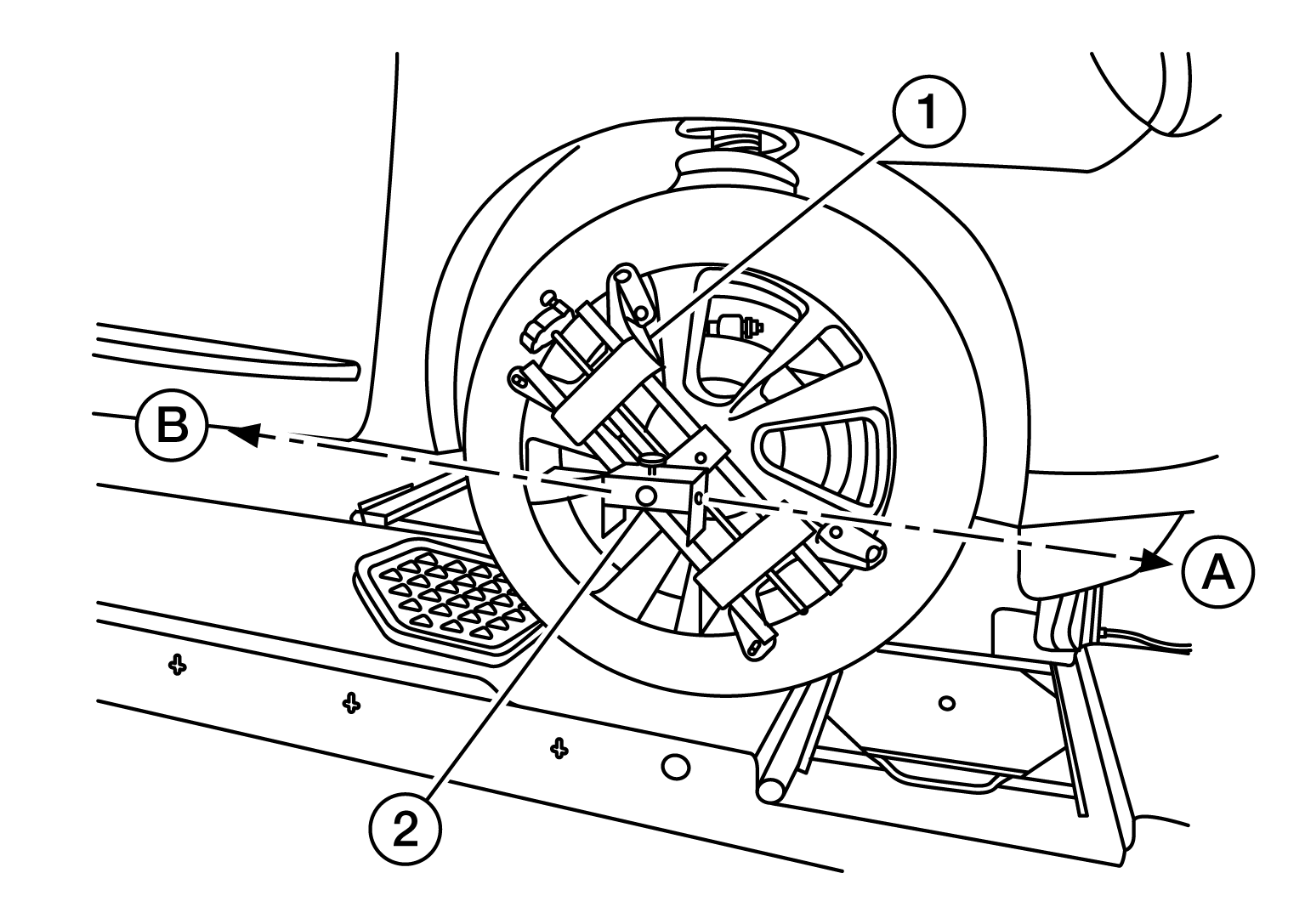

• Hunter self-centering wheel adapter (1) [shown with laser assembly (2) installed] (Hunter alignment rack head may be substituted).
  Fig 2: Self-Centering Wheel Adapter And Laser Assembly

  Courtesy of NISSAN NORTH AMERICA, INC.
  NOTE:

  Dealers that are not equipped with a Hunter self-centering wheel adapter will require the following kit:

  Part No. 1-20-2722-1-IF (kit SCA W/Tire Clamp-Distance Sensor Aiming)

• Laser assembly (with bi-directional laser beam) as shown in the illustration.

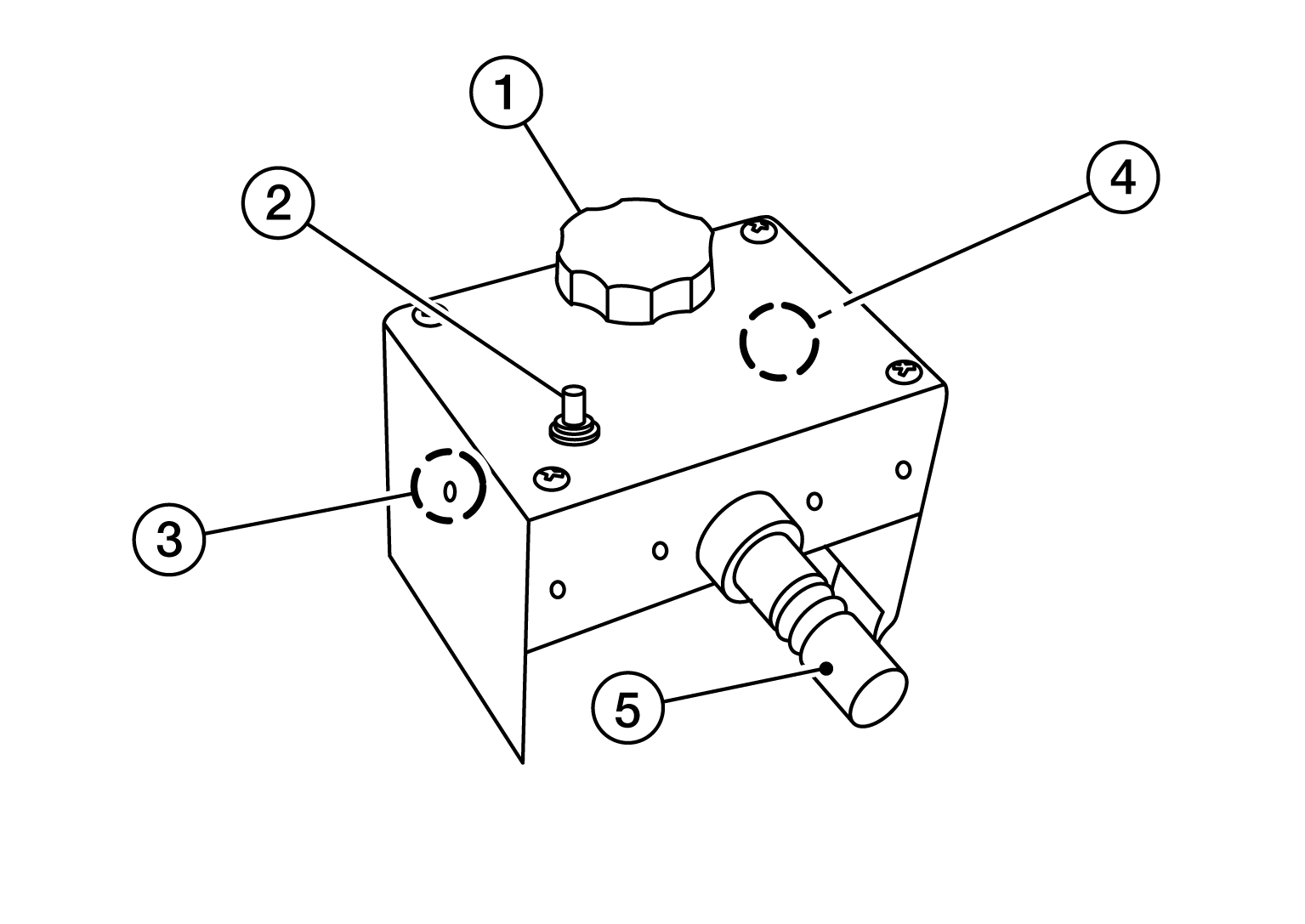

  Fig 3: Laser Assembly Related Components

  Courtesy of NISSAN NORTH AMERICA, INC.
  1. Tightening knob (1)
  2. Power ON/OFF button (2)
  3. Front laser beam opening (3)
  4. Rear laser beam opening (4)
  5. Attaching shaft (5)
• Stationary target as shown in the illustration.

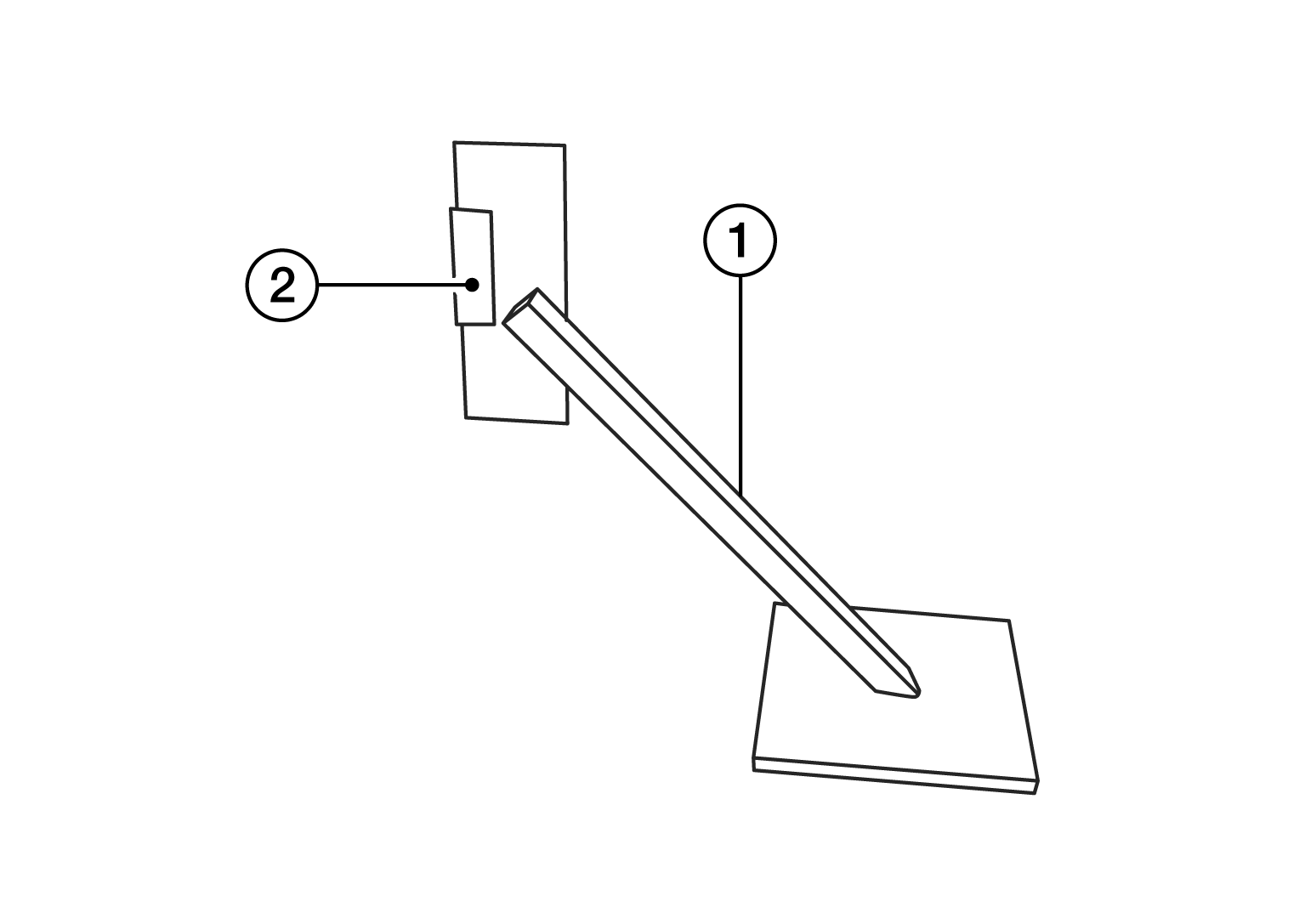

  Fig 4: Stationary Target And Laser Signal Reception Plate

  Courtesy of NISSAN NORTH AMERICA, INC.
  1. Stationary target (1)
  2. Laser signal reception plate (2)
• Distance chain (not shown).
