Setting The Distance Sensor Target Board: Description

Accurate adjustment of the radar alignment requires that the distance sensor target board be accurately positioned.

CAUTION:

If the radar alignment is adjusted with the distance sensor target board in the incorrect position, the distance system will not function properly or the alignment procedure may not be completed successfully.

DISTANCE SENSOR TARGET BOARD FINAL SETTING
1. With the distance sensor target board arm extended, the laser beam (1) emitted by the laser assembly (A) will be reflected back (B) toward the laser assembly.

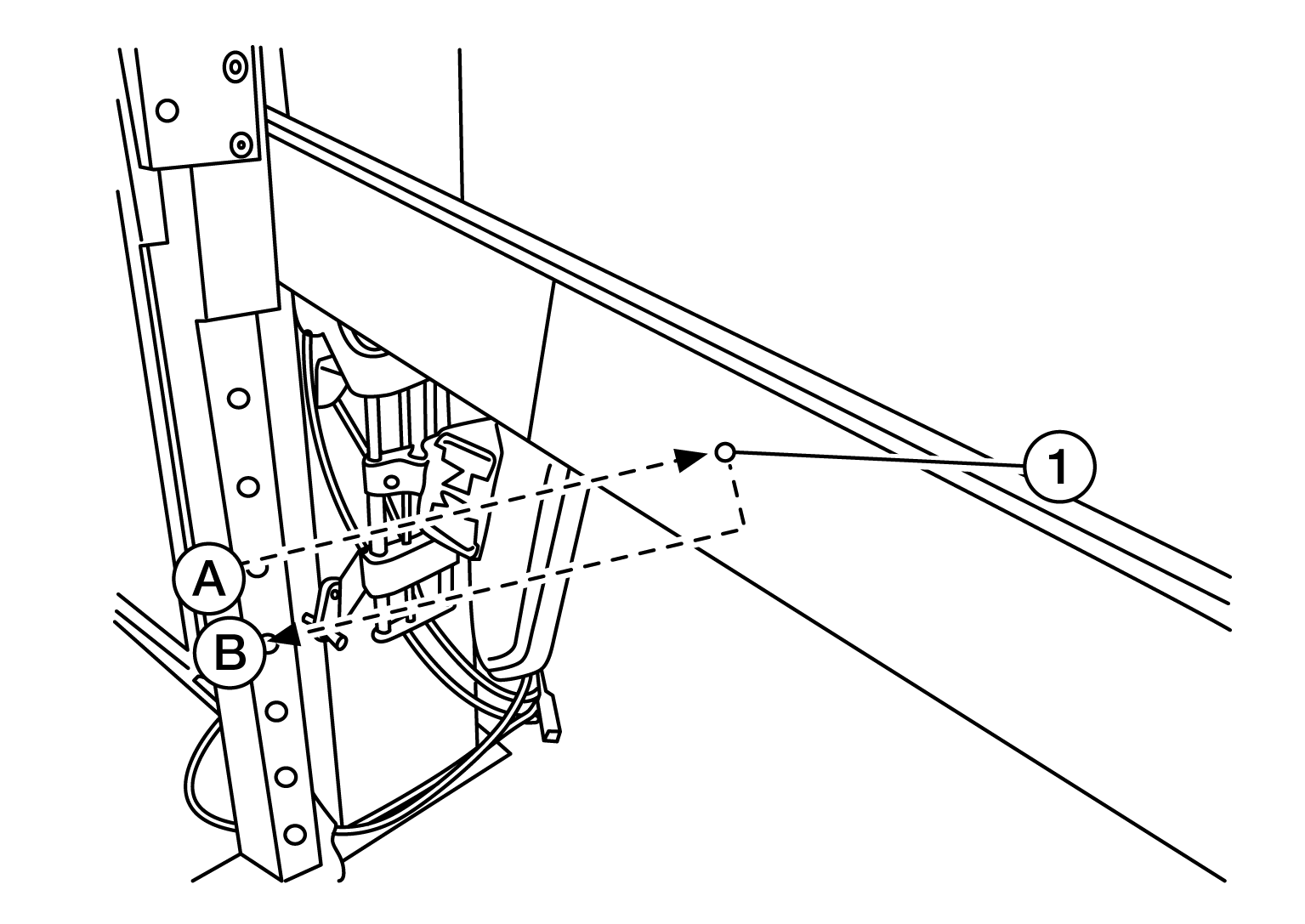

  Fig 1: Setting ICC Target Board
  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:
  When adjusted properly, reflected laser beam (B) must align with emitted laser beam (A) and the two laser beams will be seen as one.
2. Rotate the distance sensor target board to achieve the necessary horizontal adjustment.
3. Adjust the distance sensor target board leveling screws to achieve the necessary vertical adjustment.
4. The figure shown illustrates the laser beam (A) emitted by the laser assembly (1) and its reflection (B) off of the distance sensor target board arm.

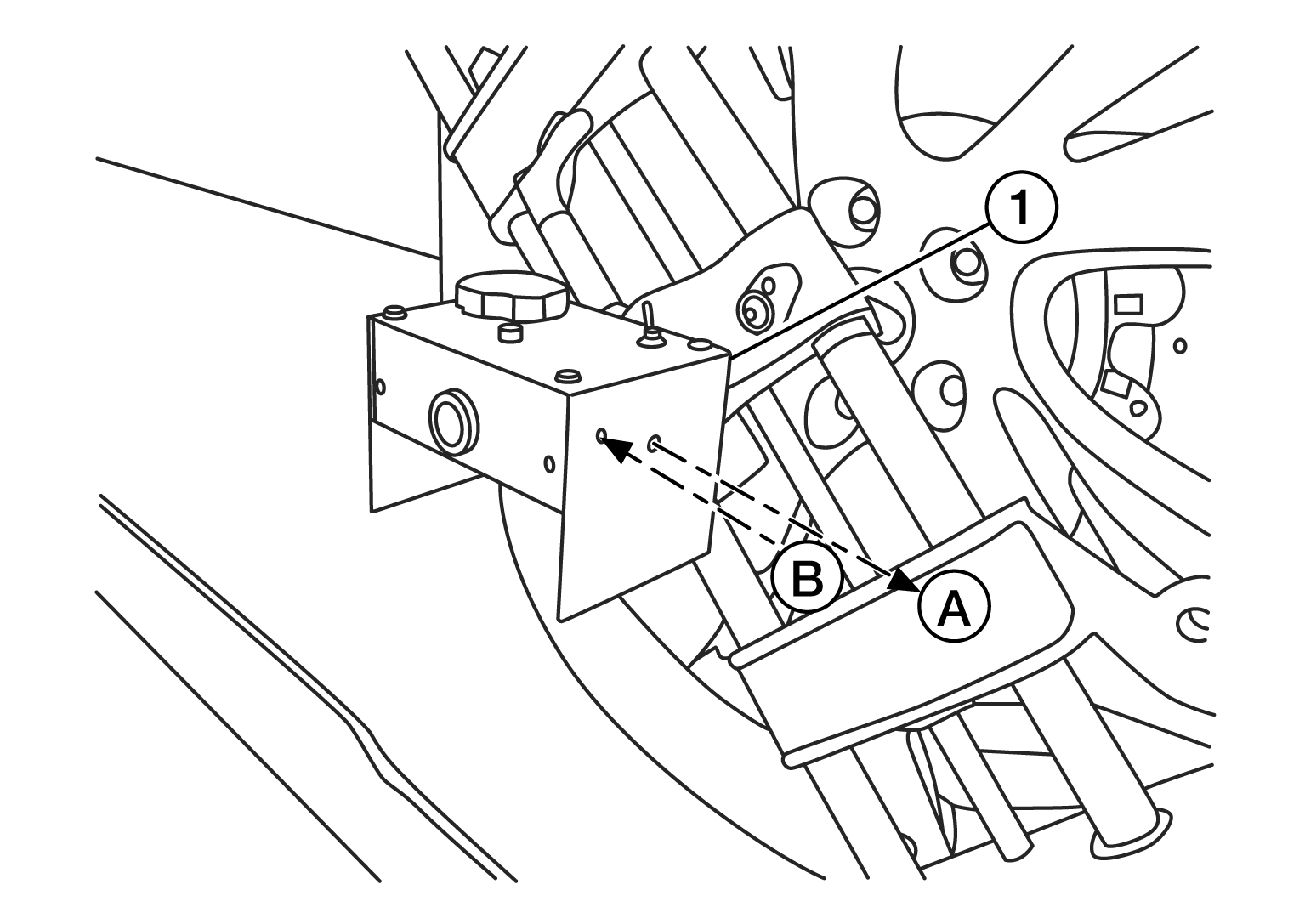

  Fig 2: Laser Beam Reflection From ICC Target Board Arm
  Courtesy of NISSAN NORTH AMERICA, INC.
GO TO STEP 2.

CHECK THE POSITION OF THE DISTANCE SENSOR TARGET BOARD

Do not place anything other than the distance sensor target board in the space shown in front of the vehicle (view from top).

Fig 3: ICC Target Board Area

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Distance sensor target board arm	2.	Distance sensor target board	3.	Distance sensor
4.	Vehicle	_A .	Distance between front wheel and laser beam (D_f)	B.	Distance between rear wheel and laser beam (D_r)
C.	Height between front laser beam and ground (H_f)	D.	Height between rear laser beam and ground (H_r)	E.	Distance sensor target board center position (Position 2)
L.	1 - 1.5 m (39.3 - 59 in.)

Refer to DISTANCE SENSOR ADJUSTMENT .
