Security Control System (With Intelligent Key System)
›
System Description
›
System
›
Intelligent Key System/Engine Start Function
›
System Diagram
System Diagram

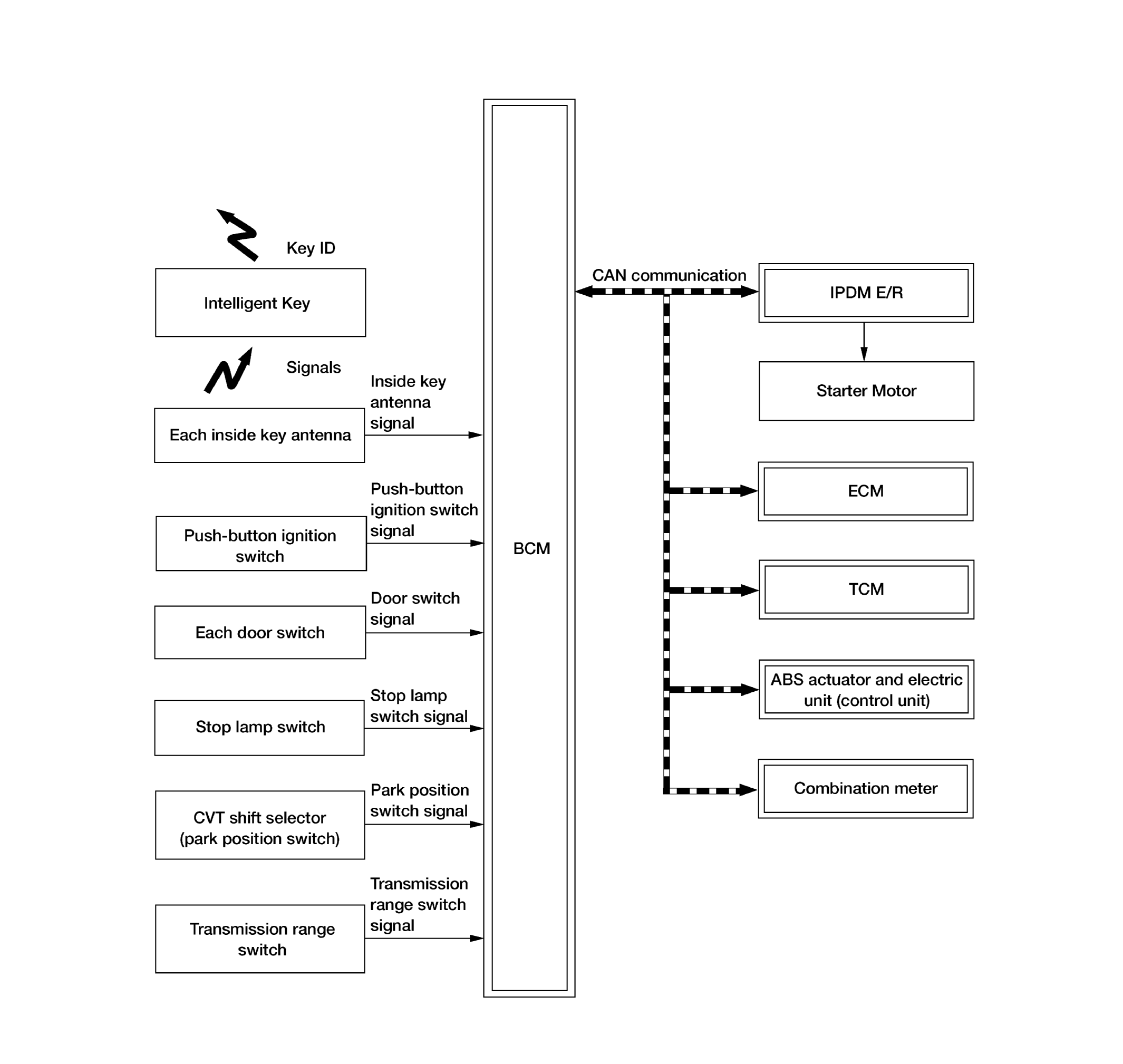

Fig 1: Intelligent Key System/Engine Start Function System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
