Exploded View With Torque Specifications: Removal

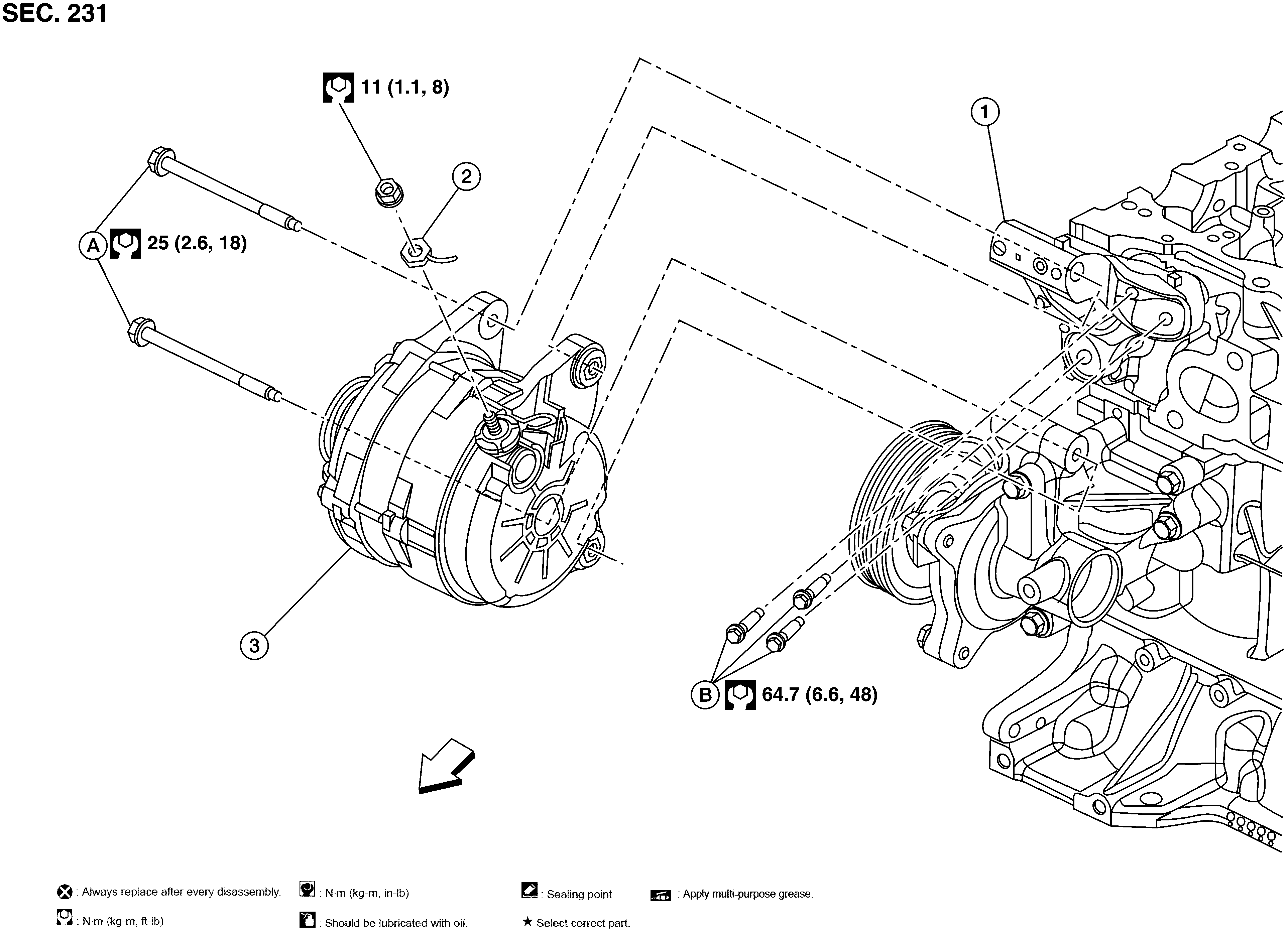

Fig 1: Exploded View Of Generator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Generator bracket	2.	"B" terminal harness	3.	Generator
A.	Refer to INSTALLATION	B.	Refer to INSTALLATION		Front
