Exploded View With Torque Specifications

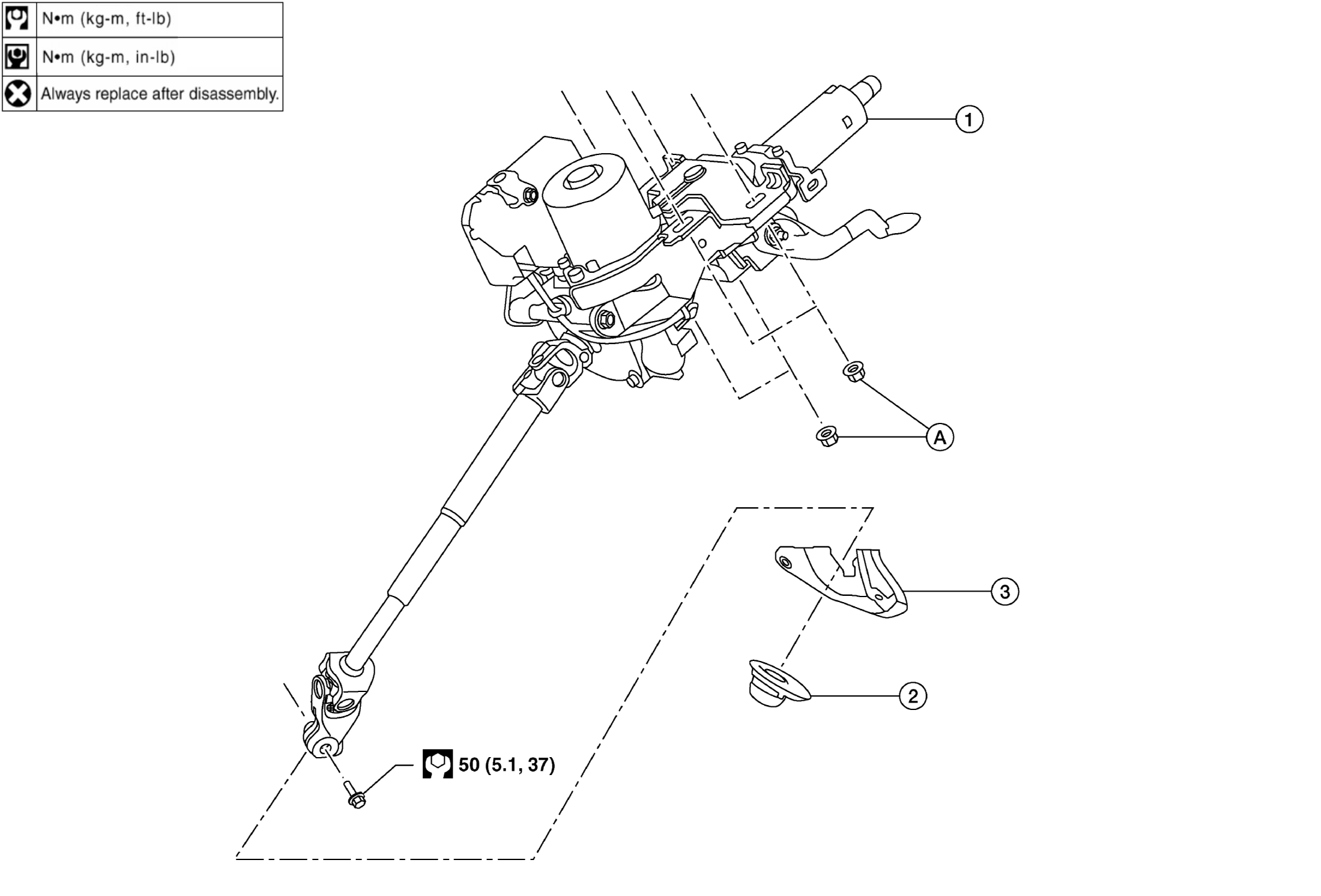

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering column	2.	Lower cover seal	3.	Column hole cover
A.	Refer to INSTALLATION
