Component Location
WARNING:
This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.

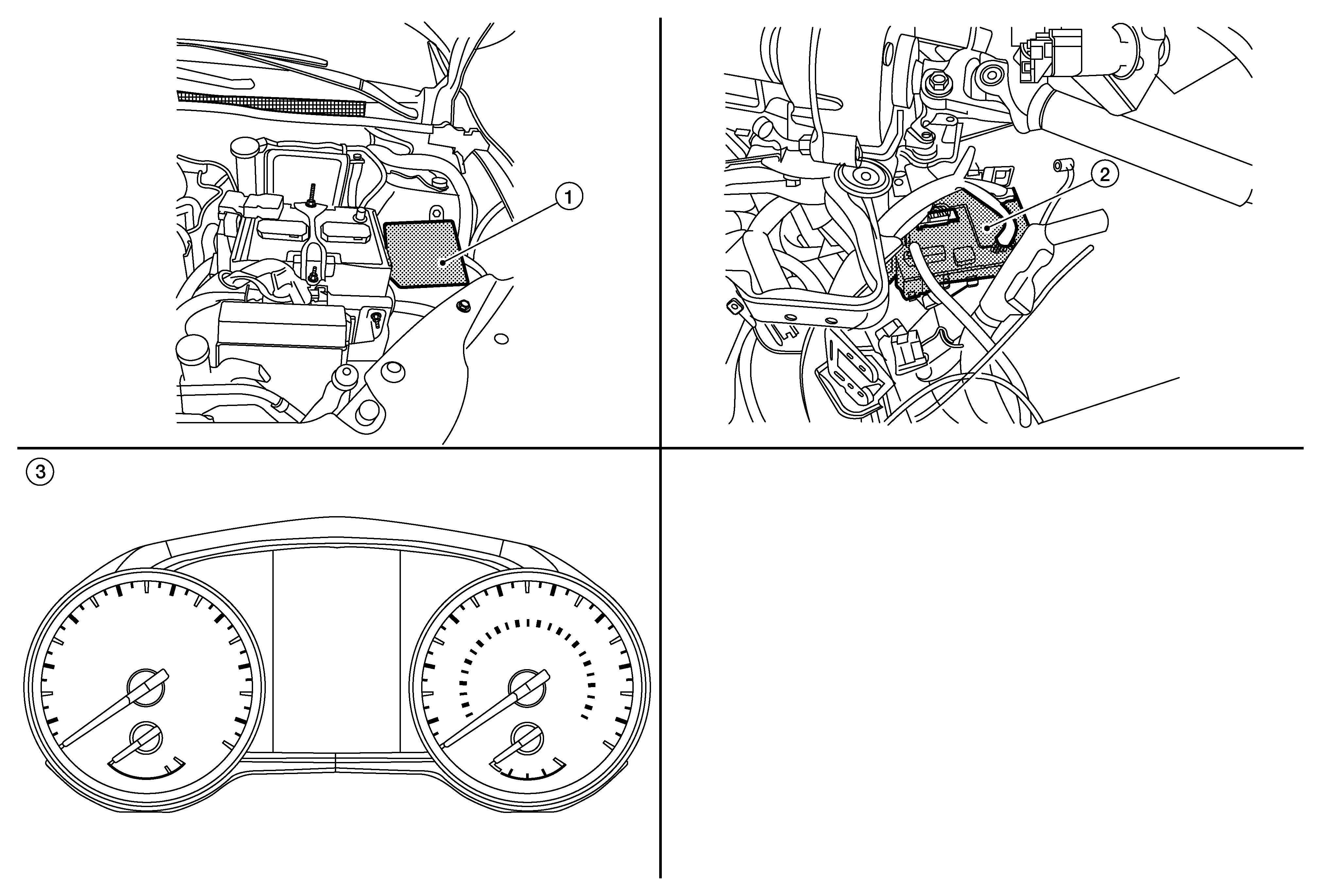

1
IPDM E/R
2
BCM (view with instrument panel removed)
3
Combination meter (Type B)
