Disassembly And Assembly: Disassembly

Remove the center console assembly. Refer to REMOVAL AND INSTALLATION .
Remove the center console upper finisher.
1. Remove the center console upper finisher screws (A).

  Fig 1: Center Console Upper Finisher Screws (A) And Center Console Upper Finisher (1)
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Release the center console upper finisher pawls using a suitable tool.
  : Pawl
3. Remove the center console upper finisher (1).
Remove the center console rear finisher.
1. Release the center console rear finisher cover pawls using a suitable tool, then remove the center console rear finisher cover (1).

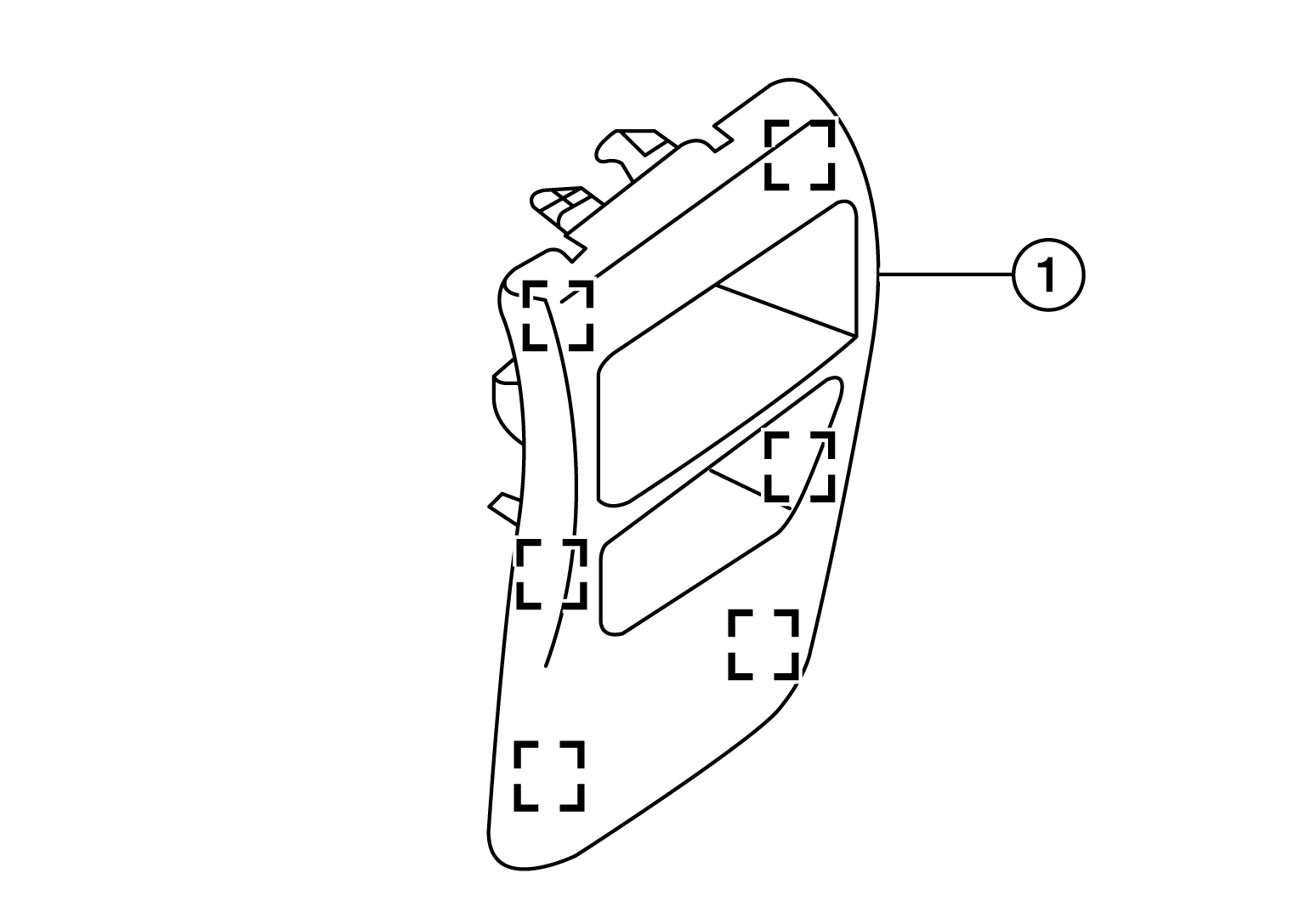

  Fig 2: Center Console Rear Finisher Cover (1)
  Courtesy of NISSAN NORTH AMERICA, INC.

  : Pawl
2. Release the center console rear finisher clips using a suitable tool, then remove the center console rear finisher (1).
  : Metal clip

  Fig 3: View Of Center Console Rear Finisher Clips And Center Console Rear Finisher (1)
  Courtesy of NISSAN NORTH AMERICA, INC.
Release the center console accessory finisher pawls using a suitable tool and remove.
