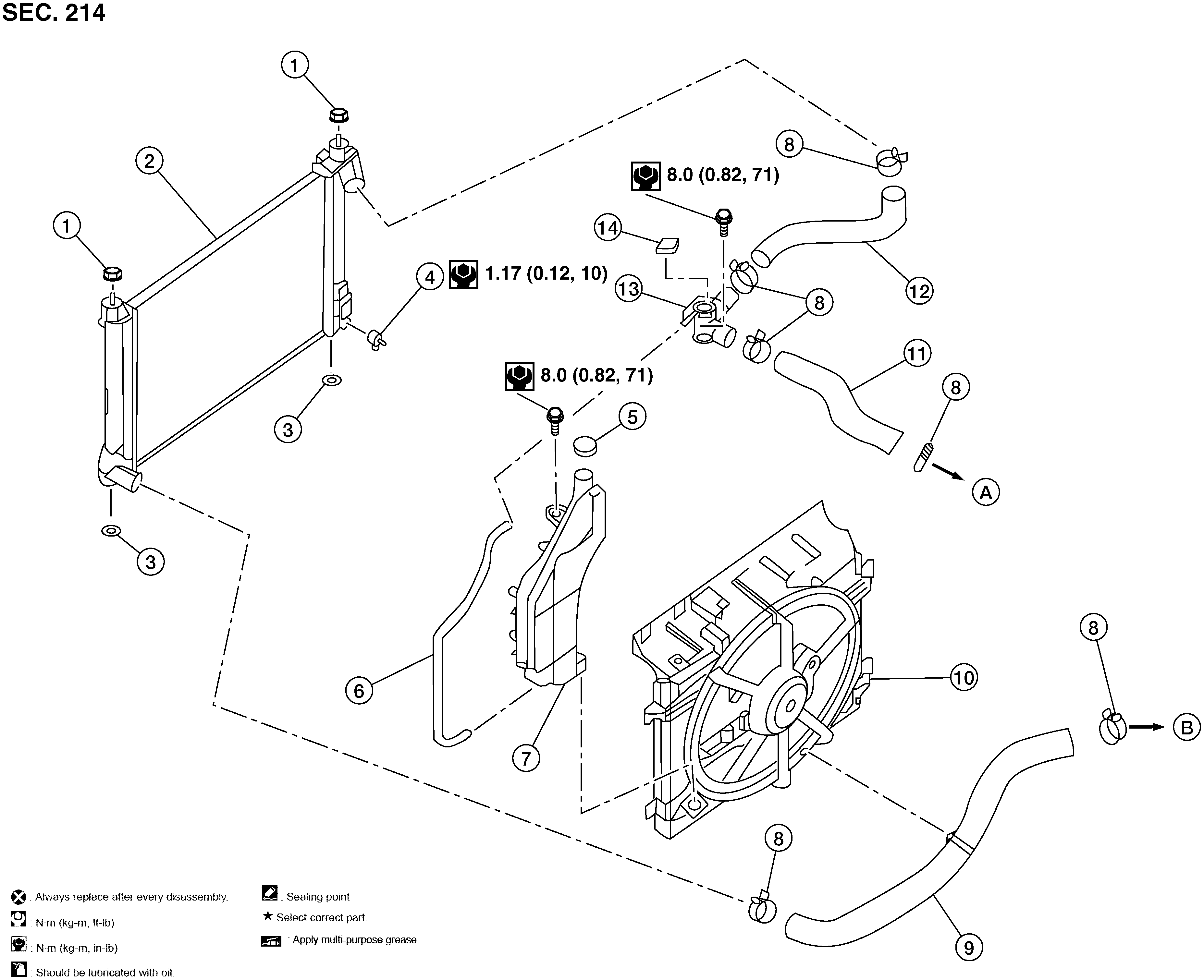

Exploded View With Torque Specifications
| 1. | Mounting rubber (upper) | 2. | Radiator | 3. | Mounting rubber (lower) |
| 4. | Radiator drain plug | 5. | Reservoir tank cap | 6. | Reservoir tank hose |
| 7. | Reservoir tank | 8. | Clamp | 9. | Radiator hose (lower) |
| 10. | Fan shroud and motor assembly | 11. | Radiator hose (upper) | 12. | Filler neck hose |
| 13. | Filler neck | 14. | Radiator filler cap | A. | To water outlet |
| B. | To water inlet |
