Exploded View With Torque Specifications

CVT MODELS

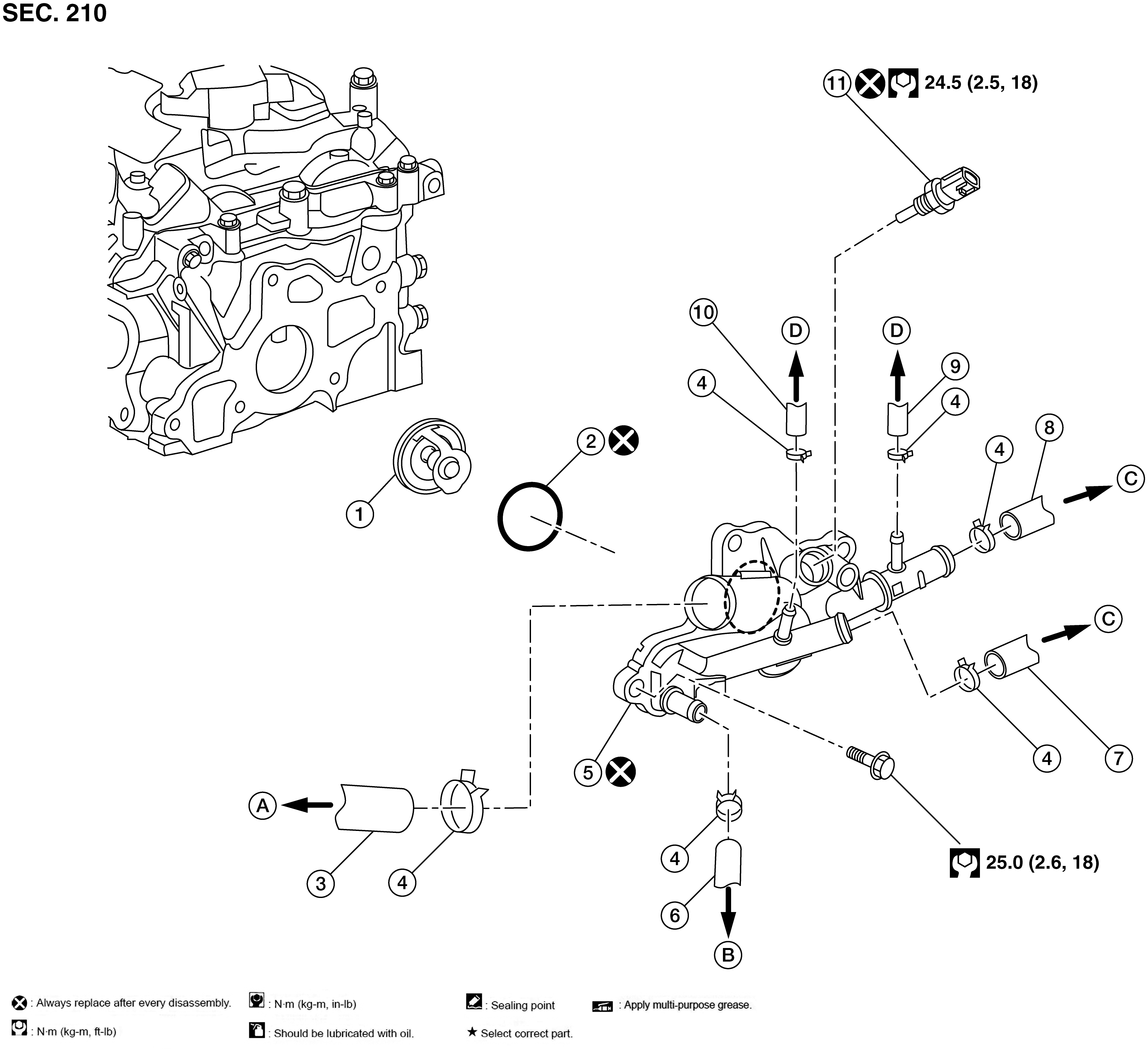

Fig 1: Exploded View Of Water Outlet With Torque Specifications (1 Of 2)
GNSAWBIA1457ZZ-457Courtesy of NISSAN NORTH AMERICA, INC.
1. Water control valve 2. Rubber ring 3. Radiator hose (upper)
4. Clamp 5. Water outlet 6. CVT oil warmer hose (outlet)
7. Heater hose (inlet) 8. Heater hose (outlet) 9. Electric throttle control actuator hose (outlet)
10. Electric throttle control actuator hose (inlet) 11. Engine coolant temperature sensor A. To filler neck
B. To CVT oil warmer C. To heater core D. To electric throttle control actuator

M/T MODELS

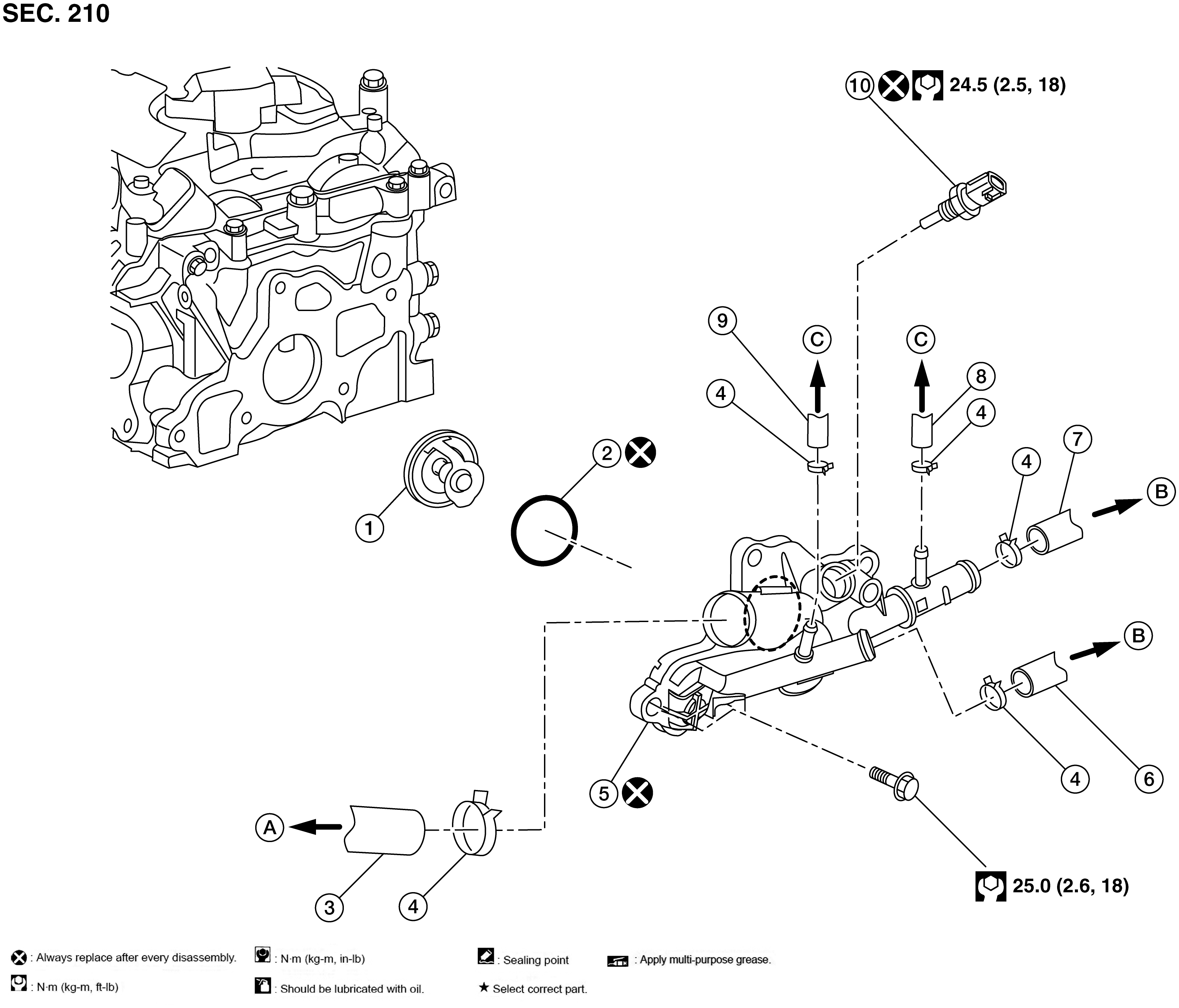

Fig 2: Exploded View Of Water Outlet With Torque Specifications (2 Of 2)
GNSAWBIA1456ZZ-456Courtesy of NISSAN NORTH AMERICA, INC.
1. Water control valve 2. Rubber ring 3. Radiator hose (upper)
4. Clamp 5. Water outlet 6. Heater hose (inlet)
7. Heater hose (outlet) 8. Electric throttle control actuator hose (outlet) 9. Electric throttle control actuator hose (inlet)
10. Engine coolant temperature sensor A. To filler neck B. To heater core
C. To electric throttle control actuator
