Engine Cooling System Schematic

CVT MODELS

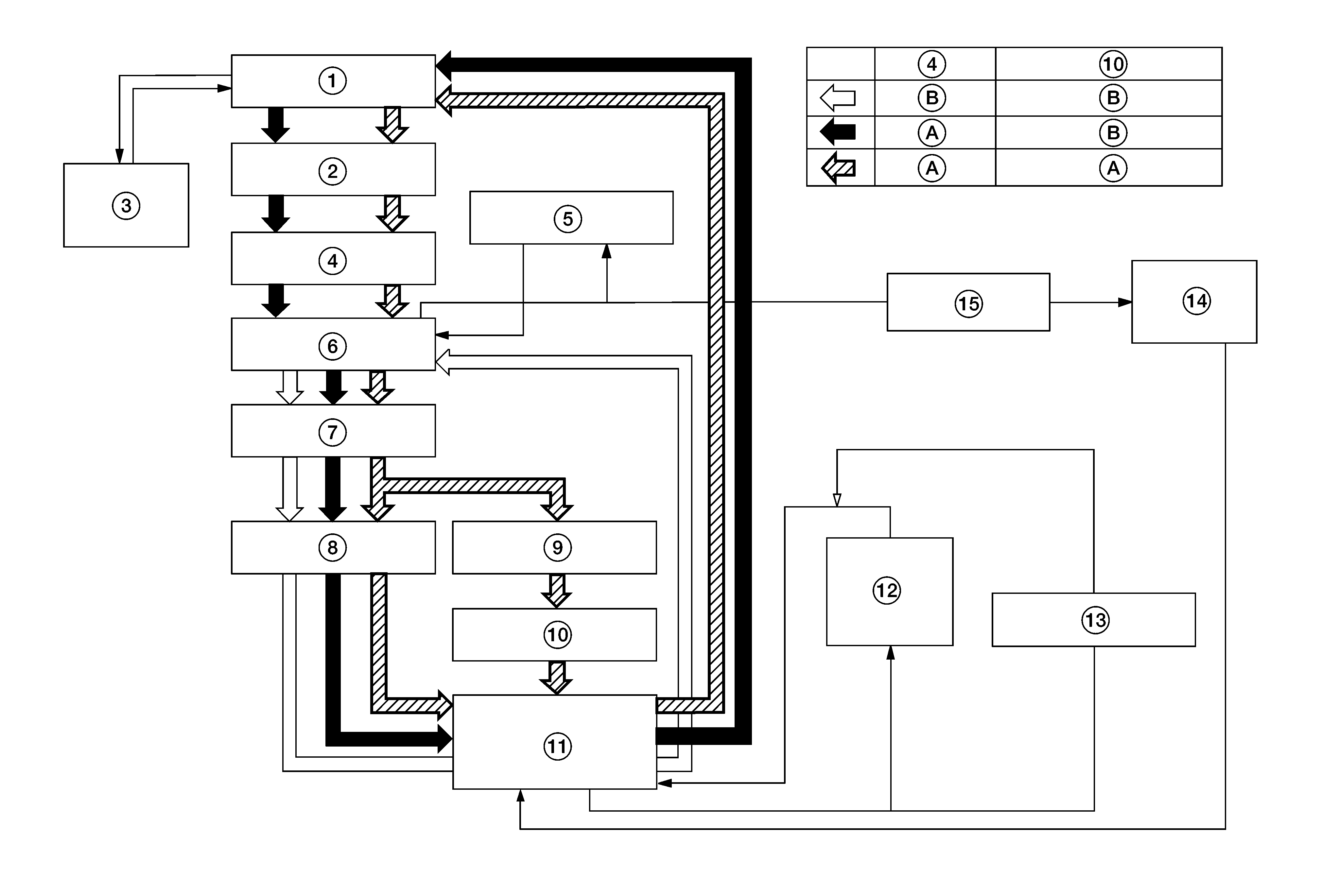

Fig 1: Engine Cooling System Schematic (1 Of 4)

GNSAWBIA1458ZZ-458

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Radiator	2.	Water inlet	3.	Reservoir tank
4.	Thermostat	5.	Engine oil cooler	6.	Thermostat housing
7.	Water pump	8.	Cylinder head	9.	Cylinder block
10.	Water control valve	11.	Water outlet	12.	Heater
13.	Electric throttle control actuator	14.	CVT oil warmer	15.	Heater thermostat
A.	Open	B.	Closed

CVT MODELS

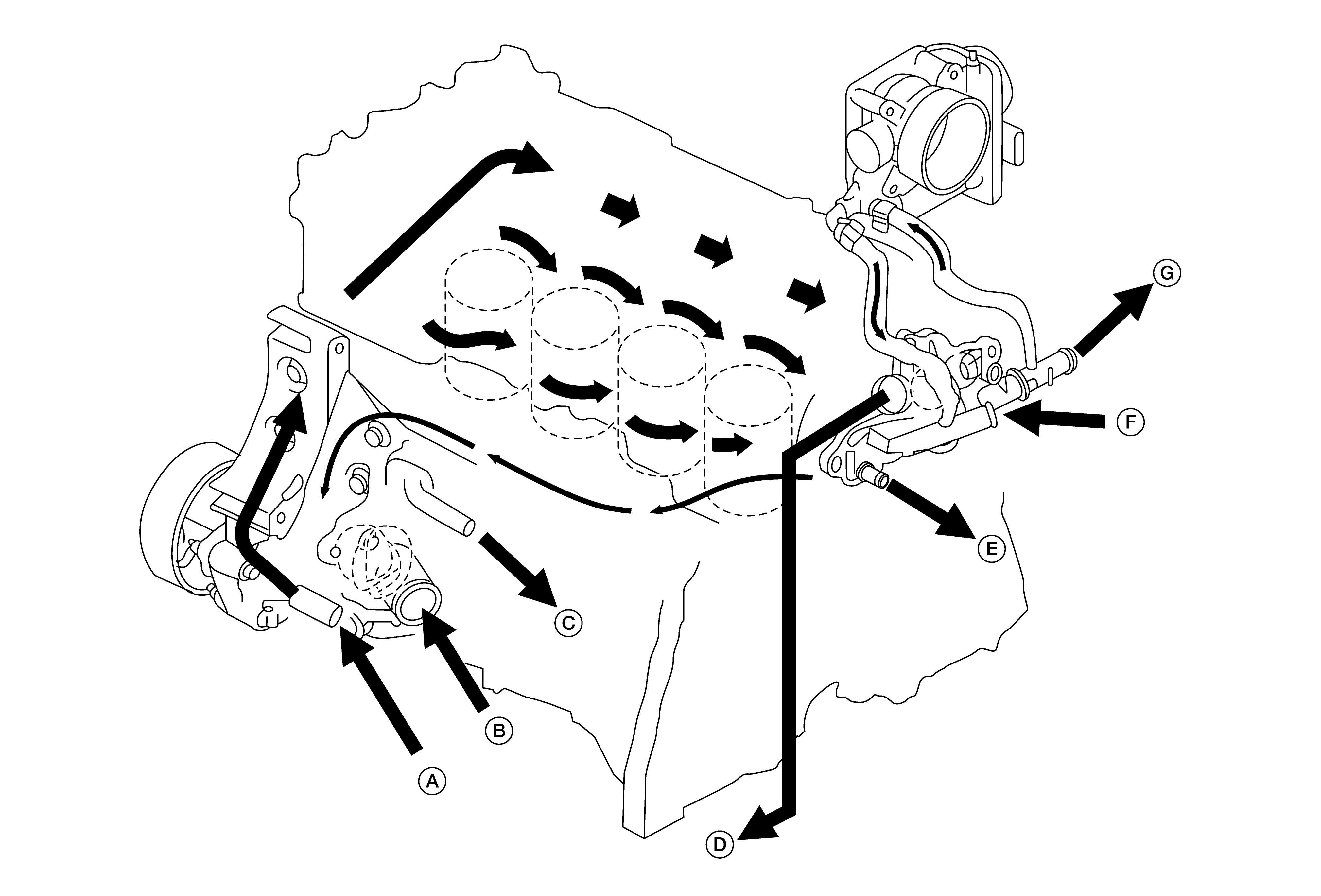

Fig 2: Engine Cooling System Schematic (2 Of 4)

GNSALBIA0978ZZ-978

Courtesy of NISSAN NORTH AMERICA, INC.

A.	From heater thermostat	B.	From radiator	C.	To engine oil cooler
D.	To filler neck	E.	To CVT oil warmer	F.	From heater core
G.	To heater core

M/T MODELS

Fig 3: Engine Cooling System Schematic (3 Of 4)

GNSAWBIA1459ZZ-459

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Radiator	2.	Water inlet	3.	Reservoir tank
4.	Thermostat	5.	Engine oil cooler	6.	Thermostat housing
7.	Water pump	8.	Cylinder head	9.	Cylinder block
10.	Water control valve	11.	Water outlet	12.	Heater
13.	Electric throttle control actuator	A.	Open	B.	Closed

M/T MODELS

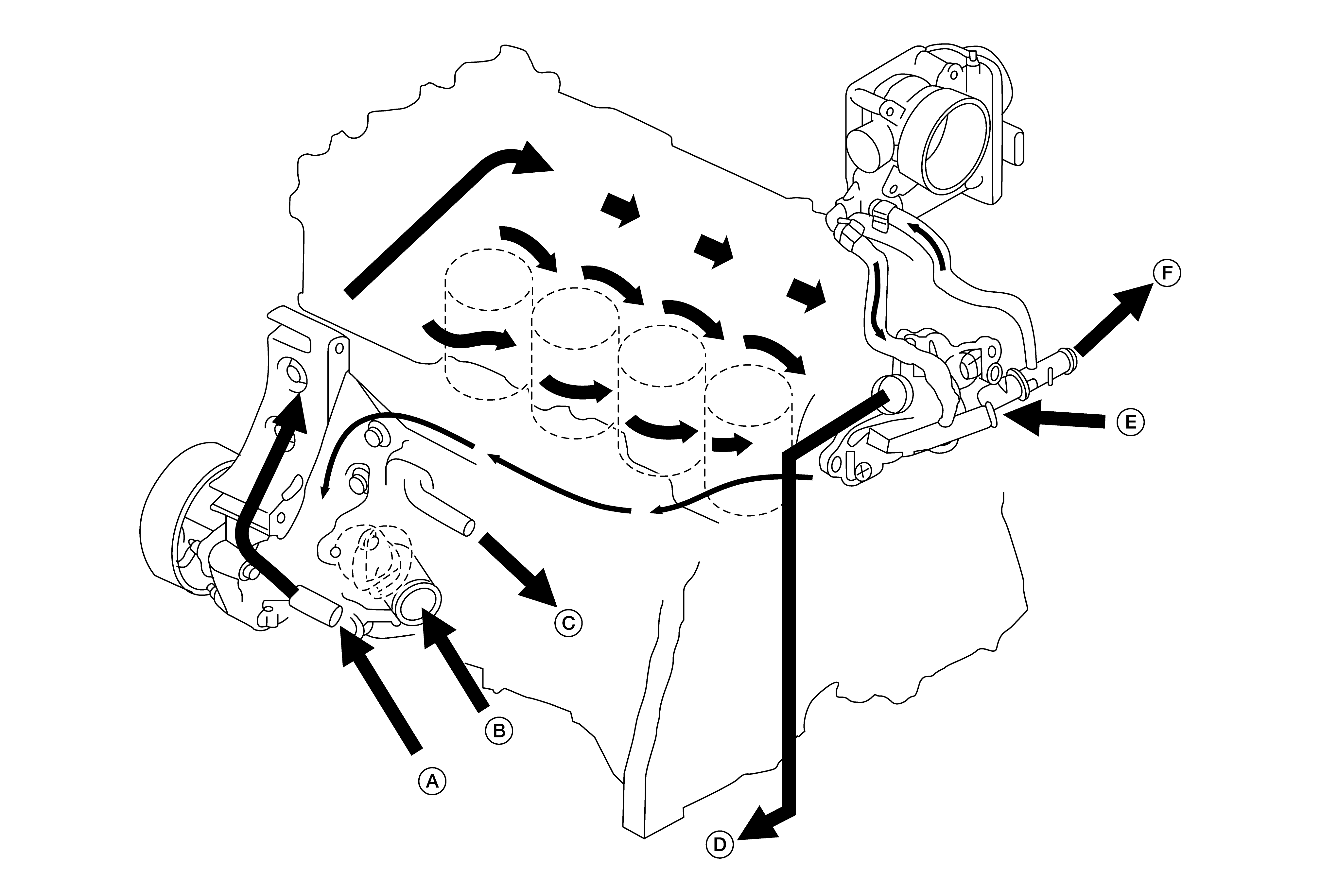

Fig 4: Engine Cooling System Schematic (4 Of 4)

GNSALBIA0977ZZ-977

Courtesy of NISSAN NORTH AMERICA, INC.

A.	From heater thermostat	B.	From radiator	C.	To engine oil cooler
D.	To filler neck	E.	From heater core	F.	To heater core
