Exploded View
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

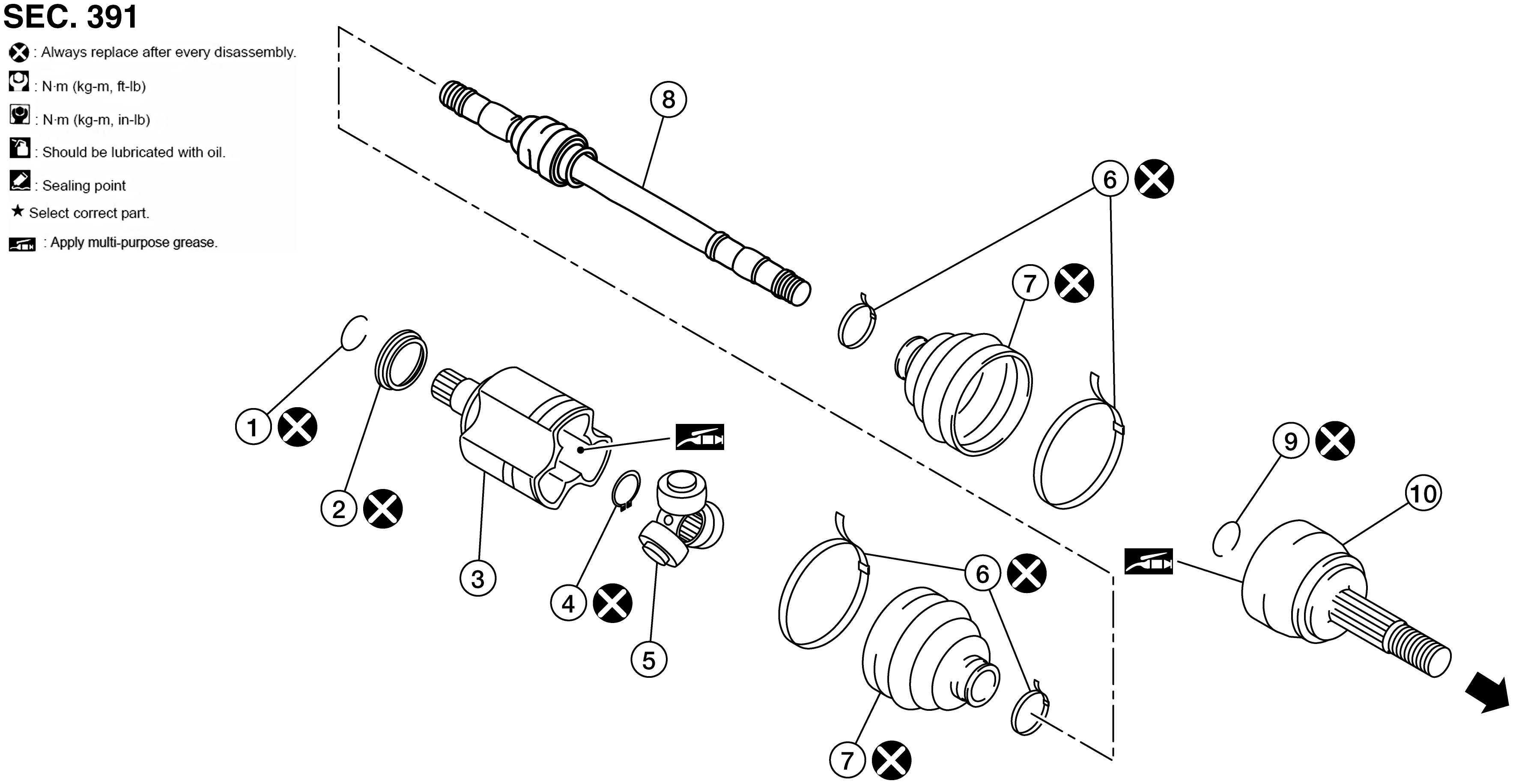

(LH)
| 1. | Circular clip | 2. | Dust shield | 3. | Slide joint housing |
| 4. | Snap ring | 5. | Spider assembly | 6. | Boot band |
| 7. | Boot | 8. | Shaft | 9. | Circular clip |
| 10. | Joint sub-assembly | Wheel side | |||

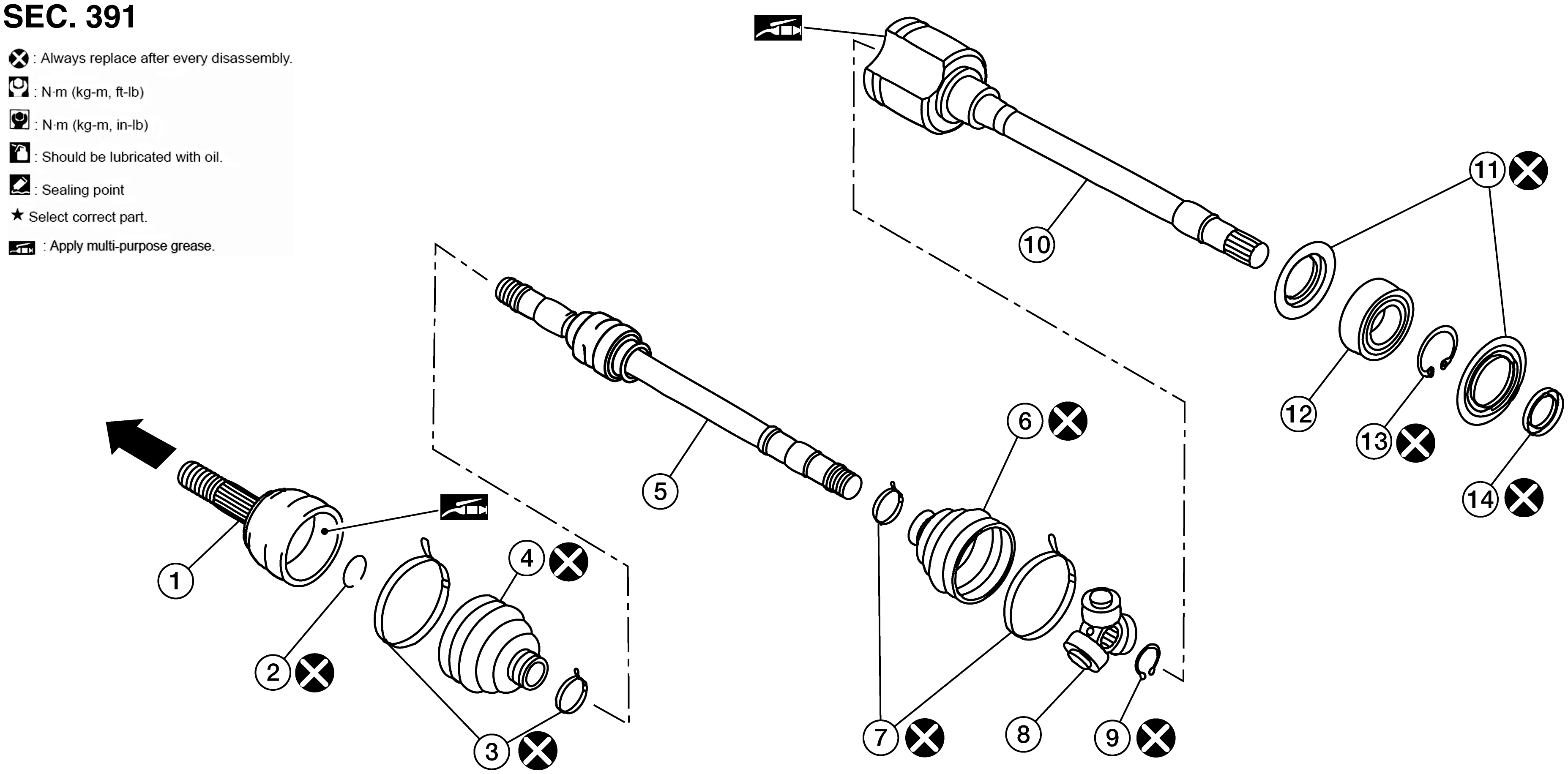

(RH) 6M/T
| 1. | Joint sub-assembly | 2. | Circular clip | 3. | Boot band |
| 4. | Boot | 5. | Shaft | 6. | Boot |
| 7. | Boot band | 8. | Spider assembly | 9. | Snap ring |
| 10. | Slide joint housing | 11. | Dust shield | 12. | Support bearing |
| 13. | Snap ring | 14. | Dust shield | Wheel side |
(RH) Except 6M/T
| 1. | Joint sub-assembly | 2. | Circular clip | 3. | Boot band |
| 4. | Boot | 5. | Shaft | 6. | Spider assembly |
| 7. | Snap ring | 8. | Slide joint housing | 9. | Dust shield |
| 10. | Circular clip | Wheel side |
