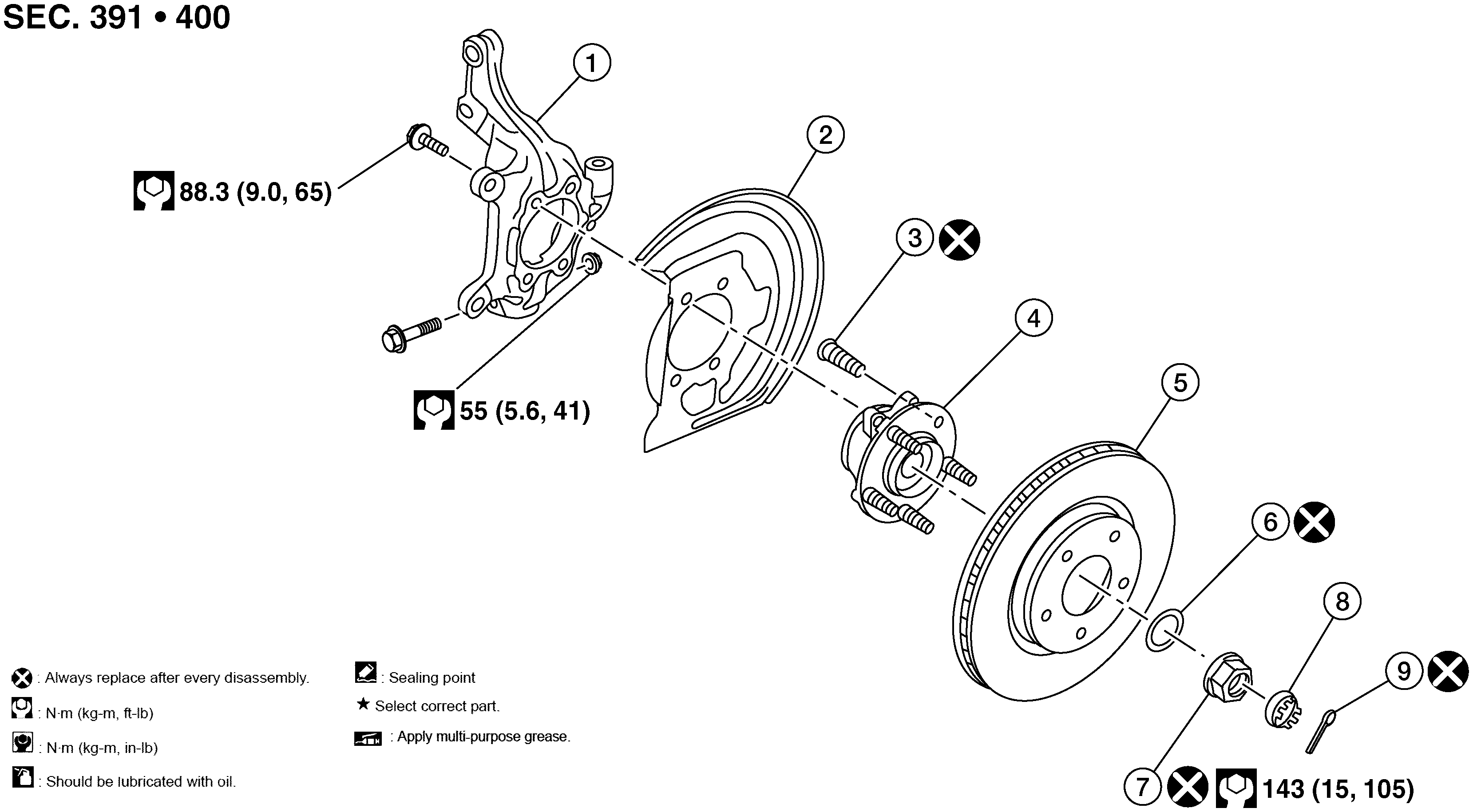

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Steering knuckle |
2. |
Splash guard |
3. |
Wheel stud |
| 4. |
Wheel hub and bearing |
5. |
Disc brake rotor |
6. |
Washer |
| 7. |
Wheel hub lock nut |
8. |
Nut retainer (MR16DDT models) |
9. |
Cotter pin |
