Engine Control System (Introduction And Wiring Diagrams)
›
System Description
›
System
›
Starter Motor Drive Control
›
System Description
›
System Diagram
System Diagram

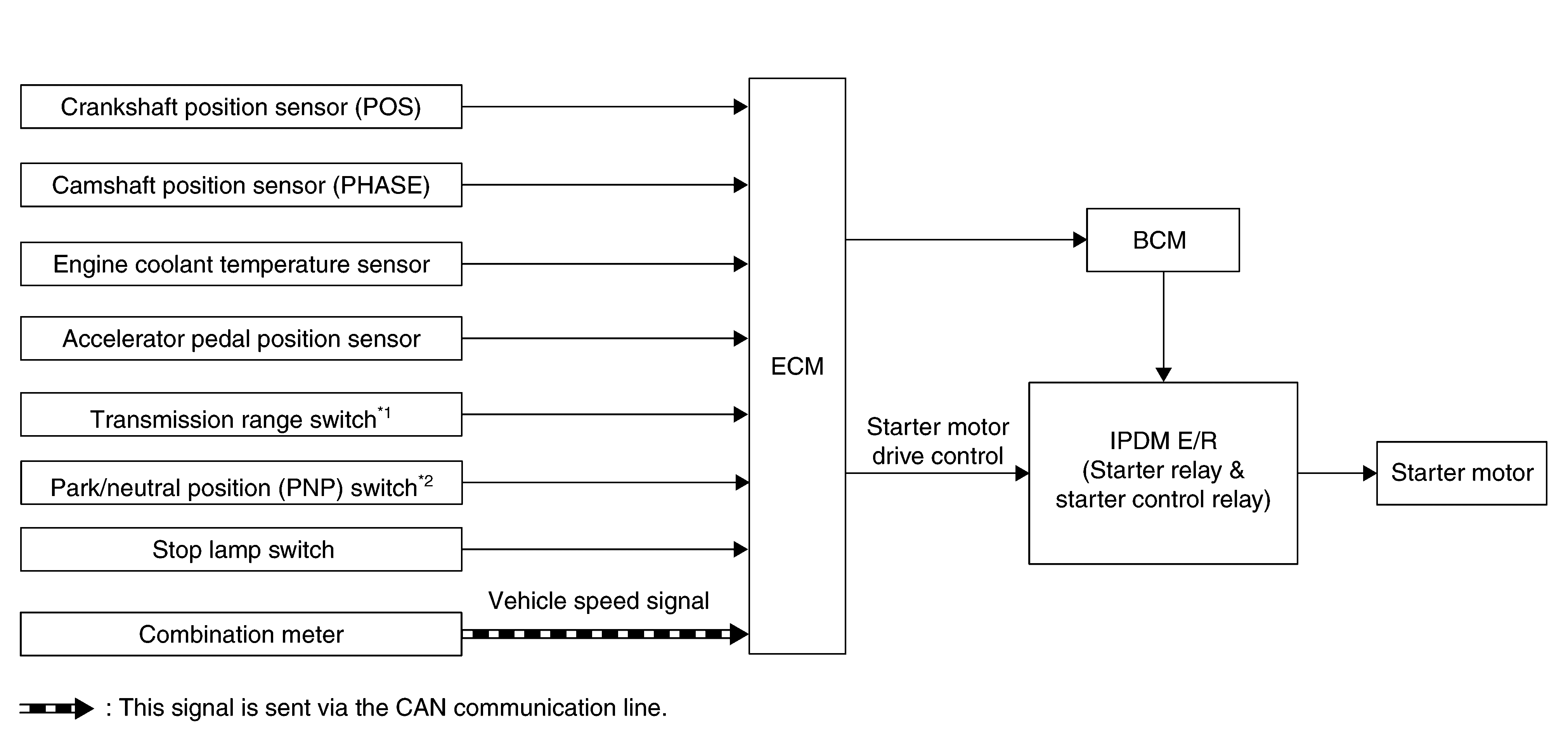

Fig 1: Starter Motor Drive Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*1: CVT models
*2: M/T models
Courtesy of NISSAN NORTH AMERICA, INC.
