Removal And Installation: Removal

  1. Remove NATS antenna amp. Refer to REMOVAL AND INSTALLATION .
  2. Release the push-button ignition switch pawls and remove the push-button ignition switch (1).

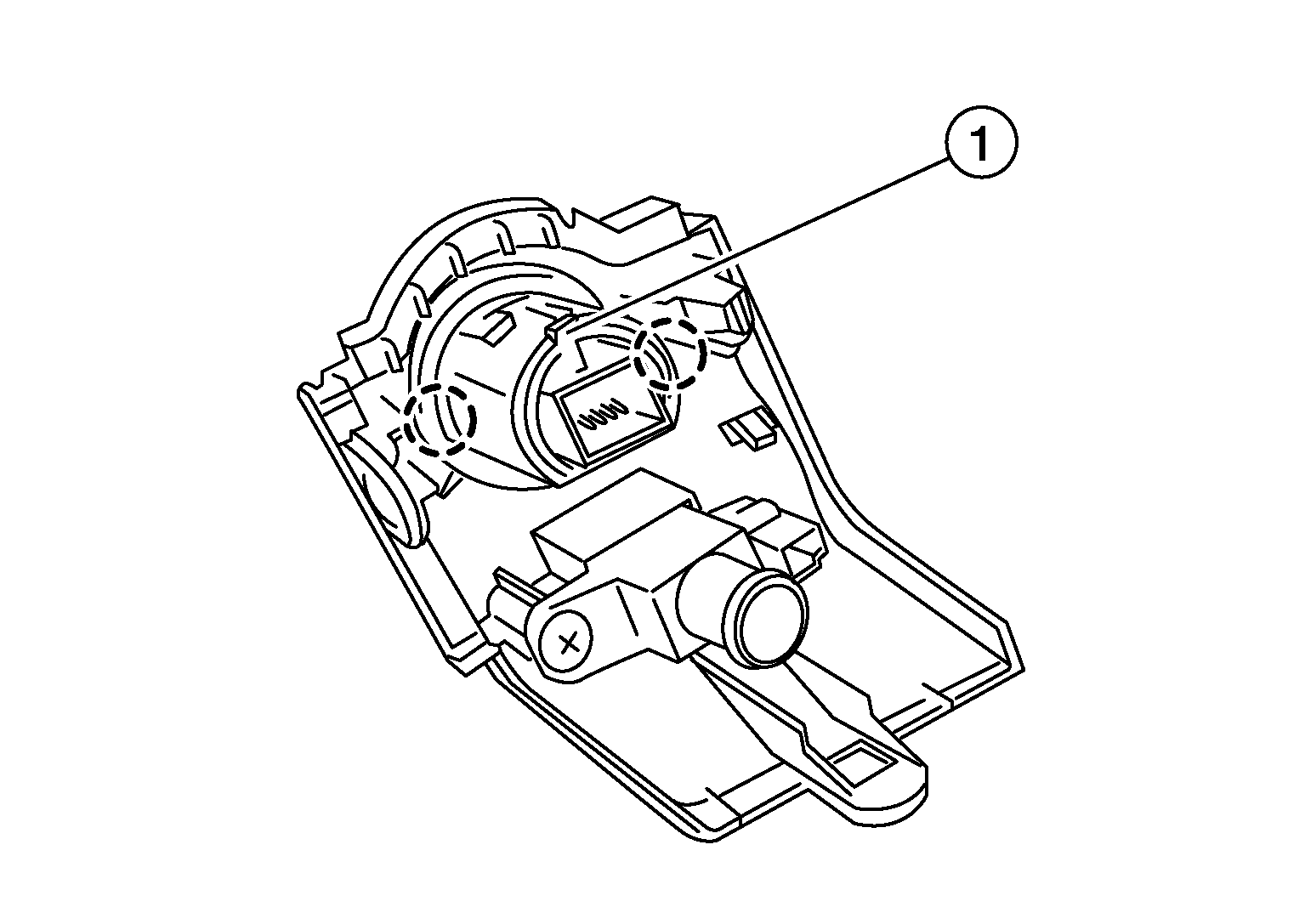

    Fig 1: Push-Button Ignition Switch (1)
    GNSAWMIA1566ZZ-566Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl
