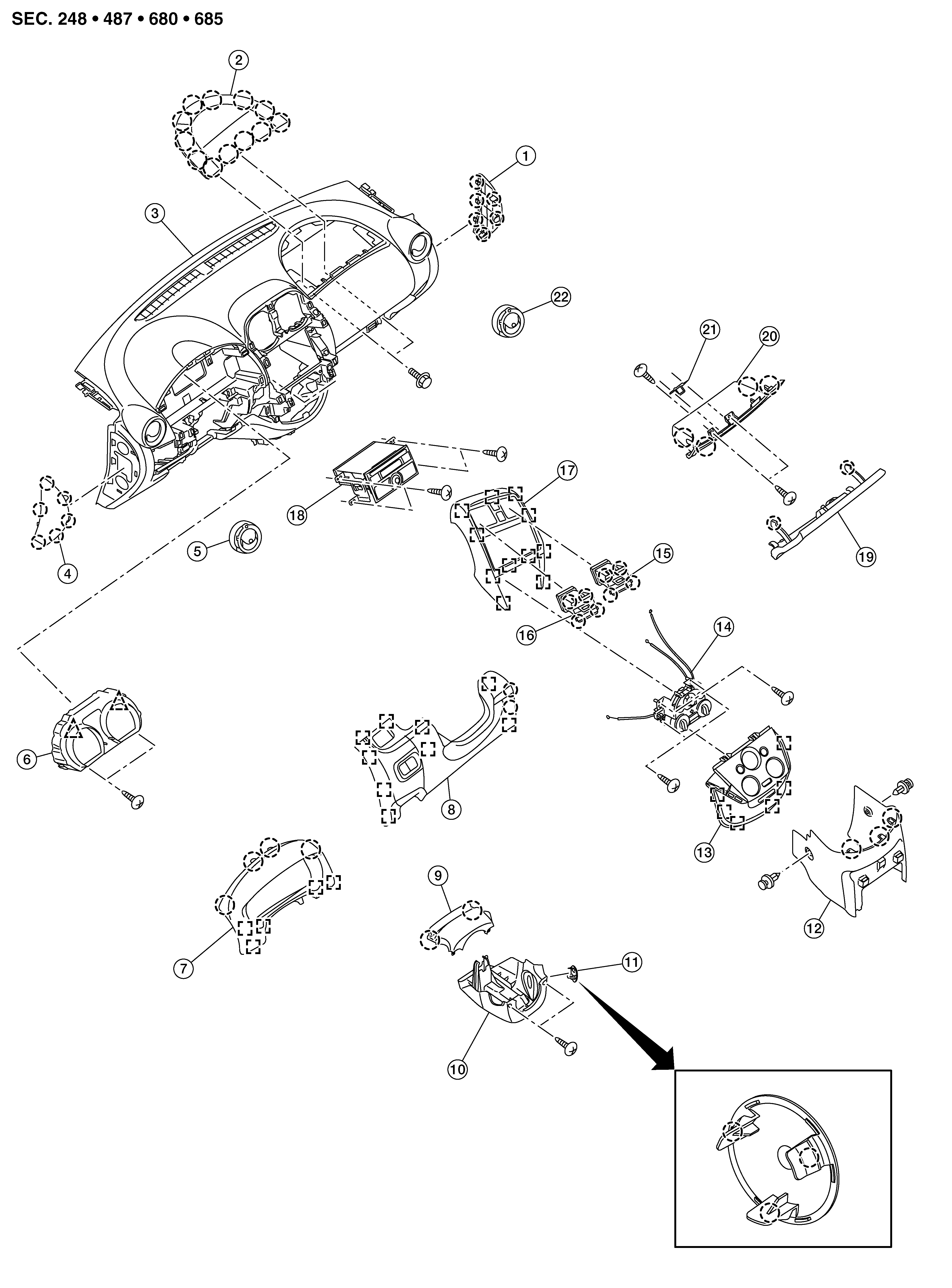

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Instrument side finisher (RH) | 2. | Passenger air bag module | 3. | Instrument panel assembly |
| 4. | Instrument side finisher (LH) | 5. | Side ventilator grilles (LH) | 6. | Combination meter |
| 7. | Cluster lid A | 8. | Instrument lower panel LH | 9. | Steering column upper cover |
| 10. | Steering column lower cover | 11. | Steering lock escutcheon | 12. | Center console lower |
| 13. | Front air control finisher | 14. | Front air control | 15. | Center ventilator grille (RH) |
| 16. | Center ventilator grille (RH) | 17. | Cluster lid C | 18. | Audio unit/AV control unit |
| 19. | Glove box lid | 20. | Glove box assembly | 21. | Glove box striker |
| 22. | Side ventilator grille (RH) | Pawl | Clip | ||
| Metal clip |
