Work Procedure

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

RECORD REGISTRATION CODE FOR REPLACEMENT AV CONTROL UNIT
1. Refer to the replacement AV control unit's label located on the top of the AV control unit.

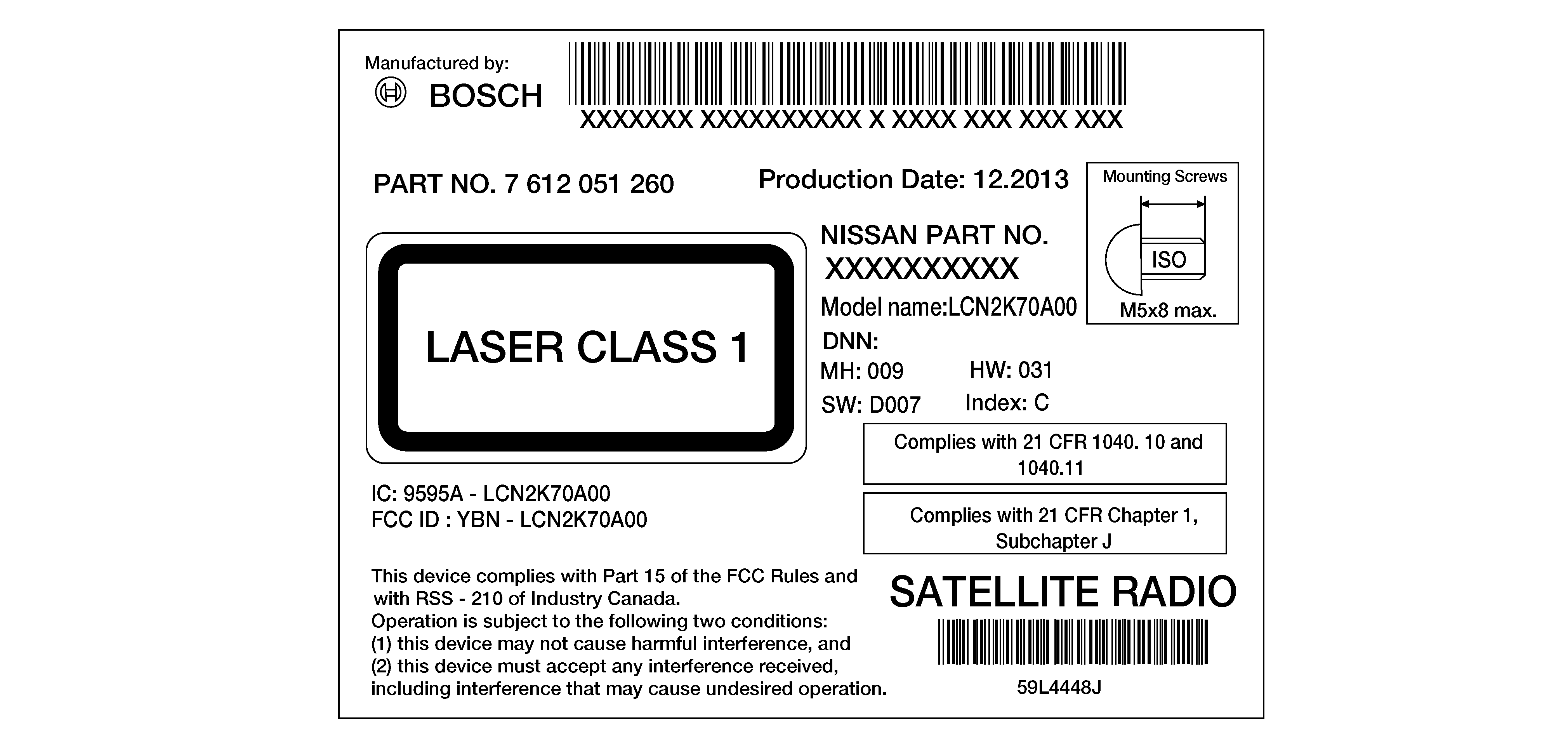

  Fig 1: AV Control Unit's Label On Top Of AV Control Unit
  Courtesy of NISSAN NORTH AMERICA, INC.
2. Create a registration code to supply to NISSAN Owner Services by combining the last 9 digits of the NISSAN PART NO. (1) and the first 7 digits of the bar code number (2).

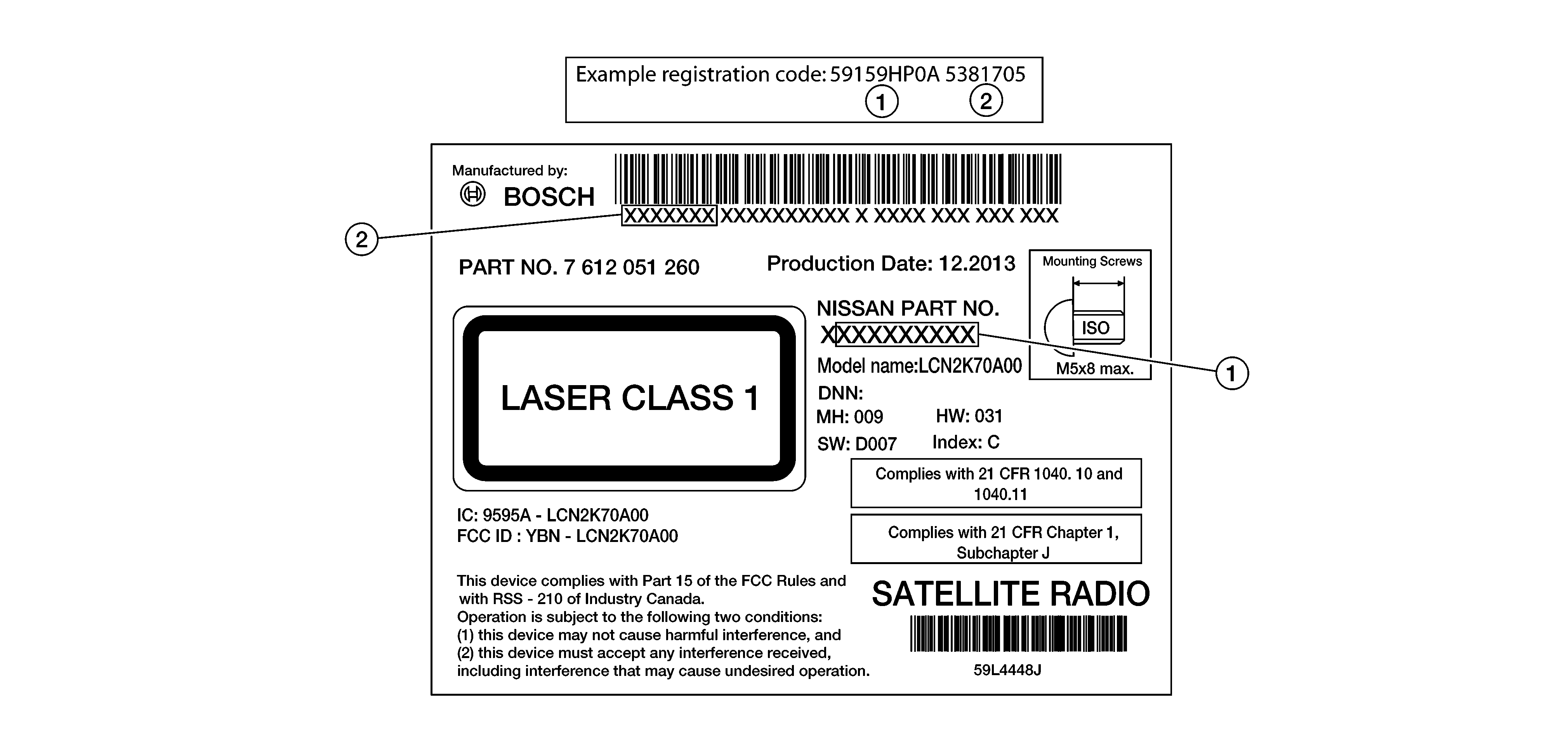

  Fig 2: Nissan Part No. 1 And Bar Code Number
  Courtesy of NISSAN NORTH AMERICA, INC.
3. Record the registration code.
GO TO 2.

REGISTER REPLACEMENT AV CONTROL UNIT

Register the replacement AV control unit by contacting NISSAN Owner Services. Refer to TSB.

GO TO 3.

OPERATION CHECK

Verify that the AV control unit "APPS" function operates normally.

Work End.
